Quick Details
-
Brand Name:
-
DB
-
Model Number:
-
TB
-
Dimension(L*W*H):
-
26500mm X 2300mm X 3200mm
-
Weight:
-
25000KGS
-
Certification:
-
CE/ISO9001
-
Heating type:
-
Electric/Thermo oil / Steam Gas (based on users)
-
Glue Type:
-
Water based/solvent based acrylic bopp adhesive tape Coating Machine
-
Coating head:
-
Combinations for Comma coating and Gravure coating
-
Humidification Systems:
-
Optional
-
Laminating funtion:
-
Optional
-
Double layers cycle drying oven:
-
Optional
-
Main Motor Brand:
-
ABB
-
Touch screen:
-
Simens
-
Speed:
-
Fast type black bopp packing tape Coating Machine
-
Automatic:
-
black bopp packing tape Coating Machine
Quick Details
-
Voltage:
-
380V/3P
-
Power:
-
176KW
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DB
-
Model Number:
-
TB
-
Dimension(L*W*H):
-
26500mm X 2300mm X 3200mm
-
Weight:
-
25000KGS
-
Certification:
-
CE/ISO9001
-
Heating type:
-
Electric/Thermo oil / Steam Gas (based on users)
-
Glue Type:
-
Water based/solvent based acrylic bopp adhesive tape Coating Machine
-
Coating head:
-
Combinations for Comma coating and Gravure coating
-
Humidification Systems:
-
Optional
-
Laminating funtion:
-
Optional
-
Double layers cycle drying oven:
-
Optional
-
Main Motor Brand:
-
ABB
-
Touch screen:
-
Simens
-
Speed:
-
Fast type black bopp packing tape Coating Machine
-
Automatic:
-
black bopp packing tape Coating Machine
DBTB-800 blue bopp tape coating machine/blue bopp tape making machine/blue bopp tape coater
Application:
DBTB-800 blue bopp tape coating machine/blue bopp tape making machine/blue bopp tape coater
is widly used for making BOPP Tape , Bopp Transfer tape ,Bopp box sealing tape , Adhesive tape , Masking tape , Electrical insulation tape ,Reflective tape ,Stationary tape, Kraft paper tape , and so on .
Suitable Material:
DBTB-800 blue bopp tape coating machine/blue bopp tape making machine/blue bopp tape coater is mainly suitable for reel -type substrate coating production.The material such as :
Paper ,Opp ,Alumium,CPP ,PET ,Bopp ,Fabric ,ETC .
Characteristics:
1. Heating oven could be opened by hydraulic,The guide roller in the oven was driving synchronous with host machine
2. HMI ,Man and machine face to face interface touch screen.
3. High precision auto edge position correction system,Rewing roll will have high precision edge neat
4. With inflammable gas detecting alarm (select for solvent glue );
5. NON-Stop Machine station(Optional)
6. Double layers cycle drying oven, Both sides coating could be finished in One step. (Optional)
7. Each heating section is controlled independent. .
7. Current output type temperature control system makes heating quicker and electricity saving
8. Rewinding controlled by auto diminishing taper tension,it could avoid the materials damaged
9 . Machine should be installed on firmly cement ground, need no special foundation, fix expansion bolt on key parts
Main Specification
|
Common matters |
Raw material |
PET, BOPP, PVC, PE, PI,Fabric ,Copper foil,Aluminum foil, etc., (User Advice) |
|
Machine speed |
100-150m/min below |
|
|
Tasks speed |
80-120m/min below |
|
|
Raw material width |
500~1800mm |
|
|
Guide Roll |
Φ100~120mm Anodizing or hard chrome surface treatment
|
|
|
Control motor |
AC Vector Motor |
|
|
Machine color |
MUNCELL NO. F-299002 (User Advice) |
|
|
WINDER |
Unwinding & rewinding part |
2-axis turrent type or 1-axis center type |
|
Reel outer Dia |
Φ600, Φ800, Φ1000, Φ1200mm |
|
|
How to connect raw material |
Automatic or manual connection |
|
|
Splicing type and direction |
Flying Arm(T/B), Tapeless(T/B) |
|
|
Air-Shaft fixing type |
3" Shaft + Adapter (AL or MC nylon) |
|
|
|
||
|
Dryer |
Chamber inner temperature |
Max. 200 °C |
|
Hot blow injection type |
Z-Nozzle |
|
|
Heating source |
Electric heater, gas burner, Thermal Oil, Strea heating |
|
|
Unit Dryer length |
1.8m , 2.2m, 3m, 4m |
|
|
|
||
|
Coating Head |
Developed unit |
There are Comma, Gravure coating method .(Mayer bar could be fixed follow Users ) |
MACHINE PICTURES:

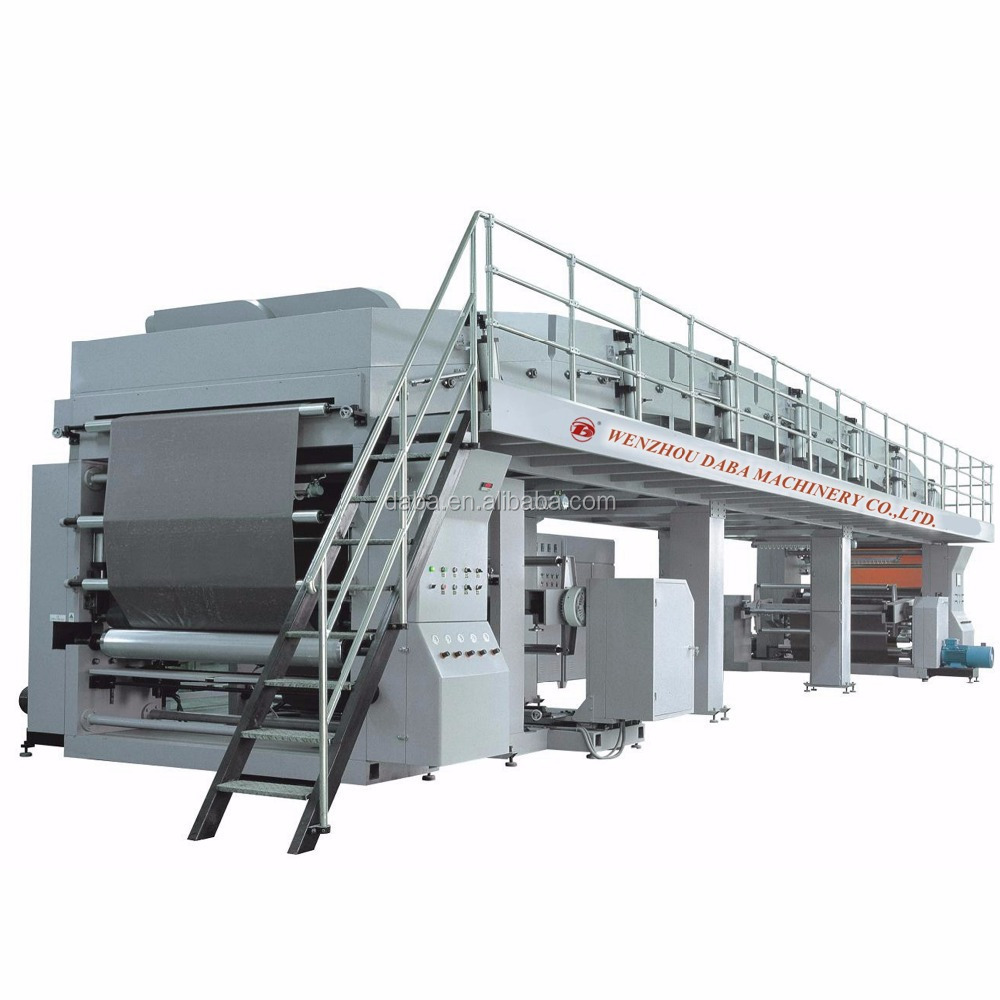

1. DBTB-800 blue bopp tape coating machine/blue bopp tape making machine/blue bopp tape coater
2. DBTB-800 blue bopp tape coating machine/blue bopp tape making machine/blue bopp tape coater PRODUCTS SAMPLES
3. DBTB-800 blue bopp tape coating machine/blue bopp tape making machine/blue bopp tape coater SPARE PARTS
4. DBTB-1300 black bopp packing tape making Machine/black bopp packing tape Coating Machine/black bopp packing tape Coater WORKSHOP
5. OUR FACTORY
OUR SERVICE FOR DBTB-1300 black bopp packing tape making Machine/black bopp packing tape Coating Machine/black bopp packing tape Coater
1. Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .
2. Shipping Service
DABA COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
DABA COMPNAY copperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.
3 . Installation Services
Installation Services are available with all DABA Company machines.DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines . But the buyer need to surpply the round trip tickets ,food ,hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factory to learn how to operate machines.DABA Company technician will teach and train the lerners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken ,Just a pictures or a videos.
The new free parts will reach within 3-7 Express working days .
