Quick Details
-
Refresh Rate:
-
60HZ
-
Viewing Angle:
-
80°/80°(L/R) 80°/80°(U/D)
-
Input Voltage:
-
DC7~24V
-
Power Consumption:
-
≤8W
-
Power Connector:
-
DC or F970 battery,LP-E6 battery
-
Working Temperature:
-
-20°C~55°C
-
Storage Temperature:
-
-30°C~65°C
-
Unit Size:
-
136Lx75.7Hx25.2D (mm)
-
Unit Weight:
-
142.5g
-
Pixel Pitch:
-
0.0571 (H) x 0.019 (W) mm
-
Certification:
-
FCC
Quick Details
-
Screen Size:
-
5inch
-
Brand Name:
-
Feelworld
-
Place of Origin:
-
Fujian, China
-
Refresh Rate:
-
60HZ
-
Viewing Angle:
-
80°/80°(L/R) 80°/80°(U/D)
-
Input Voltage:
-
DC7~24V
-
Power Consumption:
-
≤8W
-
Power Connector:
-
DC or F970 battery,LP-E6 battery
-
Working Temperature:
-
-20°C~55°C
-
Storage Temperature:
-
-30°C~65°C
-
Unit Size:
-
136Lx75.7Hx25.2D (mm)
-
Unit Weight:
-
142.5g
-
Pixel Pitch:
-
0.0571 (H) x 0.019 (W) mm
-
Certification:
-
FCC
Display Spec.
| Model | F5 |
| Screen Size | 5" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.0571 (H) x 0.019 (W) mm |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
| 1 X DC Output | DC Output |
Audio
| Audio | Stereo Headphone |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
General
| Input Voltage | DC7~24V |
| Power Consumption | ≤8W |
| Power Connector | DC |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | ¼-20 thread points |
| Unit Size | 136Lx75.7Hx25.2D (mm) |
| Unit Weight | 142.5g |
Advanced Features
| * Brightness Histogram |
| * Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
| * False Colors |
| * Zebra Exposure (1-100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
| * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| * Color Temperature Adjustment |
| * Nine Grid (Zoom one of the images to realize the full screen) |
| * Zoom (4X, 9X, 16X) |
| * Aspect Ratio |
| * Pixel to Pixel |
| * Zoom All |
| * U/D Zoom |
| * L/R Zoom |

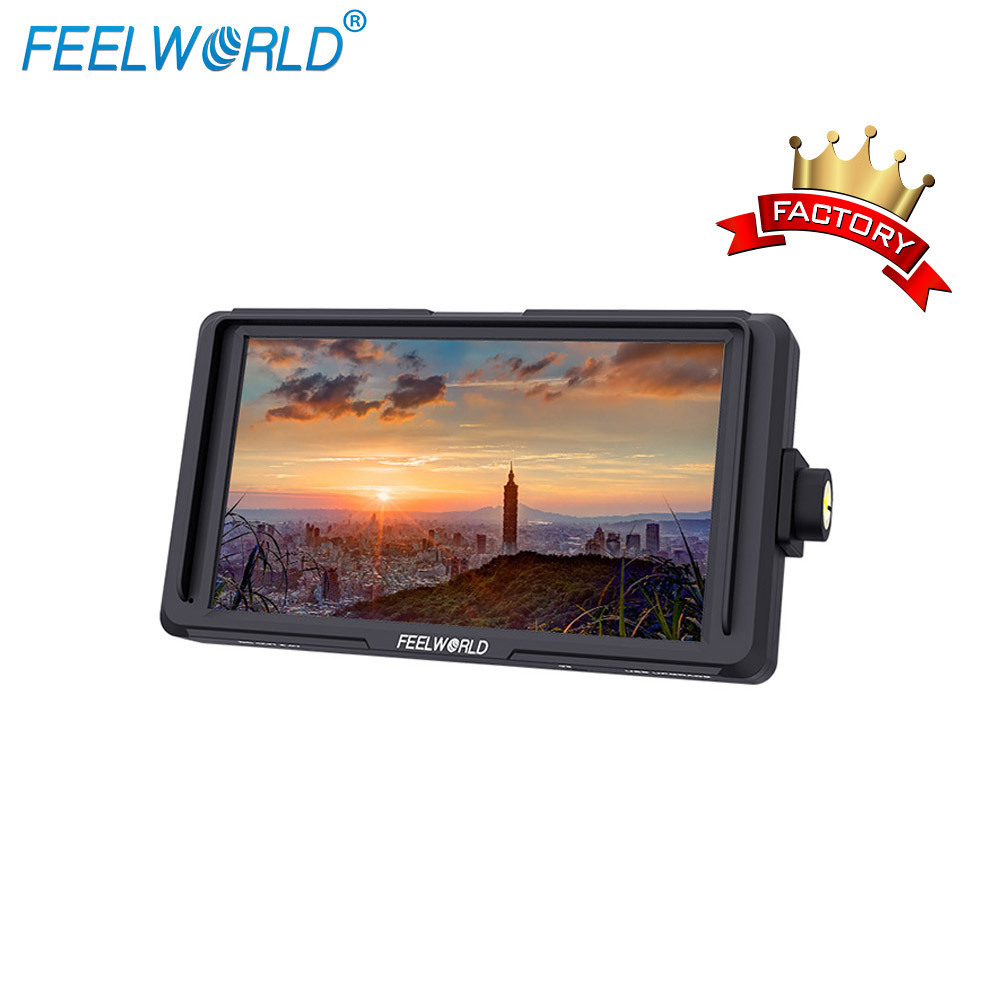

1080p 5 inch full hd field hdmi small lcd monitor with DC output
F5 data sheet
Display Spec.
| Model | F5 |
| Screen Size | 5" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.0571 (H) x 0.019 (W) mm |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
| 1 X DC Output | DC Output |
Audio
| Audio | Stereo Headphone |
HDMI Input/ Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
General
| Input Voltage | DC7~24V |
| Power Consumption | ≤8W |
| Power Connector | DC |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | ¼-20 thread points |
| Unit Size | 136Lx75.7Hx25.2D (mm) |
| Unit Weight | 142.5g |
