Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100*800*1020mm
-
Weight:
-
150 kg
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
drum poultry feed mixer for sale south africa
-
Capacity:
-
90L
-
Tank Speed(r/min):
-
12-13
-
Main Shaft Speed(r/min):
-
82-84
Quick Details
-
Max. Capacity:
-
90L
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Strongwin
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100*800*1020mm
-
Weight:
-
150 kg
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
drum poultry feed mixer for sale south africa
-
Capacity:
-
90L
-
Tank Speed(r/min):
-
12-13
-
Main Shaft Speed(r/min):
-
82-84
Drum poultry feed mixer for sale south africa
China professional Poultry Animal Feed Machine Manufacturer
Our Mission: Best machine for the world

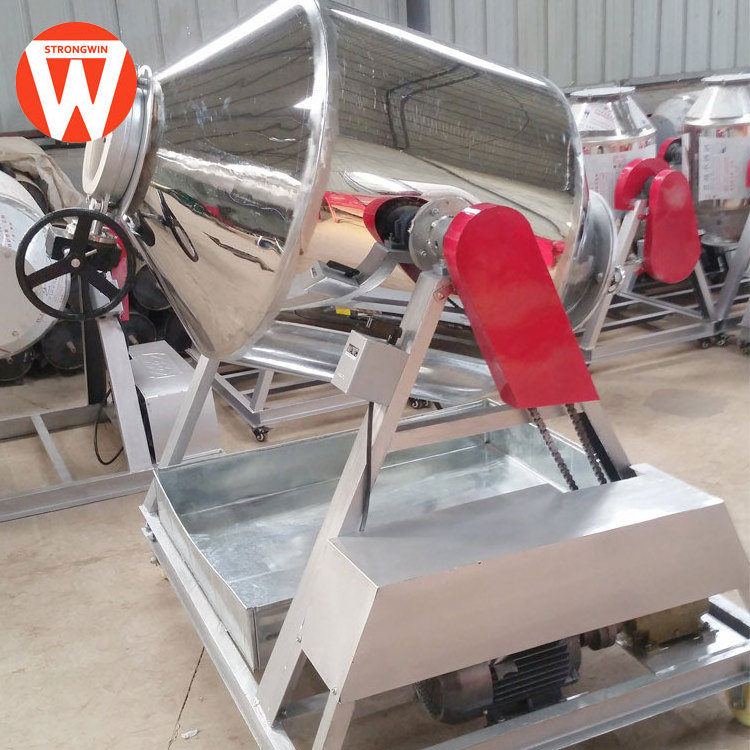

Description of small drum poultry feed mixer machine
The machine is a new, highly effective, fine container rotary type, stirring mixing equipment. Mainly used for uniform mixing powder. With a simple structure, safe operation, high mixing uniformity, good sealing, no residue and other excellent performance.
Main structure, working principle and technical parameters
A. The machine consists of stainless steel double cone tank, spindle assembly, gear assembly, gearbox assembly, motor, shelf and so on.
B. Working principle: Double cone cans 360 degree rotation, using the gravity of the material, so that the material in the vertebral body of the non-stop rolling mix. Reverse high-speed rotation of the mixing blade can break the knot of the material, while accelerating the material mixing.
Technical Parameters of drum poultry feed mixer machine
| Model | Dimension (mm) | Volume | Power | Tank Speed(r/min) | Main Shaft Speed(r/min) |
| SWD30-B | 950*750*950 | 60L | 220V 2.2kw | 12-13 | 82-84 |
| SWD50-B | 1100*800*1020 | 90L | 220V 3kw | 12-13 | 82-84 |
| SWD100-B | 1250*1000*1110 | 180L | 380V 3kw | 9-11 | 40-41 |
| SWD200-B | 1430*1190*1290 | 400L | 380V 3kw | 9-11 | 40-41 |
| SWD300-B | 1510*1210*1320 | 490L | 380V 3kw | 9-11 | 40-41 |
Inside Structure
Security matters, technical requirements
1. The first time to use the machine, should be carefully read the instructions.
2. The volume of the material loaded shall not be more than 60% of the volume of the tank.
3.Check the gear chamber before starting whether to add lithium-based grease, gearbox whether to add gear oil.
4. The first time to use should be switched on for 10 minutes, check whether there are abnormal.
5. The motor must be protected earth wire.
6. No drunken, pregnant women and minors can operation.
The drum type feed mixer machine have been succeed export to: Thailand, Indonesia, Malaysia, Philippines, Vietnam, Laos, Myanmar, Cambodia, Nepal, Bangladesh, Pakistan, India, South Korea, Japan, Nigeria, Bulgaria, Tanzania, Morocco, Egypt, Algeria, Sudan, Mali, Congo, Kenya, Ghana, south Africa, Swaziland, Greece, Israel, French, Italy, Hungary, Romania, Finland, England, Saudi Arabia, Georgia, Uzbekistan, Russia, Canada, America, Haiti, Honduras, Botswana, Ecuador, Trinidad and Tobago, Malawi, Brazil, Chile, Argentina, Bolivia,Australia, New Zealand, Fiji, etc.
Welcome Contact Us For More Information !
