Quick Details
-
Screw Speed (rpm):
-
55 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIAMEI
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
35(L)*1.5(W)*2(H)
-
Power (kW):
-
75
-
Weight:
-
16000 KG
-
Product Type:
-
pp monofilament/ HDPE yarn making
-
usage:
-
for rope, twine, net, binding etc
-
electronics:
-
china and imported
-
color:
-
bule/ white
-
raw material:
-
polypropylene, polyethylene, pa6 pa66
-
control system:
-
PLC with touch screen
-
Name:
-
hdpe monofilament yarn extruder
-
Other name:
-
nylon monofilament extruder
-
Keywords:
-
nylon monofilament extruder machine
-
Product:
-
monofilament extrusion machine
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
65 mm
-
Screw Speed (rpm):
-
55 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIAMEI
-
Voltage:
-
380V 50HZ 3Phase(Customized)
-
Dimension(L*W*H):
-
35(L)*1.5(W)*2(H)
-
Power (kW):
-
75
-
Weight:
-
16000 KG
-
Product Type:
-
pp monofilament/ HDPE yarn making
-
usage:
-
for rope, twine, net, binding etc
-
electronics:
-
china and imported
-
color:
-
bule/ white
-
raw material:
-
polypropylene, polyethylene, pa6 pa66
-
control system:
-
PLC with touch screen
-
Name:
-
hdpe monofilament yarn extruder
-
Other name:
-
nylon monofilament extruder
-
Keywords:
-
nylon monofilament extruder machine
-
Product:
-
monofilament extrusion machine
PP HDPE Nylon PET fishing net monofilament yarn extruding machine/ rope making production line/ extruder
polypropylene/ polyethylene monofilament yarn extruder machine/nylon yarn extruder machine mainly used for pp/ hdpe monofilament extrusion, the yarn is for 3 strands rope/ twine/ fishing, anti bird, insect, shade net/ sports net, safety net, mesh bag, fishing line , trimmer line , brush etc
PP HDPE NYLON monofilament is for extruding pp/ hdpe monofilament, from 0.06-3.5mm dia, high tenacity , good shape
1) manufacturing experience over 40 years , has net workshop use own extruder to make net , machine running over 20 years. Lot of china local users
2) low power consumption , famous brand electronic components
3) Fast asscmble and trainning , professional engineer7-10days
4) Easy operate , PLC control + touch screen
The yarn is widely used in hdpe fishing net, safety net, agriculture net, mesh bag, nylon fishing line , trimmer line etc
machine model
| Machine Model | Machine capacity | dia of screw | L/D | capacity |
| JM70 | 50-70KG/H | 70MM | 33:1 | 1-1.04tons/day |
| JM-90 | 80-130kg/hr | 90mm | 33:1 | 2.5-2.8tons/day |
| JM105 | 120-150KG/H | 105mm | 33:1 | 3.5-4tons/day |
Plastic yarn making process
automatic loading hopper--> extrusion part--> cooling water tank--> NO 1 drawing roller--> hot water tank--> NO2 drawing roller--> ( hot air oven+ NO3 drawing roller)--> auto winder
PP HDPE Nylon PET fishing net monofilament yarn extruding machine/ rope making production line

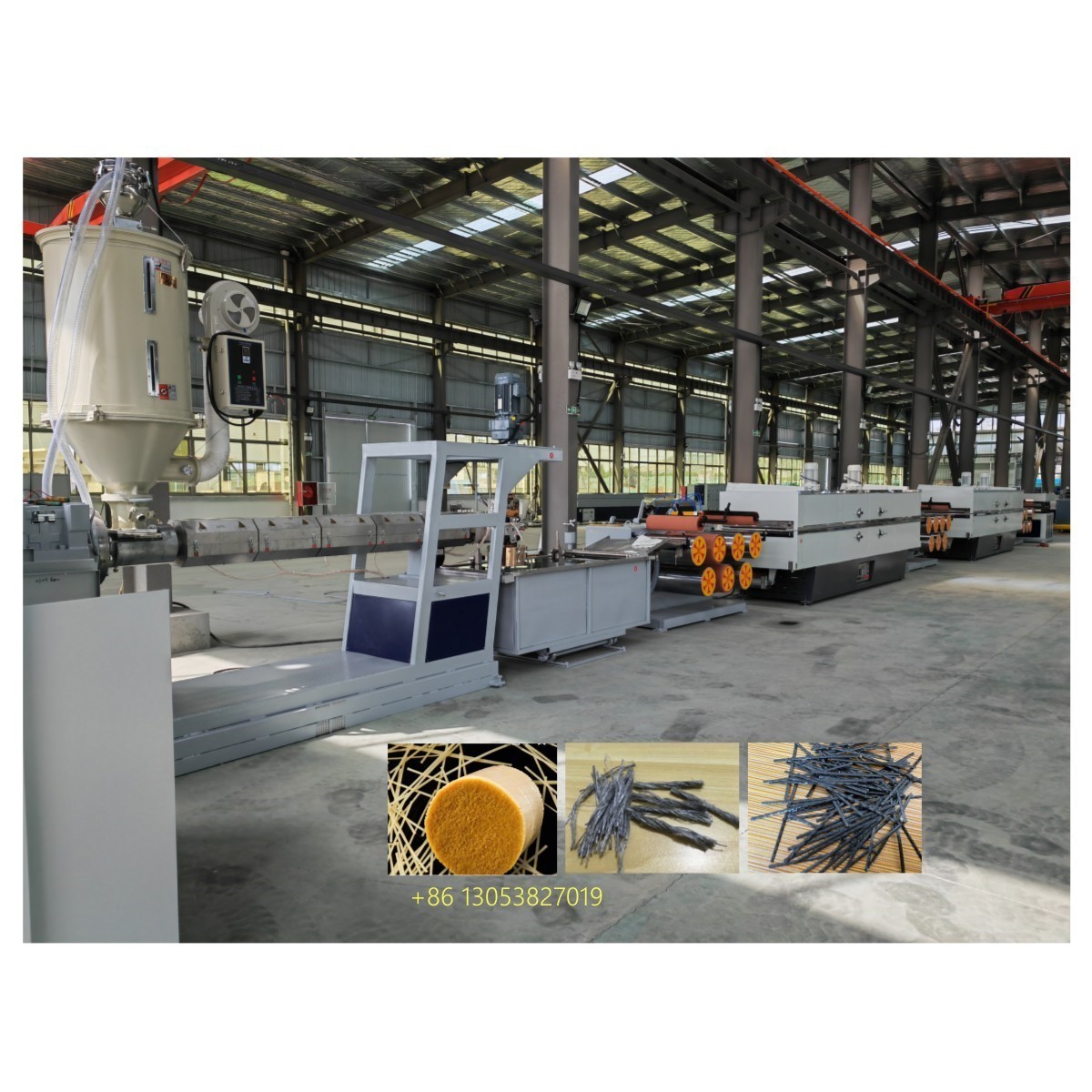

machine picture
PP HDPE Nylon PET fishing net monofilament yarn extruding machine/ rope making production line
nylon yarn extruder machine
|
Item |
JM-50 |
JM-65 |
JM-70 |
JM-80 |
JM-90 |
|
|
capacity |
0.4-0.8t |
0.8-1t |
1.2-1.8t |
1.5-2.5t |
2.5-3t |
|
|
Screw |
50mm |
65mm |
70mm |
80mm |
90mm |
|
|
Drawing ratio |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
|
|
Yarn usage |
Rope/ net( hail, bird, insect, wind )/ twine/ fishing line/ trimmer line/ pet brush yarn / broom yarn |
|||||
|
Total power |
70kw |
90kw |
100kw |
120kw |
140kw |
|
after-sales for nylon monofilament extruder machine
1. we arrange engineer to installing +trainning+ testing
2. we arrange spare parts quickily through express
3. fast installation, one week time
PP HDPE Nylon PET fishing net monofilament yarn extruding machine/ rope making production line
finished products
1. polypropylene/polyethylene : fishing net , rope, safety net, filter mesh, mesh bag etc
2. pet: bush , broom , brush( recycled)
embroidery thread, filter, sewing thread , zipper
3. nylon : trimmer line , fishing line , brush, mesh filter,
HDPE Nylon PET fishing net monofilament yarn extruding machine/ rope making production line
nylon yarn extruder machine
machine delivery
NYLON monofilament extruder machine
1. main mahcine parts with steel pallets
2. spares in wooden cartoon
our factory
P
Tainan jiamei machinery technology co.,ltd is specialized in plastic extrusion line, our main products are PP/ HDPE/ PET/ PA(nylon6, 66) monofilament extruder machine, pp danline , flat yarn, fibrillated yarn extruding machine. Our extruder is widely used in the industry field of rope/ fishing net/ fishing line/grass trimmer line, broom/ brush , mascara brush, carpet edge sewing, construction concrete fibre, raffia yarn, fabrillated yarn( flat yarn) etc
1. Machine Manufacturing years: over 40 years
2. Workshop area: 30 000square meters
3. Qty of workers: 150-200
4. Lot of local users in china
5. We have yarn production with own machine over 25 years
nylon yarn extruder machine
PP HDPE Nylon PET fishing net monofilament yarn extruding machine/ rope making production line
certificate
our company has got ISO, CE
related machine
1) twine twisting machine
2) rope twisting machine
Related machine
PP HDPE Nylon PET fishing net monofilament yarn extruding machine/ rope making production line
we have helped several client to do A~Z solutions , like plastic rope and twine making, webbing kintting , and concrete fiber making , weaving filter cloth , sewing yarn making line , let’s cooperate!
1) ring twister and two for one twister 2) rope making machine 3)spool winder 4) braiding machine 5)knitting needle loom 6)fiber cutting machine 7) net making machine 8) yarn twisting machine
