Quick Details
-
IP Rating:
-
80
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
15000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20~60
-
Product name:
-
Portable Lightweight Mini Lighting Trailer Mobile Light Towers
-
Telescopic Mast:
-
2.5m Manual lifting Telescopic mast with internal cable
-
Light Power:
-
150W
-
Feature:
-
Battery power, light adjustable, easy move
-
Battery Capacity:
-
DC12V , 60Ah
-
Luminous flux:
-
15000 Lumen
-
Protection grade:
-
IP65 waterproof
-
Usage:
-
Mobile lighting, emergency lighting, temporary lighting
-
Maximum lifting height:
-
2.5m ( can be customized)
-
Warranty:
-
1 year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OKAF
-
Model Number:
-
OK-PR04-LED
-
IP Rating:
-
80
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
15000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20~60
-
Product name:
-
Portable Lightweight Mini Lighting Trailer Mobile Light Towers
-
Telescopic Mast:
-
2.5m Manual lifting Telescopic mast with internal cable
-
Light Power:
-
150W
-
Feature:
-
Battery power, light adjustable, easy move
-
Battery Capacity:
-
DC12V , 60Ah
-
Luminous flux:
-
15000 Lumen
-
Protection grade:
-
IP65 waterproof
-
Usage:
-
Mobile lighting, emergency lighting, temporary lighting
-
Maximum lifting height:
-
2.5m ( can be customized)
-
Warranty:
-
1 year

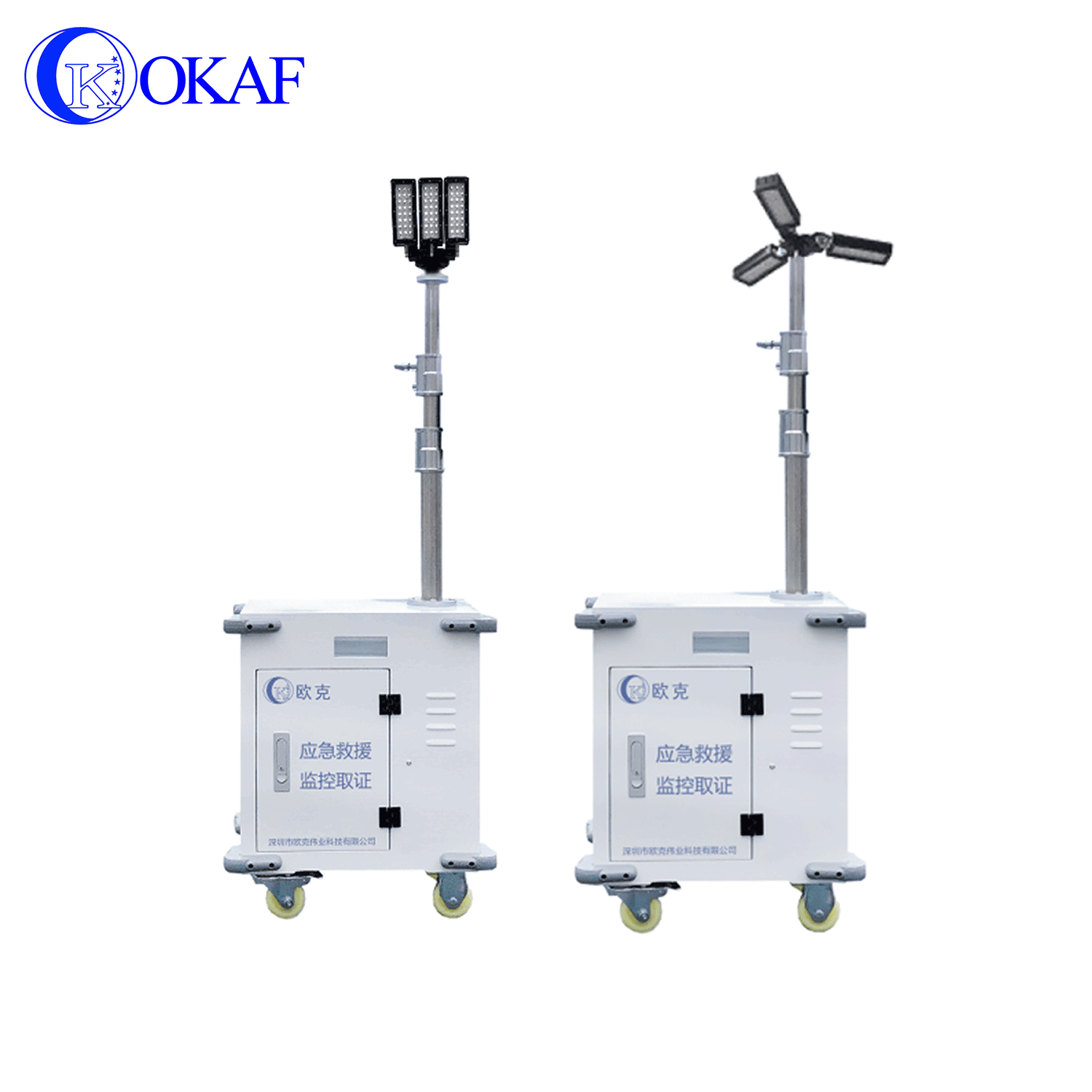

2.5m Manual Lifting Telescopic Mast Portable Lightweight Mini Lighting Trailer Mobile Light Towers
System components
OKAF mobile light tower composed of high speed trailer, ultra bright led lights,lifting system and battery power supply. Which is perfect for using in any place where there is difficult to get power. It is strong mobility,especially for mobile emergency lighting for fire fighting rescue, construction sites and kinds of events. Battery power could make the system runs for more than 12 hours.
Feature of Mobile Light Tower
♦ No need to set points and wiring, reduce the cost of deployment.
♦ No need to disassemble,easy to use and operate.
♦ Rapid deployment. One can complete the system within 2 minutes to meet emergency need.
♦ Humanized design and easy operation . Manual lifting telescopic mast with built in cable.
♦ High brightness, wide range lighting. Use 50W super bright led lights, lamp pole 2.5 meter, Large irradiation area.
♦ Thickened metal body, galvanized rust-proof bracket, more durable equipment.
♦ System Waterproof. The trailer body and led lights protection grade up to IP65 waterproof.
♦ Built in battery. Battery capacity 60Ah , 80Ah, 100Ah optional.
♦ Alternate charging optional,support solar and mains 220V input charging.
Application:
It is suitable for outdoor lighting such as emergency rescue, rescue and disaster relief, flood control and construction operations. Construction lighting in electric power, railway, fire protection, petrochemical, mining, coal and other industries. Temporarily illuminate areas in public places such as airports, docks, stadiums, squares, roads, and market projects.
Technical data
|
Tower Body color |
White(could be customized) |
|
Wheels |
Steady wheels with brake |
|
Light power |
150W (customized according to requirements) |
|
Luminous flux |
15000 lm |
|
Capacity of battery |
12V·60A |
|
Battery type |
Rechargeable lithium battery |
|
220V AC/50HzP Power supply |
Support |
|
Battery life |
>12h (according to battery capacity) |
|
Project |
Test conditions |
|
Telescopic mast height |
2.5 meter ( could be customized according to requirements) |
|
Wind power |
Class 8 winds work normally Class 12 winds are not destroyed |
|
Low temperature storage |
-55° |
|
Low temperature work |
-40° |
|
High temperature storage |
70 ° |
|
High temperature work |
5 5° |
|
H umidity |
Less than 90%( temperature 25°) |
|
Rain |
6mm/min continuous 1h |
|
Rated load |
Lifting ≤120N |
|
Safety |
Self-locking at any height |
