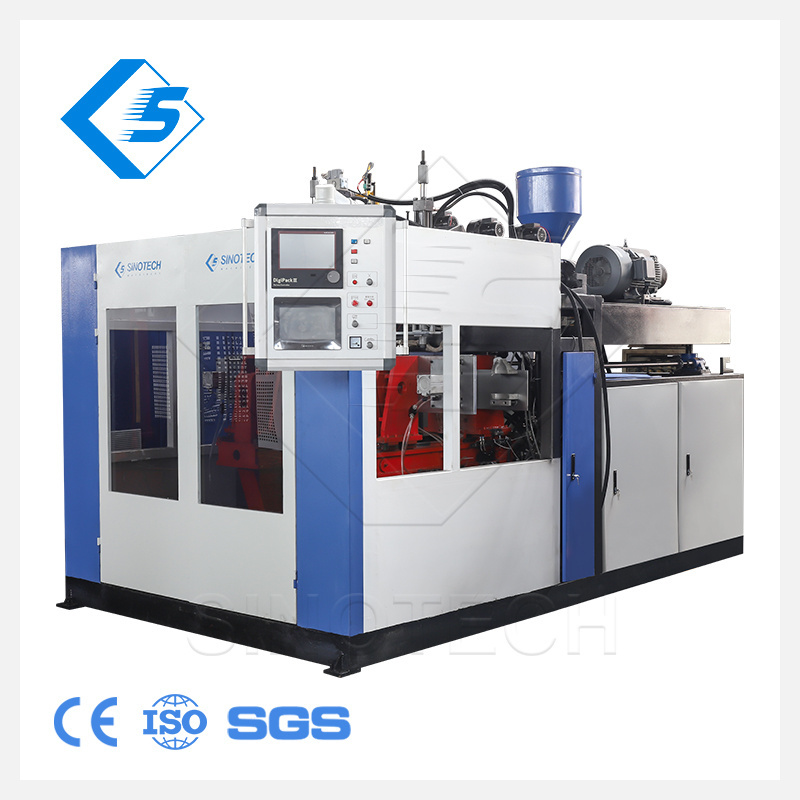

ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine
ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine
ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine
ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine
ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine
ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine
ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine
ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine

ice lolly pop tube ce pops soft fruit jelly packaging blow blowing molding machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $59800
≥2 Sets
US $55800
≥3 Sets
US $50800
≥4 Sets
US $48800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Sino-Tech
Year:
2022
Voltage:
Customized
Dimension(L*W*H):
5.5x5.5x3.8m
Hollow part volume:
15L/30L
Screw L/D Ratio:
25
Screw diameter (mm):
90 mm
Screw Heating Power(kW):
25 kW
Extruder Motor Power(kW):
65 kW
Mold Platen Size(Width)(mm):
660 mm
Mold Platen Size(Height)(mm):
680 mm
Air Pressure(MPa):
1.0 MPa
Air Comsumption(m³/min):
16 m³/min
Die Head Heating Power(kW):
16 kW
Accumulator Capacity(L):
0 L
Power (kW):
120
Weight (T):
21
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Free spare parts:
Yes
Online support:
Yes
After-sales Service Provided:
commissioning and trainingEngineer available to offer Field installat
Clamping system:
Toggle arm
Available production:
10-30L plastic barrels jerry cans
Plasticizing capacity:
200kg/H
Screw diameter:
90mm
View stripe:
Yes

Quick Details

Clamping Force (kN):
270
Output (kg/h):
200 kg/h
Place of Origin:
Jiangsu, China
Brand Name:
Sino-Tech
Year:
2022
Voltage:
Customized
Dimension(L*W*H):
5.5x5.5x3.8m
Hollow part volume:
15L/30L
Screw L/D Ratio:
25
Screw diameter (mm):
90 mm
Screw Heating Power(kW):
25 kW
Extruder Motor Power(kW):
65 kW
Mold Platen Size(Width)(mm):
660 mm
Mold Platen Size(Height)(mm):
680 mm
Air Pressure(MPa):
1.0 MPa
Air Comsumption(m³/min):
16 m³/min
Die Head Heating Power(kW):
16 kW
Accumulator Capacity(L):
0 L
Power (kW):
120
Weight (T):
21
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Free spare parts:
Yes
Online support:
Yes
After-sales Service Provided:
commissioning and trainingEngineer available to offer Field installat
Clamping system:
Toggle arm
Available production:
10-30L plastic barrels jerry cans
Plasticizing capacity:
200kg/H
Screw diameter:
90mm
View stripe:
Yes
Product Description

STB-30L Continous Extrusion Blow Molding Moulding Machine

Machine Features：
1. Special design for 15-30L HDPE,HMWHDPE stacking barrels,bottles...
2. High Speed with 100-150pcs/hr
3. Hydraulic and electric rhybrid power design,it makes the machine running more speed and more energy saving
4. Big clamping force up to 35T making the product joint line looks more fluently
5. Full Servo system control
6. Simple structure in linear type ,easy in installation and maintation.
7. With robot arm take out the finished product
8. One to three multi-layers can be choosen
9.Single station and double station can be choosen
10.Single die-head and double die-head can be choosen
Final Product
Specification
Technical Specification
Specifications
STS-30L
STSII-30L
Max.container capacity
L
30
15
Machine diameter(L*W*H)
M
4.4*6.4*3.6
6.1*6.4*3.6
Total weight
T
12
18
Die head
Number of die head
SET
1,2,3,4
1,2,3,4
Number of heating zone
Zone
3
3
Die head heating power
KW
12
13
WDS system control
Point
B&R100/300 points
B&R100/300 points
With view stripe for option
Extruder system
Main screw diameter
mm
90
90
Screw L/D ratio
L/D
25
25
Melting capacity
Kg/h
200
200
NO.of heating zone
Zone
4
4
Heating power
Kw
24
24
Extruder motor power
KW
55
55
Clamping Unit
Single station
Max.space between Platen
mm
450-950
450-950
Platen size
mm
680*660
680*660
Clamping Unit
KN
270
270
Control system
Control system
Brand
B&R(Austria)
B&R(Austria)
Wall thickness control
Brand
B&R100/300Points
B&R100/300Points
Power
Total power
KW
94
90
Air pressure
Mpa
10
10
Air consumption
m³/h
2.2
2.2
Water pressure
Mpa
4
4
Cooling water consumption
m³/h
18
18
Average energy consumption
KW
70
70
Details Images
01 Clamping System

1. Latest toggle type clamping system.
2. Big platen size capable to carriage more bigger size moulds.
3. Strong enough clamping force can make the bottles joint line more perfect and smooth.
4. All casting process ensure the clamping system longer life and more precision.
5. More precision carriage stroke and easy to adjust.6.Safety protection device for operator. Good material used for the die head
02 Electrical System



1. All our electrical components areusing international top brands. Such as Japan Mitsubishi,France Schneider, ABB from Europe, Omron reply, Taiwan delta servo drive controller, Italian Gefran transducer,..
2. Electrical cabinet equipped withcooling fans for temperature adjust.
3. CE standard.
03 Control System

Controller Panel

1. Colorful screen display with English.Technical setting date saving system 100 points parison controller, to make sure even thickness of finished product.
2. Optimized switches, easily operation.
3. Latest Wisetech Intelligent control system easy operation.
4. Parison control MOOG 100 points precisionto control the wall thickness.

Core Control System

5. Production tectonicsand parameter saving for 20 moulds.
6. Professional engineer setting pages forproblem diagnosis.
7. Short-cut key board & emergency stopfor safety production.
8. Aluminum cantilever operation boxand easy adjustment.
9. Remote technical support & program
0 4 Extrusion System

Extrusion System

1. High quality hardness bimetallic screw &barrel for PP,PE,HDPE,PVC,PC... high plasticizing and longer life.
2. The extrusion motor adopt famous brand GermanySiemens to ensure the heating result.
3. Pre-heating with intelligent protection for screw and motor

Air-blowing needle

4. Heater is adopting high quality ceramic heating technology.
5. Screen filter is optional for small or light weight bottles.
6. Reasonable head runner design for color change quickly.
7. MITSUBISHI Invertor controlling frequency of screwand reducer.
05 Hydraulic System
1. Latest hydraulic oil tank design for smooth running of all hydraulic parts.
2. Hydraulic motor we choose to use servo motor.Servo motor energy saving 50% more than normal motor and Low noise and increase working life of hydraulic units.
3. We choose SUMITOMO pump and YUKEN valve as thekey part of hydraulic system to ensure the performance reliable and running smooth of the machines.
4. Composed of motor, pump, pressure regulating valve block,reversing valve blocks, cylinders and oil chillers.
5. Optimized hydraulic design to adopt pressure, flow and time 3 factors to control action precision and smoothness.
6. Platen moving cylinders with mechanical shuttle valve toreduce impact force at end position.
7. High stationaryand reliability, accurate operation, longevity and quick response.
Famous Brand Parts
