Quick Details
-
Max. Turned Length (mm):
-
300 mm
-
Year:
-
2019
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HaiShu
-
Model Number:
-
T8445
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
690*890*880
-
Weight (KG):
-
320 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
manual
-
Name:
-
Brake Disc Drum Lathe T8445
-
Machine Type:
-
Lathe
-
Color:
-
White
-
Product type:
-
brake disc drum repair machine
-
Function:
-
Brake disc drum repairing
-
Max. Swing Diameter:
-
400mm
-
Weight:
-
320kg
-
Power:
-
1.1KW
-
Certification:
-
CE ISO
Quick Details
-
Max. Length of Workpiece (mm):
-
300
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
40
-
Max. Turned Length (mm):
-
300 mm
-
Year:
-
2019
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HaiShu
-
Model Number:
-
T8445
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
690*890*880
-
Weight (KG):
-
320 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
manual
-
Name:
-
Brake Disc Drum Lathe T8445
-
Machine Type:
-
Lathe
-
Color:
-
White
-
Product type:
-
brake disc drum repair machine
-
Function:
-
Brake disc drum repairing
-
Max. Swing Diameter:
-
400mm
-
Weight:
-
320kg
-
Power:
-
1.1KW
-
Certification:
-
CE ISO

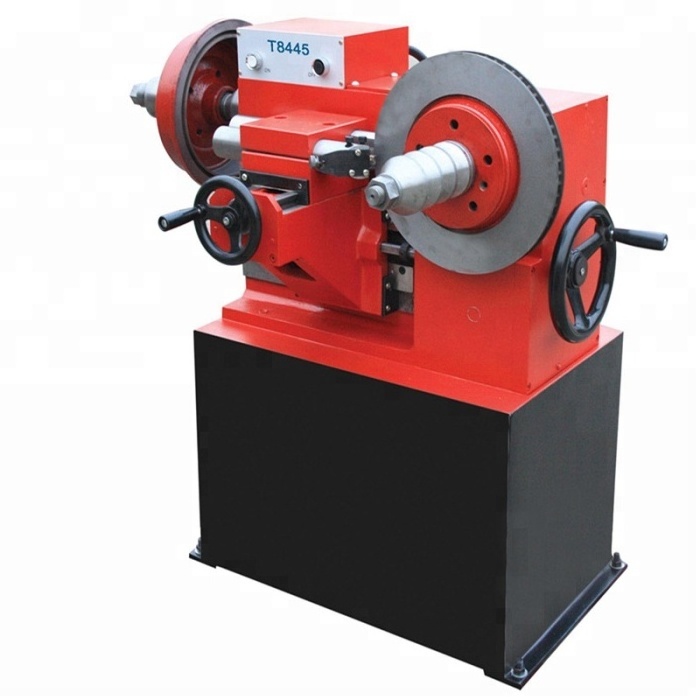

Brake Disc Drum Lathe T8445
brake disc drum lathe T8445 M ain feature
1. The maximum size: brake drum is 450mm, Brake disc is 400mm.
2. Gearbox is lubricated with oil pump .
3.Mainly for cutting brake drum/disc of car or minibus .
|
|
Unit |
Specifications |
|
Brake drum diameter |
mm |
φ180-φ450 |
|
Brake disc diameter |
mm |
≤400 |
|
Working travel |
mm |
170 |
|
Spindle rotation speed |
rpm |
30, 52 , 85 |
|
Feeding capacity |
mm/r |
0.16 |
|
Main motor |
Kw/rpm |
1.1/1400 |
|
Overall dimensions(L×W×H) |
mm |
690×890×880 |
|
Net weight |
Kg |
320 |
