Quick Details
-
Brand Name:
-
SHINGFONG168
-
Model Number:
-
SF120-1
-
Business Type:
-
Manufacturer
-
Colour:
-
white,black,grey...
-
Appearence:
-
Rectangle,square,arc-floor,ladder-shaped...
-
Size:
-
16mm,20mm,25mm,32mm,....315mm
-
Name:
-
pvc corrugated pipe
-
Maximum Usuable Temperature:
-
140℉ (60℃)
-
Resistance:
-
Up to 70
-
Certificate:
-
IEC61084-2-1
-
Standard:
-
ISO TUV UKAS
-
Feature:
-
Combustion-proof
Quick Details
-
Type:
-
Flexible
-
Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHINGFONG168
-
Model Number:
-
SF120-1
-
Business Type:
-
Manufacturer
-
Colour:
-
white,black,grey...
-
Appearence:
-
Rectangle,square,arc-floor,ladder-shaped...
-
Size:
-
16mm,20mm,25mm,32mm,....315mm
-
Name:
-
pvc corrugated pipe
-
Maximum Usuable Temperature:
-
140℉ (60℃)
-
Resistance:
-
Up to 70
-
Certificate:
-
IEC61084-2-1
-
Standard:
-
ISO TUV UKAS
-
Feature:
-
Combustion-proof

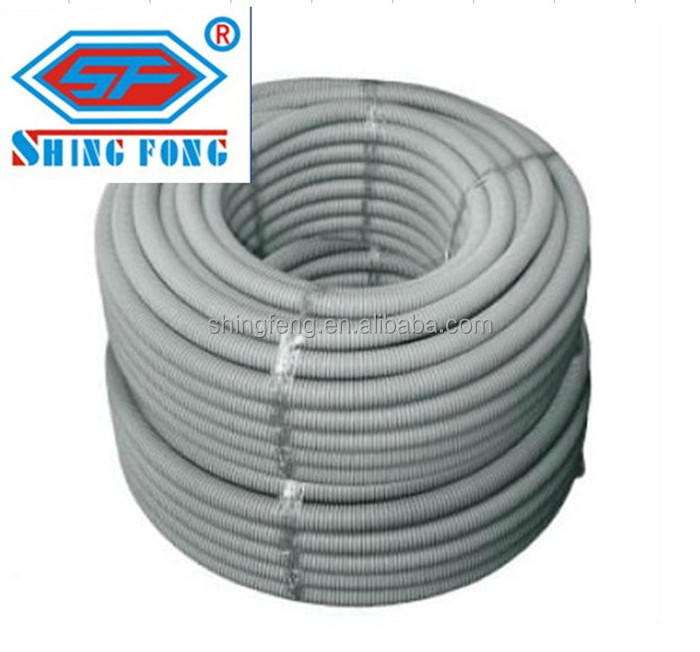

Flexible PVC Corrugated Pipe
1, light, transportation and handling facilities:
PVC pipe is very light material, handling, loading and unloading, construction convenient, can save labor.
2, PVC pipe excellent chemical resistance:
PVC pipe has excellent acid, alkali, corrosion resistance, the use of the chemical industry for the very fit.
3, PVC pipe fluid resistance:
Smooth wall PVC pipe, the resistance of the fluid, the roughness coefficient is only 0.009, lower than the other pipe, in the same flow, the diameter can be reduced.
4, PVC pipe mechanical strength:
PVC pipe pressure resistance strength, resistance to external pressure strength, impact resistance, strength very good conditions for all kinds of piping works.
5, PVC pipe for electrical insulation:
PVC pipe full of excellent electrical insulation for wire and cable conduits, wires and pipes of buildings.
6, PVC pipe does not affect the water quality:
PVC pipe is not affected by the dissolution tests confirmed the water quality, water piping for the present the best pipe.
7, simple construction:
Construction PVC pipe joints quickly and easily, so the construction project cost low.
Second
1.Specification Available Or Customized
|
Shingfong PVC Pipes Specification |
|||
|
Product Name |
Diameter(mm) |
Thickness(mm) |
Packing(pcs/bud) |
|
PVC Conduit |
Φ16 |
0.7/1.0/1.3 |
30 |
| Φ20 |
0.7/1.0/1.4 |
25 |
|
| Φ25 |
0.9/1.3/1.5 |
20 |
|
| Φ32 |
1.4/1.7 |
10 |
|
| Φ40 |
1.4/1.7/2.3 |
10 |
|
|
PVC Cold Bending Pipe
|
Φ16 |
0.9/1.1/1.3/1.5 |
30 |
| Φ20 |
1.0/1.2/1.4/1.8 |
25 |
|
| Φ25 |
1.2/1.4/1.6/2.0 |
20 |
|
| Φ32 |
1.4/1.7/2.2 |
10 |
|
|
U-PVC Drainage Pipe |
Φ50 |
1.8/2.3/3.0 |
5 |
Φ60
|
1.6/2.1 |
5 |
|
Φ75
|
2.0/2.3/3.0 |
1 |
|
Φ98
|
3.8/5.0 |
1 |
|
Φ110
|
2.5/2.8/3.0/3.2/4.0 |
1 |
|
Φ160
|
3.2/4.0 |
1 |
|
Φ200
|
4.0/4.5/6.0 |
1 |
|
Φ250
|
4.0 |
1 |
|
Φ315
|
4.0 |
1 |
|
|
Water Supply Pipe |
Φ20
|
2.0 |
25 |
Φ25
|
2.0 |
20 |
|
Φ32
|
2.2 |
10 |
|
Φ40
|
2.3 |
5 |
|
Φ50
|
2.3 |
5 |
|
|
DN(diameter norminal) |
Spec. (inch) |
Outer Diameter (mm) |
Thickness (mm) |
Quantity in 20ft FCL (m) |
Quantity in 40 HQ FCL
(m)
|
| 16 | 0.8-1.3 | 109375 | 265625 | ||
| 15 | 1/2 | 20 | 1.0-1.4 | 70000 | 170000 |
| 20 | 3/4 | 25 | 1.1-1.5 | 44800 | 108800 |
| 25 | 1 | 32 | 1.3-1.8 | 27343 | 66406 |
| 32 | 11/4 | 40 | 1.4-2.0 | 17500 | 42500 |
| 40 | 11/2 | 50 | 1.4-2.0 | 11200 | 27200 |
| 50 | 2 | 63 | 1.9-3.0 | 7054 | 17132 |
| 65 | 21/2 | 75 | 1.8-2.3 | 4977 | 12088 |
| 80 | 3 | 90 | 2.2-2.5 | 3456 | 8395 |
| 100 | 4 | 110 | 2.3-3.0 | 2315 |
5620 |
1.Different length and different color
2.PVC corrugated pipe id light weight, easy construction,can shorten the construction period
and create a favorable social and economic benefits
3.Good flexural properties,and can adapt to and overcome the uneven settlement of the soil.
4.As the clients option,whatever size,color,type and so on.
2.Product Pictures
3.We have PVC flexible corrugated conduit pipe in 16mm,20mm,25mm,32mm,40mm with any colour you want.
4.Packaging: pieces in one bundle, each bundle in one plastic printing bag or up to you.The design of plastic bag will be transparent or as customer request.
Shipping: We will loading the goods in 7-10 days after we receive the deposit from customer.
5. Advantage: pvc trunking
1).Customization: Any color, size, thickness depending customers’ request, also can open new model for customers.
2).QC:Our QC members who are strict, experienced and technical..
3).Delivery time:5-10 days finish one high cube
4).Packaging Details:pvc cable trunking 25pcs in one bundle, each bundle in one plastic printing bag or meet your request.
5)Payment Term:T/T,30% as deposit,70% at the sight of BL copy
6.Electrical Conduit PVC Certificates
7.Factory & Warehouse Overview
