RIKA RK120-03 Ultrasonic Wind Speed Direction Sensor Anemometer Vane Measurement

RIKA RK120-03 Ultrasonic Wind Speed Direction Sensor Anemometer Vane Measurement

FOB Reference Price: Get Latest Price

≥1 Pieces

US $415

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Rika

Model Number:: RK120-03

Item:: Ultrasonic wind speed direction sensor

Material:: ABS

Wind Speed Range:: 0-45m/s, 0-60m/s

Wind speed resolution:: 0.01m/s

Wind speed accuracy:: ±2% of realtime wind speed

Wind direction range:: 0-360°

Wind direction resolution:: 1°

Wind direction accuracy:: ±3°

Output:: 4-20mA/0-5V/485/RS232/SDI-12

Supply:: 12-24V

Quick Details

Warranty:: one year

Type:: Ultrasonic Wind Speed Direction Sensor

Place of Origin:: Hunan, China

Brand Name:: Rika

Model Number:: RK120-03

Item:: Ultrasonic wind speed direction sensor

Material:: ABS

Wind Speed Range:: 0-45m/s, 0-60m/s

Wind speed resolution:: 0.01m/s

Wind speed accuracy:: ±2% of realtime wind speed

Wind direction range:: 0-360°

Wind direction resolution:: 1°

Wind direction accuracy:: ±3°

Output:: 4-20mA/0-5V/485/RS232/SDI-12

Supply:: 12-24V

Products Description

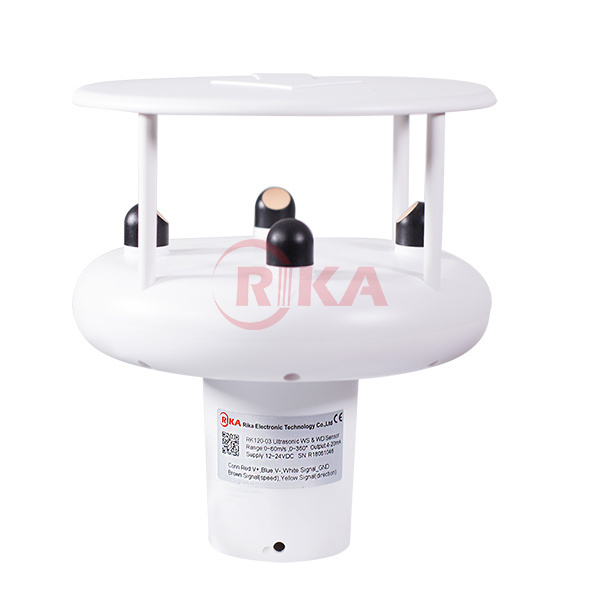

RK120-03 Ultrasonic Wind & Direction Sensor

-Material: Anti-radiation ABS Engineering plastic

- Multiple Output optional : RS232/RS485, 4-20mA

- Low starting threshold : 0.1m/s

- Automatic heating anti-frozen

-OEM Acceptable

-CE，EMC，ISO9001，TUV Certificate

Product Introduction

RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensor, integrated by the ultrasonic wind speed and direction sensors.It can accurately and quickly detect the wind speed, wind direction;built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions, made the accurate and stable elements, low maintenance, an open communications protocol and so on. It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

Product Features

* Adapt to complex weather conditions
* No moving parts, long service life
* The surface preservative treatment
* Strong anti-interference
* High accuracy
* Automatic heating anti-frozen

Applications

* Environmental monitoring
* Sea-going vessel
* Bridge & Tunnel
* Solar and wind power generation
* Wind resource assessment
* Drilling platform
* Automatic weather station
* Agriculture

Product Paramenters

Item	Technical Specification				4-20mA	0-5V	RS485
Power Supply	12-24VDC				5V,12V-24V	5V,12V-24V	5V,12V-24V
Power consumption	＜1W(Heating not activated);＜3W(Heating activated)				<500Ω(typ 250Ω)	>1kΩ
Output Signal	RS232/RS485(Modbus /NMEA-0183),4-20mA (only for wind speed & direction) optional	0-45m/s	0-45m/s	0-45m/s
Operating Temperature	-30℃-+70℃
Ingress Protection	IP66
Heating power	3W max.
Electronic Compass	Optional
Atmopsheric Pressure	Optional
Dimension	Ф145*138mm
Weight(unpacked)	0.8kg
Main material	Anti-radiation ABS Engineering plastic

Item	Technical Specification
Item		Wind speed	Wind direction	Atmospheric Pressure(Optional)
Range	0-45m/s, 0-60m/s	0-360°	150-1100hPa
Resolution	0.01m/s	1°	0.1hPa
Accuracy	≤10m/s：±0.2m/s ＞10m/s：＜±2% the current value	±3°	±1 hPa
Starting Threshold	0.1m/s	0.1m/s	/
Extreme Wind Speed	60m/s			/

Product Details

Dimension

Unit:mm

Mounting

There is rotary adjustable mounting holes at the bottom of the senor,when mounting the sensor, Make sure the indicator on the sensor comply with the geographic north.

Product Packaging

Testimonial

Product Application

Why Choose Us

Customer Photos

Certifications

FAQ

Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.

Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .

Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.

Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .

Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .

Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.

Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee

Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
