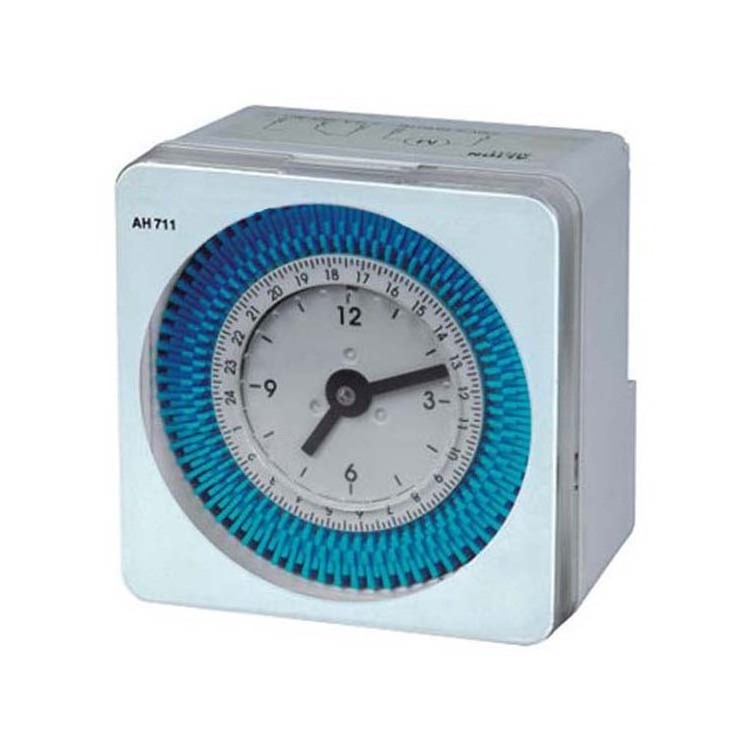

Time Switch AH711 AH710(72 hour time switch,time mechanical switch)

Time Switch AH711 AH710(72 hour time switch,time mechanical switch)

FOB Reference Price: Get Latest Price

≥10 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Display:: Week Program Digital Time Switch

Certifications:: CE ROHS

Name:: Digital Programmable Timer Switch

Item:: Analogue Time Switch SUL181h

Color:: White

Frequency:: 50-60 Hz

Type:: Mini

Contact Capacity:: AC230V 10A

Installation:: Panel

Quick Details

Max. Voltage:: AC230V

Place of Origin:: Zhejiang, China

Product name:: Time Switch AH711 AH710(24 hour time switch,time mechanical switch)

Display:: Week Program Digital Time Switch

Certifications:: CE ROHS

Name:: Digital Programmable Timer Switch

Item:: Analogue Time Switch SUL181h

Color:: White

Frequency:: 50-60 Hz

Type:: Mini

Contact Capacity:: AC230V 10A

Installation:: Panel

Product Description

Time Switch AH711 AH710(24 hour time switch,time mechanical switch)

The product can at any time in 24 hours were set up for 96 time switch to control electrical equipment of the hige power supply, the peak and period to avoid transfer to heighten. The timer used secret lai electrical modular guide installation structure, suitable for installation in lighting box, volume is small and exquisite, beautiful appearance

Partners

Technical parameters

Model	AH711	AH710
Contact capacity	AC230V 10A	AC230V 10A
Full timing range	24H	24H
Contact resistance	≤50mΩ	≤50mΩ
Insulation resistance	≥100mΩ	≥100mΩ
Coil voltage	230VAC	230VAC
Electrical life	10 ⁵ times	10 ⁵ times
Machanical life	10 ⁷ times	10 ⁷ times
Operating temperature	-10°C~+50°C	-10°C~+50°C
Storage battery	70H	without battery
Minmum setting unit	10min	10min
Set times	10min/time 144times	10min/time 144times
Consumed power	1.5VA	1.5VA
