Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
1450X1350X1520mm
-
Weight:
-
550 kg
-
PLC Brand:
-
other
-
Max.Cutting width:
-
720*720mm
-
Max. cutting height:
-
80mm
-
Min.Cutting depth:
-
45mm
-
Precision:
-
±0.3mm
-
Clamp paper:
-
Electric
-
Push paper:
-
Electric
-
Power Supply:
-
AC 220V/110V±10% 50HZ(60HZ) 1000W
-
Product name:
-
7208HD paper cutting machine
-
Machine type:
-
paper cutting machine
-
Model:
-
7208HD
-
Certification:
-
CE Certificate
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
50 m/min
-
Max. workable width:
-
720mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
1450X1350X1520mm
-
Weight:
-
550 kg
-
PLC Brand:
-
other
-
Max.Cutting width:
-
720*720mm
-
Max. cutting height:
-
80mm
-
Min.Cutting depth:
-
45mm
-
Precision:
-
±0.3mm
-
Clamp paper:
-
Electric
-
Push paper:
-
Electric
-
Power Supply:
-
AC 220V/110V±10% 50HZ(60HZ) 1000W
-
Product name:
-
7208HD paper cutting machine
-
Machine type:
-
paper cutting machine
-
Model:
-
7208HD
-
Certification:
-
CE Certificate

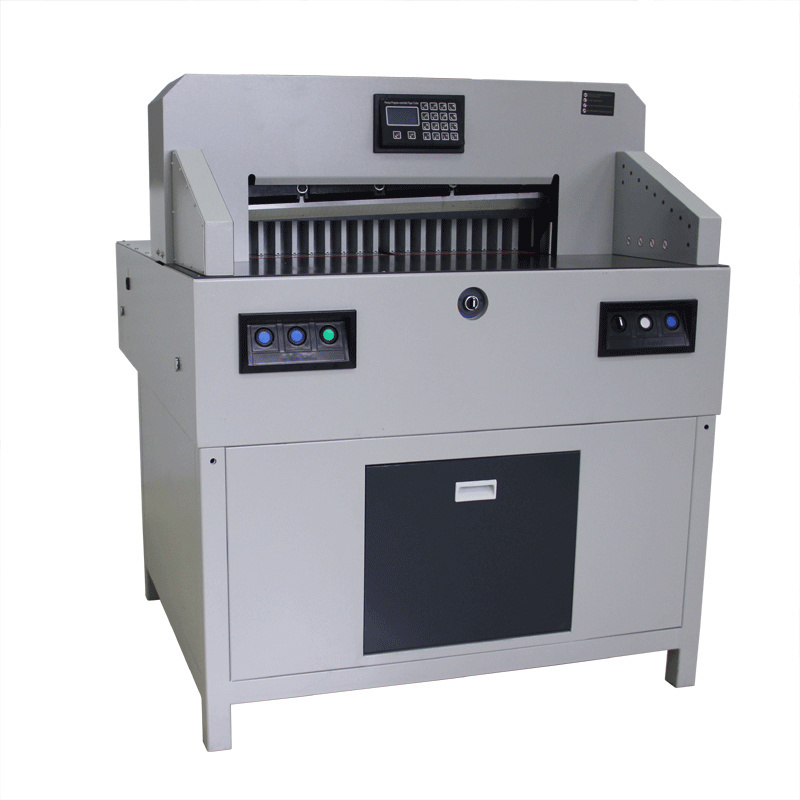

7208HD Program-Control Paper Cutting Machine
|
Max.Cutting width |
720*720mm |
|
Max. cutting height |
80mm |
|
Min.Cutting depth |
45mm |
|
Precision |
±0.3mm |
|
Clamp paper |
Automatic |
|
Push paper |
Automatic |
|
Cutting length behind knife |
720mm |
|
Table length infront knife |
450mm |
|
Safely |
IR Bar |
|
Power |
AC 220V/110V±10% 50HZ(60HZ) 1000W |
|
Shipping Dimension(mm) |
1450X1350X1520mm |
|
Gross Weight |
550KGS |
Parameter of A2 Size Paper Cutting Machine
1.The design to adjust the balance of the machine; machine is easy to move,with adjustable height .
2.The pressure to press paper is adjustable from outside, making it more convenient
3.Double hydraulic power system design,imported main motor and hydraulic valves
4.Patent technique of cutting with lean blade, easy to cut and is suitable for all kinds of paper
5.Patent technique of the swing of oil tank ,completely solves the problem of the balance of power,
6.Intelligent control, LCD display, updated program self-examing of functions and errors.
7.Double guiding rail to push the paper, making sure the pushing more accurate and smoothly.
8.The outside of the blade is micro-adjustable, which is easy and convenient
