Quick Details
-
Marketing Type:
-
Contact Us
-
Machinery Test Report:
-
Contact Us
-
Video outgoing-inspection:
-
Contact Us
-
Warranty of core components:
-
Contact Us
-
Drilling Diameter:
-
580mm
-
Drilling Depth:
-
1000 Meters
Quick Details
-
Place of Origin:
-
Turkey
-
Brand Name:
-
AK-TR
-
Weight:
-
27216 KG
-
Marketing Type:
-
Contact Us
-
Machinery Test Report:
-
Contact Us
-
Video outgoing-inspection:
-
Contact Us
-
Warranty of core components:
-
Contact Us
-
Drilling Diameter:
-
580mm
-
Drilling Depth:
-
1000 Meters
Product Description

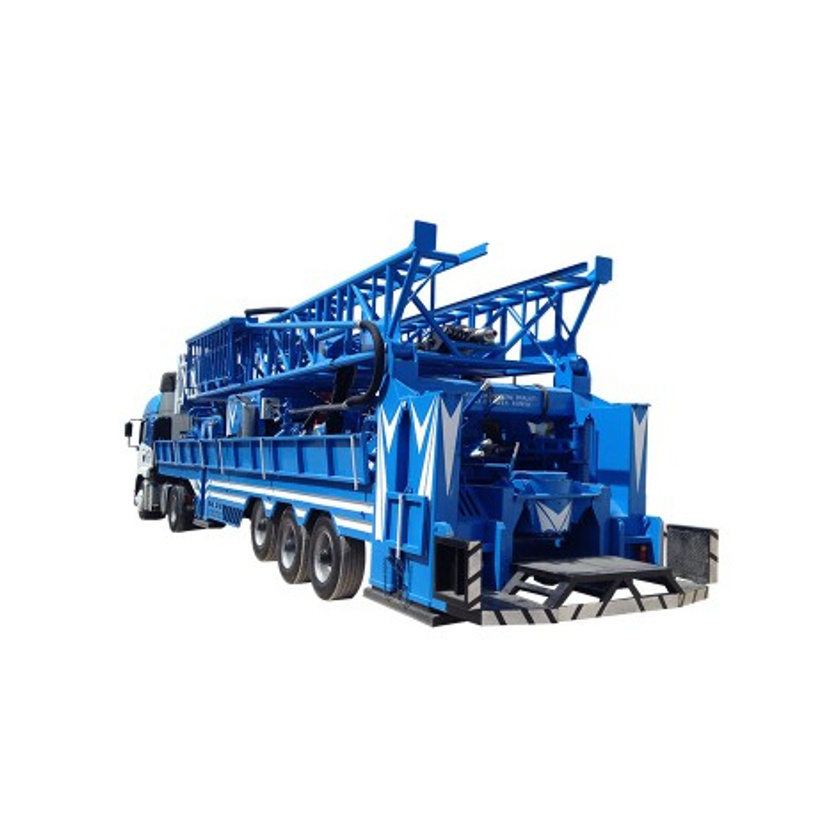

750 MT CAPACITY DRILLING MACHINE ON 3 AXES TRAİLER 13 meters
TOWER DIMENSIONS
-length: 14 meters
-Back Width: 1.8 meters
-height: 1 meter
3) Mast Height from ground 16 - 17 meters
DECK ENGINE
- Diesel Engine Turbo Intercooler 6 cylınders wıth 360 hp
DRIVETRAIN
- 4 Rows of chain Transfer Case
- There is a ZF 90 gearbox in the transfer case
ROPE WINDING DRUM
- Two-sided one-piece rope winder
- Drum diameter 580mm
- Brake diameter 670mm
- There are 5 pads in Each Drum.
ROTARY RING
- Inner Diameter: 230mm
- Turnable Height from ground 160 cm-220 cm (max)
KELLY
- Kelly 130mm*130mm
- Kelly groove 3''
- Kelly 4 or 6 corners wıth 11 meters length
- Service pulley has 3 pulleys and 6 rows of rope.
THE CIRCULATORY SYSTEM
- One-piece Centrifugal Pump mounted on the deck
- Centrifugal Pump water Suction Line diameter 4''
- Pressure line 3". centrifugal Pump discharge pipe outlet diameter 1.5"
HYDRAULIC SYSTEM
- Number of machine stabilizer feet 4 pcs
- Stabilizers have double legs and pistons
- There are 2 pistons for the machine tower
- There are 2 pistons for Rotary back and forth
ELECTRICAL SYSTEM
- Total number of Lightning Floodlights is 5 and Lightning Distance is 25 meters (lighting)
- Control Panel will have Engine Start & Stop Button, temperature and oil indicator.
- 66kW alternator mounted on deck
ROLLER AND ROPES SYSTEM
- Roller diameter 32cm
- Total number of reels 20 pcs
- Rope diameter 20 mm
- Total Rope length about 250 meters
AUXILIARY PARTS
- One-piece Manual Tong
- One-piece Pipe-Vise
- One Piece service hook
ACCESSORIES and PAINTING
- Walking Platform along both sides
- One-piece Engine Cabin
- Acrylic Seawater Resistant Paint
- Machine color is according to buyer's request
- Mud pump 6*8 wıth 800m capacity not included in prıce (mounted on customer request)
WARRANTY TERMS
- One Year warranty covers failure of Major Subassemblies due to manufacturing defects only. No warranty for the Consumables and
wear and tear items
- The warranty does not cover user originated issues, all expenses for all maintenance and repair shall be paid by the Customer.
TOWER DIMENSIONS
-length: 14 meters
-Back Width: 1.8 meters
-height: 1 meter
3) Mast Height from ground 16 - 17 meters
DECK ENGINE
- Diesel Engine Turbo Intercooler 6 cylınders wıth 360 hp
DRIVETRAIN
- 4 Rows of chain Transfer Case
- There is a ZF 90 gearbox in the transfer case
ROPE WINDING DRUM
- Two-sided one-piece rope winder
- Drum diameter 580mm
- Brake diameter 670mm
- There are 5 pads in Each Drum.
ROTARY RING
- Inner Diameter: 230mm
- Turnable Height from ground 160 cm-220 cm (max)
KELLY
- Kelly 130mm*130mm
- Kelly groove 3''
- Kelly 4 or 6 corners wıth 11 meters length
- Service pulley has 3 pulleys and 6 rows of rope.
THE CIRCULATORY SYSTEM
- One-piece Centrifugal Pump mounted on the deck
- Centrifugal Pump water Suction Line diameter 4''
- Pressure line 3". centrifugal Pump discharge pipe outlet diameter 1.5"
HYDRAULIC SYSTEM
- Number of machine stabilizer feet 4 pcs
- Stabilizers have double legs and pistons
- There are 2 pistons for the machine tower
- There are 2 pistons for Rotary back and forth
ELECTRICAL SYSTEM
- Total number of Lightning Floodlights is 5 and Lightning Distance is 25 meters (lighting)
- Control Panel will have Engine Start & Stop Button, temperature and oil indicator.
- 66kW alternator mounted on deck
ROLLER AND ROPES SYSTEM
- Roller diameter 32cm
- Total number of reels 20 pcs
- Rope diameter 20 mm
- Total Rope length about 250 meters
AUXILIARY PARTS
- One-piece Manual Tong
- One-piece Pipe-Vise
- One Piece service hook
ACCESSORIES and PAINTING
- Walking Platform along both sides
- One-piece Engine Cabin
- Acrylic Seawater Resistant Paint
- Machine color is according to buyer's request
- Mud pump 6*8 wıth 800m capacity not included in prıce (mounted on customer request)
WARRANTY TERMS
- One Year warranty covers failure of Major Subassemblies due to manufacturing defects only. No warranty for the Consumables and
wear and tear items
- The warranty does not cover user originated issues, all expenses for all maintenance and repair shall be paid by the Customer.
Specification
|
item
|
value
|
|
Applicable Industries
|
Construction works , Energy & Mining, Other
|
|
Showroom Location
|
Turkey
|
|
Place of Origin
|
Turkey
|
|
Brand Name
|
AK-TR
|
|
Weight
|
27216KG
|
|
Drilling Diameter
|
580mm
|
|
Drilling Depth
|
1000 Meters
|
