Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hollman
-
Dimension(L*W*H):
-
530*580*530 mm
-
Weight:
-
74
-
Rated power/speed:
-
3000/3600
-
Combustion System:
-
Direct Injection
-
Bore x Stroke (mm):
-
92x75
-
Lube capacity (L):
-
3.8
-
Fuel model:
-
0#(summer),-10#(winter)diesel oil
-
Fuel consumption(g/kwh):
-
3000 rmp :250 /3600 rmp :260
-
Lube model:
-
SAE 10W30(CD grade above)
-
Fuel capacity (L):
-
12
-
Fuel Consumpition(g/kwh):
-
3000rpm:250/3600rpm:260
-
Rotation Direction (View from Flywheel):
-
Clockwise
Quick Details
-
Displacement:
-
0.912L
-
Emission Standard:
-
Euro 4
-
Power:
-
20HP, 15.7 kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hollman
-
Dimension(L*W*H):
-
530*580*530 mm
-
Weight:
-
74
-
Rated power/speed:
-
3000/3600
-
Combustion System:
-
Direct Injection
-
Bore x Stroke (mm):
-
92x75
-
Lube capacity (L):
-
3.8
-
Fuel model:
-
0#(summer),-10#(winter)diesel oil
-
Fuel consumption(g/kwh):
-
3000 rmp :250 /3600 rmp :260
-
Lube model:
-
SAE 10W30(CD grade above)
-
Fuel capacity (L):
-
12
-
Fuel Consumpition(g/kwh):
-
3000rpm:250/3600rpm:260
-
Rotation Direction (View from Flywheel):
-
Clockwise

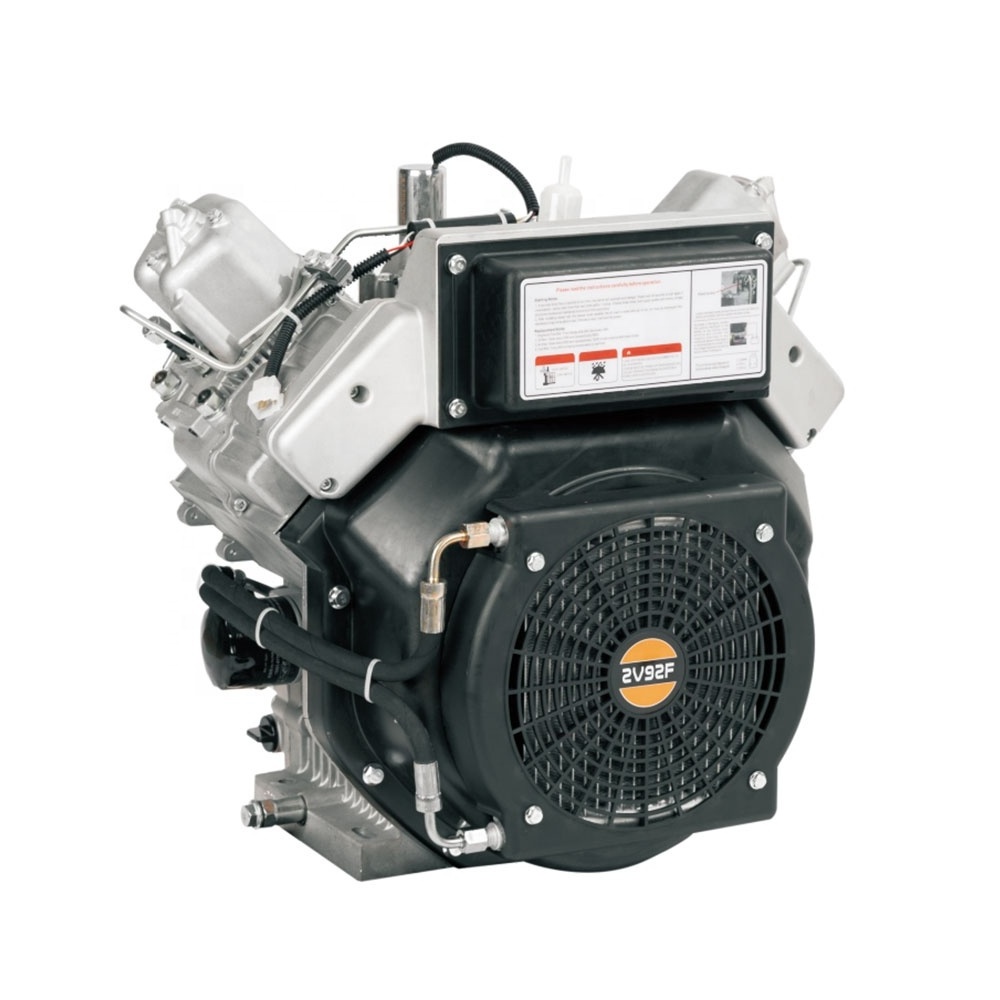

Product Description
specification
|
Model
|
HD2V92
|
|
Type
|
V-Twin,4-Stroke,Air Cooled
|
|
Combustion System
|
Direct Injection
|
|
BorexStroke (mm)
|
92x75
|
|
Displacement (L)
|
0.997
|
|
Compression Ratio
|
20:1
|
|
Rated Power (KW/rpm)
|
14.8/300016/3600
|
|
Rated Power (HP/rpm)
|
20/3000,21.8/3600
|
|
Rated Speed (rpm)
|
3000/3600
|
|
Starting System
|
Electric Starter
|
|
Lube capacity (L)
|
3.8
|
|
Fuel Consumpition (g/kwh)
|
3000rpm: 250/ 3600rpm: 260
|
|
Fuel model
|
0#(Summer).-10#(Winter)diesel oil
|
|
Lube model
|
SAE10W30(CD grade above
|
|
Overall Dimension (LxWxH) (mm)
|
580x500x550
|
|
Net Weight (kg)
|
74
|
|
Rotation Direction (View from Flywheel)
|
Clockwise
|
|
Shaft Height (mm)
|
185
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
