Quick Details
-
Brand Name:
-
JIALONG
-
Weight:
-
30 KG
-
Dimension(L*W*H):
-
10x3mx2.5m
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
Automatic Packing Machine
-
Machine name:
-
Flexo Printing Machine
-
Certification:
-
CE
Quick Details
-
Voltage:
-
380/220
-
Power:
-
30kw
-
Place of Origin:
-
cangzhou
-
Brand Name:
-
JIALONG
-
Weight:
-
30 KG
-
Dimension(L*W*H):
-
10x3mx2.5m
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
Automatic Packing Machine
-
Machine name:
-
Flexo Printing Machine
-
Certification:
-
CE

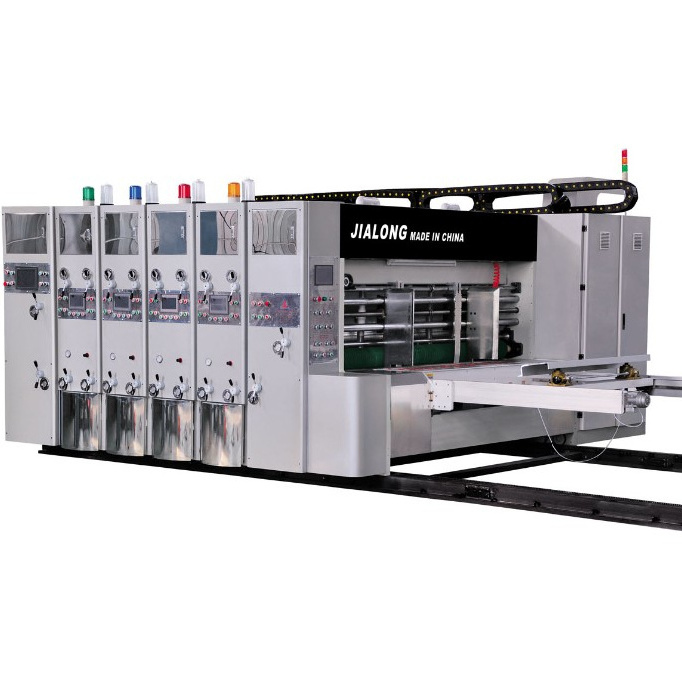

Full automatic 2 color printer and slotter machine/printing and slotting machine
Function of feeding department :
1adopt sun feeder,wind absorbing auxiliary paperboard feeding,can make the cardboard feed adoringly.The volume of the wind can be adjusted accord the camber of the paperboard.
Start protecting device of the main motor,when the machine platform not been locked,the main motor can not running.
2 Continuous and skip cardboard feeding,counting device is install.
3Double rubber roller for feeding ,the rubber roller have slot for prevent the overlarge pressure.
4 The feeding roller is rubber with cylinder cushioning device,precise feeding,with not detector the hardness of the cardboard when the feeding space is small.
5 The side baffles adopt electrical control with date display.(here can add automatic pneumatic aligning device),the back baffle box adopt electric adjustment ,the front baffles space is synchronous manual adjustment.
6 Brush dust-removal equipment with dust-absorption blower,can adjust the wind volume accord the cardboard size.
7 Each unit is electric moving left and right with warning bell,make sure the operator safe.
8 Electronic counter be sure for setup the production quantity ,when complete the production quantity ,automatic warning.(if chose the touch screen control,the touch screen will display the production quantity)
Technical parameters :
|
Parameter |
Unit |
Model |
||||
|
|
|
JLA950
|
JLA950
|
JLA950
|
JLA4212
|
JLA4212
|
|
Max. machinery speed |
pcs/min |
200 |
200 |
200 |
180 |
180 |
|
Economic printing speed |
pcs/min |
160 |
160 |
160 |
150 |
150 |
|
Max. size of paperboard |
mm |
950×2000 |
950×2200 |
950×2400 |
1300×2400 |
1300×2600 |
|
Min. size of paperboard |
mm |
260×500 |
260×500 |
260×500 |
350×800 |
350×800 |
|
Min. space of slotting
|
mm |
140×140×140×140 |
150×150×150×150 |
|||
|
Min. space of slotting
|
mm |
260×60×260×60 |
280×60×280×60 |
|||
|
Max. depth of slot |
mm |
240 |
240 |
240 |
300 |
300 |
|
Skip feed size |
mm |
1200×2000 |
1200×2200 |
1200×2400 |
1500×2400 |
1500×2600 |
|
Max. printing area |
mm2 |
950×1800 |
950×2000 |
950×2200 |
1300×2200 |
1300×2400 |
|
Thickness of
|
mm |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
