Quick Details
-
Use:
-
Sesame Seed Cleaning Grading Sorting Packing
-
Key Selling Points:
-
99%-99.9% Cleaning Efficiency
-
Production Capacity (kg/h):
-
1000 - 10000
-
Marketing Type:
-
Oilseed cleaning before milling
-
Power (kW):
-
50
-
Weight:
-
19000 KG
-
Product Name:
-
5ZT-3 White sesame cleaning machines
-
Rated Capacity:
-
3 t/h (sesame) seed cleaning plant
-
Application:
-
Seeds, cereal grains, beans, melon seeds, oil seeds, garden seeds etc.
-
Main Sesame Cleaning Equipment:
-
Screener, destoner, rotary cleaner, aspirator, color sorter, packing
-
Auxiliary Sesame Conveying System:
-
Bucket elevator, conveyor, feeder, flow piping
-
Dust Removal System:
-
Blower, cyclone dust collector, air pipings
-
Other Sesame Seed Cleaning Machine:
-
Gravity separator to remove blight moldy sesame seeds
-
Cleaning Efficiency:
-
99%-99.99%
-
Supply range:
-
3~20 t/h seed cleaning plants
-
Certification:
-
ISO9001:2015, CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Maosheng-Hyde
-
Type:
-
Seed Cleaning Plant
-
Use:
-
Sesame Seed Cleaning Grading Sorting Packing
-
Key Selling Points:
-
99%-99.9% Cleaning Efficiency
-
Production Capacity (kg/h):
-
1000 - 10000
-
Marketing Type:
-
Oilseed cleaning before milling
-
Power (kW):
-
50
-
Weight:
-
19000 KG
-
Product Name:
-
5ZT-3 White sesame cleaning machines
-
Rated Capacity:
-
3 t/h (sesame) seed cleaning plant
-
Application:
-
Seeds, cereal grains, beans, melon seeds, oil seeds, garden seeds etc.
-
Main Sesame Cleaning Equipment:
-
Screener, destoner, rotary cleaner, aspirator, color sorter, packing
-
Auxiliary Sesame Conveying System:
-
Bucket elevator, conveyor, feeder, flow piping
-
Dust Removal System:
-
Blower, cyclone dust collector, air pipings
-
Other Sesame Seed Cleaning Machine:
-
Gravity separator to remove blight moldy sesame seeds
-
Cleaning Efficiency:
-
99%-99.99%
-
Supply range:
-
3~20 t/h seed cleaning plants
-
Certification:
-
ISO9001:2015, CE
3T Oilseeds Sunflower Flax Hemp White Sesame cleaning machine line for edible oil processing
Hyde Machinery (Maosheng Group)
- Seed processing plant: 1~15 t/h
- Flour mill plant: 40~1000 t/d
- Manufacturer since 1976
Sesame Seed Processing Plants
1) Function: grain and seed cleaning processing - grain cleaning, de-stoning, sorting, grading, sizing and packing.
2) Capacity: 1~20 t/h (based on wheat).
Mobile Grain Seed Cleaning Line
Grain seed cleaning machines: Auto Packing Scale ← Seed Treater ← Mobile Seed Cleaner / Mobile Separator
Capacity: 1 t/h paddy rice cleaning to 20 t/h wheat processing.
Typical mobile grain and seeds cleaning line
5ZT Complete Seed Cleaning Plant
5ZT seed cleaning plant is a complete automatic production line integrated with main machines like vibration screener, destoner, air screen seed cleaner, gravity separator, indented cylinder, belt separator, grader, sizer, de-awner / sheller / husker, seed treater / seed coating machine, seed dryer and DCS bag packing scale, and auxiliary equipment such as feeder, elevator, conveyor, temporary storage bin, dust collector and electric control system.
Typical 10 t/h Seed Processing Plant Flow Chart
Hyde 5ZT seed cleaning plant capacity: 1 t/h sesame cleaning to 15 t/h wheat processing.
Complete Soybean Sunflower Sesame seed cleaning line also including other special machines such as soil separator, bean polishing machine, color sorters, hand-picking belt separator, etc.

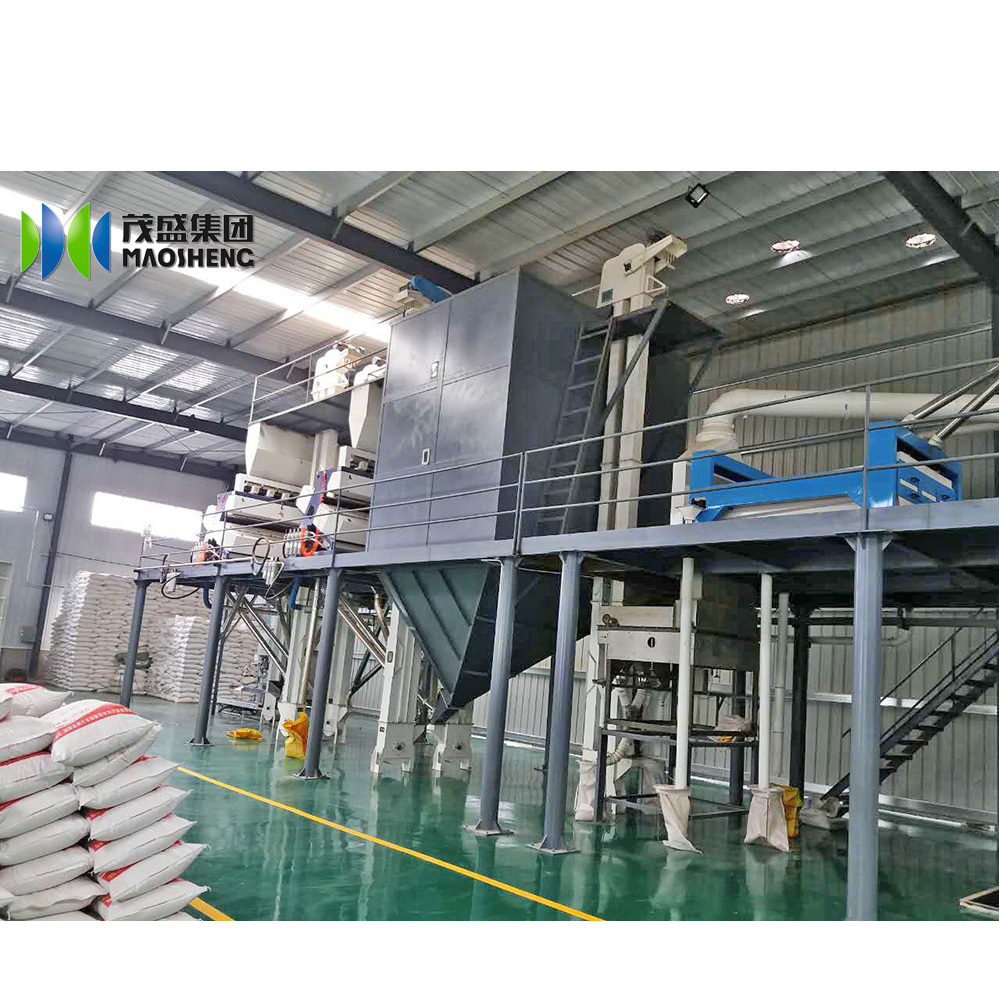

2-3 t/h Sesame seeds cleaning plant, oilseeds cleaning machines with color sorters
Features of sesame seed cleaning plant:
1. Customized design according to seed processing requirement and factory building of client, with the most reasonable layout and process.
2. Electric of production line can be centralized control with light display flow chart, for easy and safe operation to different technological processes.
3. High efficient dust collectors ensure the dust concentration in the workshop and emissions meet the requirements.
4. Seeds and grains processed are all full and uniform with high cleanness and good quality, reducing the seeding quantity and getting fast germination, strong and uniform seedlings, and thriving crops after planting.
Sesame seeds and mung bean cleaning plant with bean polisher machine
Grain Seed Processing Plants by Hyde Machinery
5ZT Wheat Seed Cleaning Plants / Barley Processing Plant / Paddy Cleaning Plants / Maize Processing Plants / Soya Bean Cleaning Lines / Teff Processing Lines / Sesame Seed Cleaning Plants.
| 1 | 10 t/h Maize Processing Plant | 2 | 10 t/h Maize Cleaning Plant |
| 3 | 5 t/h Paddy Processing Plant | 4 | 15 t/h Wheat Cleaning Line |
| 5 | 3 t/h Sesame Cleaning Plant | 6 | 3 t/h Soybean Processing Plant to South Korea |
| 7 | 3 t/h Coarse Cereals Processing Plant | 8 | 10 t/h Paddy Processing Plant |
| 9 | 3 t/h Paddy Processing Plant to South Korea | 10 | 10 t/h Wheat Cleaning Plant |
| 11 | 10 t/h Wheat Cleaning Plant | 12 | 10 t/h Barley Processing Plant to Israel |
Power Consumption of Seed Cleaning Plants
|
Capacity |
Total Power | |||
|
Wheat Cleaning Plant |
Maize Processing Plant |
Paddy Cleaning Line |
||
|
5 t/h |
~55 kW |
~53 kW |
~59 kW |
|
|
10 t/h |
~84 kW |
~79 kW |
~81 kW |
|
Notes: Above data for general machine configuration, for reference only.
| Packing Details |
Export standard seaworthy plywood case for small components. Plastic wrapped or loose package for Sesame Seeds Cleaning Plant container load. Spare parts in plywood case. |
| Shipping Port | Tianjin/Qingdao/Shanghai |
| Lead Time | 25~45 workdays, depending on the type of machine and parts availability. |
Grain and seed cleaning machines:
Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.
Air Screen Fine Cleaner Seed Gravity Separator Indented Cylinder Separator
Stone Separator Vibration Screen Cleaner Separator Rotary Cleaner
