Quick Details
-
Supply:
-
Manufacturer
-
Thermocouple:
-
K,J,E,T,N,S
-
Conductor dimension:
-
0.2mm(20AWG),0.5 mm(24AWG),1.0 mm,1.5 mm,2.5 mm
-
Insulation layer material:
-
V:PVC ,0~105C F:PTFE ,0~260C B:Fiberglass.0~180C
-
keyword:
-
compensation wire
-
Jacket layer material:
-
V:PVC ,0~105C F:PTFE ,0~260 B:Fiberglass,0~180C
-
Shield material:
-
P:Cu, P1:Tinned brass
-
temperature range:
-
-40~250℃
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Duchin
-
Supply:
-
Manufacturer
-
Thermocouple:
-
K,J,E,T,N,S
-
Conductor dimension:
-
0.2mm(20AWG),0.5 mm(24AWG),1.0 mm,1.5 mm,2.5 mm
-
Insulation layer material:
-
V:PVC ,0~105C F:PTFE ,0~260C B:Fiberglass.0~180C
-
keyword:
-
compensation wire
-
Jacket layer material:
-
V:PVC ,0~105C F:PTFE ,0~260 B:Fiberglass,0~180C
-
Shield material:
-
P:Cu, P1:Tinned brass
-
temperature range:
-
-40~250℃

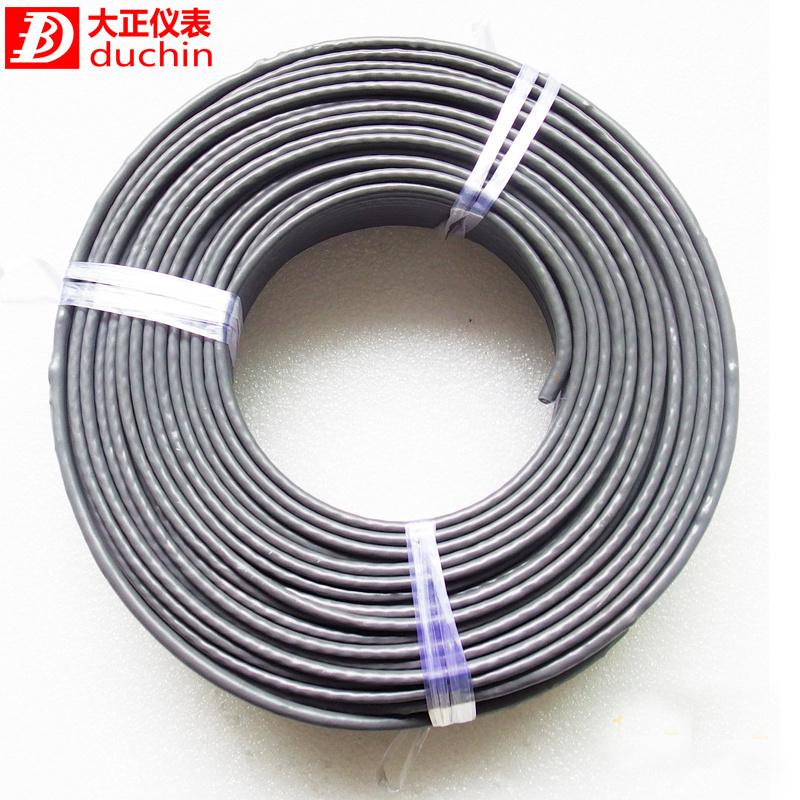

29 years manufacturer thermocouple Insulated compensation wire
compensation wire
Thermocouple compensation wire is specialized for connecting thermocouple with display instrument or control system,
including SC,KX,KC,NX,NC,EX,JX,TX,CC,DC types, the temperature range is -40~250 ℃ .
Thermocouple compensation wire do help in thermocouple measurement accuracy
1. Thermocouple:K,J,E,T,N,S
RTD:Cu,Ni
2. Conductor dimension
Conductor square meter:0.2mm²(20AWG),0.5 mm²(24AWG),1.0 mm²,1.5 mm²,2.5 mm²
AWG standard
3. Insulation layer material
V:PVC 0~105C
F:PTFE 0~260C
B:Fiberglass 0~180C
4. Jacket layer material
V:PVC 0~105C
F:PTFE 0~260
B:Fiberglass 0~180C
5. Shield material
P:Cu
P1:Tinned brass
