Quick Details
-
Model Number:
-
KXC-CV-DP-1605
-
Brand Name:
-
KXC
-
Standard or Nonstandard:
-
Standard
-
Standard:
-
GB, ANSI, BS, DIN, JIS
-
Process:
-
Sand casting, machining, painting
-
Surface:
-
Painting, powder coating
-
Dimension:
-
DN50-DN400
-
Certification:
-
ISO9001:2008
-
Working Pressure:
-
PN10, PN16, PN25
-
OEM Service:
-
Accept
Quick Details
-
Port Size:
-
Standard
-
Warranty:
-
18 MONTHS
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
KXC-CV-DP-1605
-
Brand Name:
-
KXC
-
Standard or Nonstandard:
-
Standard
-
Standard:
-
GB, ANSI, BS, DIN, JIS
-
Process:
-
Sand casting, machining, painting
-
Surface:
-
Painting, powder coating
-
Dimension:
-
DN50-DN400
-
Certification:
-
ISO9001:2008
-
Working Pressure:
-
PN10, PN16, PN25
-
OEM Service:
-
Accept

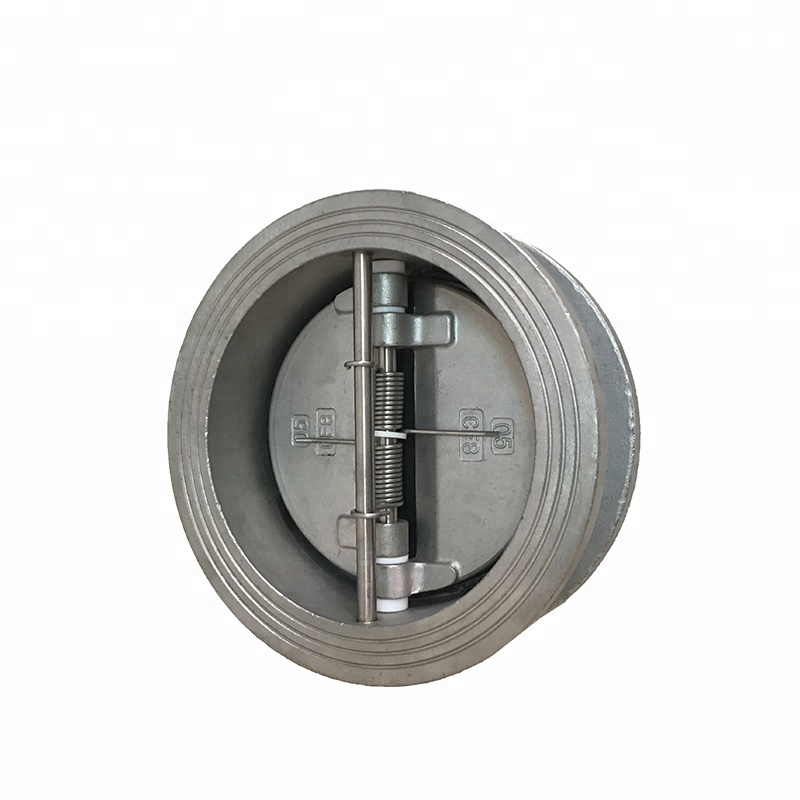

4" DN100 Wafer Dual plate check valve PN16 PN25 with stainless steel 304 body disc stem and spring
| TECHNICAL DATA: | |
| Nominal diameter: | DN50-600/2"-24" |
| Face to face: | API 594, API 609, BS 5155 |
| Flange accommodation: |
AS 2029 "D","E" BS 10 "D","E" JIS 5K/10K/16K ASME B16.1 125LB ASME B16.5 150LB BS 4504 PN6/PN10/PN16 DIN 2501 PN6/PN10/PN16 ISO 7005 PN6/PN10/PN16 |
| Design standard: | API 594, API 609, BS 5155 |
| Temperature range: | -20℃ to+120℃(depending on pressure,medium and materal) |
| Test inspection: | APL 598 GB/T 13927 |
| Suitable medium: |
fresh water, waste water, sewage, air, vapor, food, oil, etc. |
| Name | Material |
| Seat | NBR/EPDM/Viton |
| Eyebolt | SS304 |
| Body | CI/DI/WCB/CF8/CF8M |
| Plate | DI/DI+EPOXY /CF8/CF8M |
| Spring | SS304 |
| SHaft | SS304/SS316/SS416 |
| nut | SS304 |
