Quick Details
-
Brand Name:
-
GAOFU/OEM
-
Product name:
-
Fiber Optic Hermaphroditic Interconnection Expanded Beam Connector
-
Fiber Count:
-
2/4/6
-
Connector type A:
-
EXPANDED XB-11/13/15
-
Connector type B:
-
SC/LC/FC/ST
-
Outer jacket:
-
LSZH PE or TPU
-
Fiber Diameter:
-
5.5mm
-
Warranty:
-
3 Years
-
Lead time:
-
3 Work Days
-
Certification:
-
CE/ROHS/ISO9001
-
Application:
-
Tactical and harsh environments
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
GAOFU-XB11 XB13 XB15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GAOFU/OEM
-
Product name:
-
Fiber Optic Hermaphroditic Interconnection Expanded Beam Connector
-
Fiber Count:
-
2/4/6
-
Connector type A:
-
EXPANDED XB-11/13/15
-
Connector type B:
-
SC/LC/FC/ST
-
Outer jacket:
-
LSZH PE or TPU
-
Fiber Diameter:
-
5.5mm
-
Warranty:
-
3 Years
-
Lead time:
-
3 Work Days
-
Certification:
-
CE/ROHS/ISO9001
-
Application:
-
Tactical and harsh environments

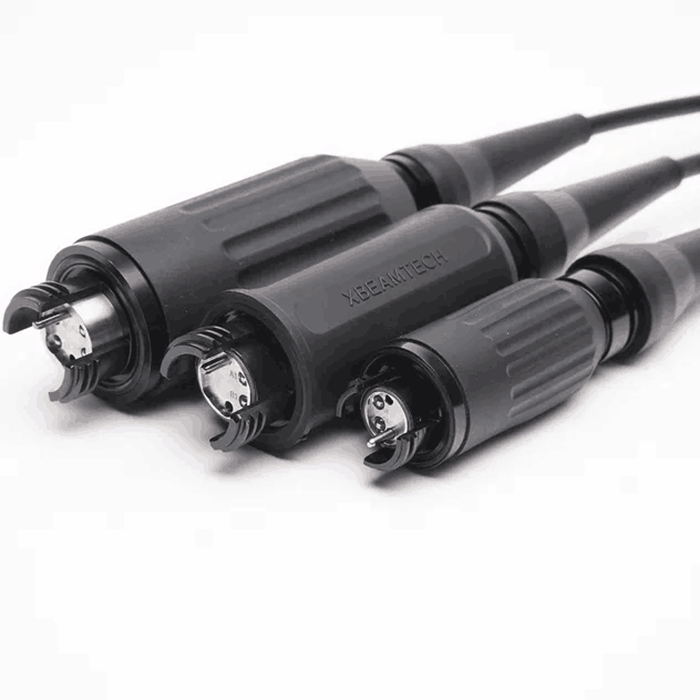

2/4/6 Core Fiber Optic Hermaphroditic Interconnection Expanded Beam Connector For Field Tactical Fiber Optic Cable Use
The EXPANDED BEAM Connectors, featuring expanded beam technology, hermaphroditic connection, rugged construction for field deployment and hybrid configurability, have been designed for harsh environment applications such as tactical communications, avionics, offshore systems,outside broadcast,mining and plant.
The EXPANDED BEAM Connectors uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to presence of damage or contamination at the fiber end.
Hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments. The EXPANDED BEAM connectors also enable transfer of electrical signal or power using hybrid insert configuration.
- Hermaphroditic Interconnection;
- 2 to 6 optical Channels for singlemode or multimode;
- Custom firguration avaliable;
- Environmental Sealing (IP68);
- Very high resistance to vibration,shock,environmental effects,dust and debris.
XB11-Mini size 11
•Mini size - Shell size 11
• 2 , 4 Optical Channels
• Intermateability : Tyco Pro Beam
mini, QPC Qmicro, Stratos HMC,
Fibreco Mini2.
XB13-Medium size 13
•Medium size - Shell size 13• 2 , 4 Optical Channels
• Optical 2Ch / AWG16 2Ch
• Intermateability : Fibreco Junior
MIL-DTL-83526, Tyco Pro Beam Jr.,
QPC Qmini, Stratos HMA
XB15-Large size 15
•Large size - Shell size 15
• 2 , 4 , 6 Optical Channels
• Optical 2Ch / AWG16 2Ch / AWG20 2Ch
• Intermateability : Tyco Pro Beam Jr.,
Stratos HMA, Fibreco Senior
