Quick Details
-
Application:
-
Punch, air compressor etc
-
Function:
-
vibration attenuation
-
Feature:
-
Flexible
-
Color:
-
grey
-
Certification:
-
ISO9001:2008
-
Corrosion:
-
anti-corrosion
-
skidding:
-
anti-skidding
-
OEM:
-
welcome
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Material:
-
stainless steel
-
Product name:
-
air mounts
-
Application:
-
Punch, air compressor etc
-
Function:
-
vibration attenuation
-
Feature:
-
Flexible
-
Color:
-
grey
-
Certification:
-
ISO9001:2008
-
Corrosion:
-
anti-corrosion
-
skidding:
-
anti-skidding
-
OEM:
-
welcome
| Product Name |

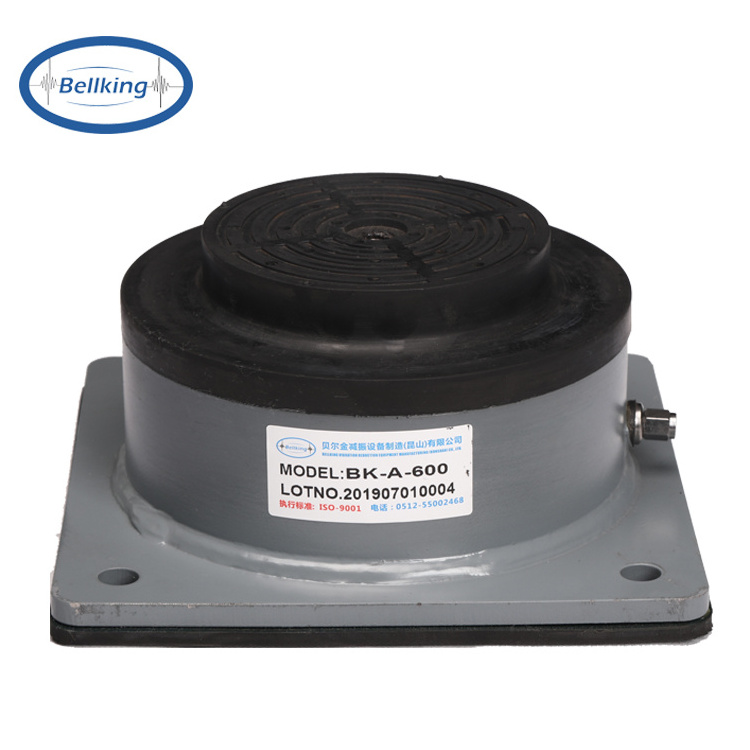

Air mount vibration isolator type BK-A |
| Characteristics |
. Air type isolator, meet standard of JISD-4101. . Natural frequency is 3Hz~5Hz, maximum air pressure is 4.5kg/cm² . . The rubber material is Neoprene, integrated with good sealing. . Very high vibration attenuation up to 97%. . Nominal load range is from 50kg to 9000kg. . Anti- oil cap is selectable. |
| Application |
. Punch, Presses, Air compressor, Chillers, Pump. |
|
Type |
Rated Capacity Kg |
Dimensions(mm) |
Bolt | |||||
| A | B | C | D | d | BD | |||
|
BK-A-090 |
50-100 | 125 | 100 | 0 | 100 | 50 | 12 | M10 |
|
BK-A-150 |
100-200 | 125 | 100 | 0 | 100 | 60 | 12 | M12 |
|
BK-A-300 |
200-400 | 160 | 125 | 0 | 138 | 90 | 12 | M12 |
|
BK-A-600 |
400-700 | 200 | 160 | 0 | 164 | 110 | 12 | M12 |
|
BK-A-800 |
700-900 | 220 | 180 | 0 | 191 | 132 | 14 | M16 |
|
BK-A-1100 |
900-1200 | 250 | 200 | 0 | 212 | 150 | 14 | M16 |
|
BK-A-1500 |
1200-1600 | 300 | 250 | 0 | 263 | 190 | 14 | M16 |
| BK-A-1900 | 1600-2000 | 350 | 300 | 0 | 314 | 240 | 14 | M16 |
| BK-A-2700 | 2000-2800 | 400 | 350 | 90 | 353 | 270 | 16 | M20 |
| BK-A-3400 | 2800-3500 | 500 | 450 | 90 | 412 | 330 | 16 | M20 |
| BK-A-5900 | 3500-6000 | 530 | 470 | 125 | 502 | 390 | 20 | M24 |
|
BK-A-8900 |
6000-9000 |
650 |
590 |
150 |
602 |
490 |
20 | M24 |
- Packaging Details:Carton Box with Pallet or Wooden Case
- Delivery Time:20 Working Days
