Wholesale Durable 100g Qsfp28 1m (33ft) Aoc Hd mi Active Optical Cable

Wholesale Durable 100g Qsfp28 1m (33ft) Aoc Hd mi Active Optical Cable

FOB Reference Price: Get Latest Price

≥1 Pieces

US $170

≥100 Pieces

US $165

≥1000 Pieces

US $155

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GZ-LINK

Use:: Data Center

Warranty Time:: 3Year

Data Rate:: 25.78 Gbps/CH

Connector Type:: QSFP28 to QSFP28

Distance:: 70m on OM3 MMF/100m on OM4 MMF

Optical Connector:: MTP/MPO MMF Without PIN

Cable Length:: 1m (33ft)or Customized

Minimum Bend Radius:: 7.5mm

Diagnostics:: Digital Monitor

Transmitter:: 4CH VCSEL Array Laser

Receiver:: 4CH PIN photo detector Array

TX Output Power:: -8.4~+2.4dBm

Quick Details

Type:: Fiber Optic Transceivers

Model Number:: GQS-100GAOC-001

Place of Origin:: Guangdong, China

Brand Name:: GZ-LINK

Use:: Data Center

Warranty Time:: 3Year

Data Rate:: 25.78 Gbps/CH

Connector Type:: QSFP28 to QSFP28

Distance:: 70m on OM3 MMF/100m on OM4 MMF

Optical Connector:: MTP/MPO MMF Without PIN

Cable Length:: 1m (33ft)or Customized

Minimum Bend Radius:: 7.5mm

Diagnostics:: Digital Monitor

Transmitter:: 4CH VCSEL Array Laser

Receiver:: 4CH PIN photo detector Array

TX Output Power:: -8.4~+2.4dBm

Product Description

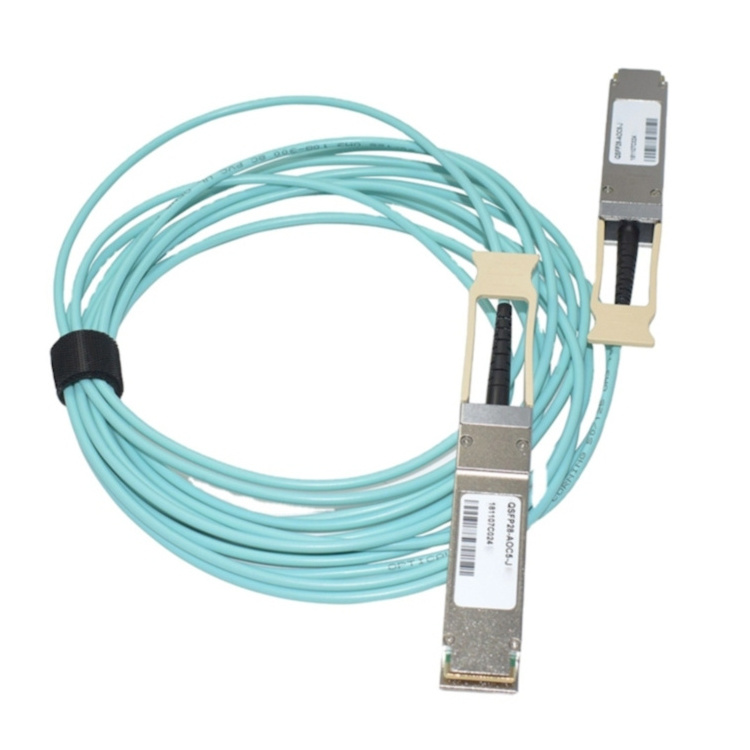

100G QSFP28 AOC Active Optical Cable

Overview

100G QSFP28 AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. 100G QSFP28 AOC is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector. This module incorporates GZ-Link proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features

* 4 channels full-duplex transceiver modules
* Supports 100Gbps total data rate
* Transmission data rate up to 28.05Gbps per channel
* 4 channels 850nm VCSEL array
* 4 channels PIN photo detector array
* Low power consumption <3.5W
* Hot Pluggable QSFP form factor
* Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
* Single MPO connector receptacle
* Built-in digital diagnostic functions
* Operating case temperature 0°C to +70°C
* 3.3V power supply voltage
* RoHS 6 compliant (lead free)

Package (Form Factor)	100G QSFP28 AOC
Data Rate (typical)	25.78 Gbps/CH
Distance	100m on OM4 MMF
Transmitter	4CH VCSEL Array Laser
Receiver	4CH PIN photo detector Array
TX Output Power (dBm)	-8.4~+2.4
RX Sensitivity (dBm)	-5.2
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	QSFP28

Application * IEEE 802.3bm 100GBASE SR4
* Infiniband EDR
* 128G Fibre Channel
* 4x28Gb/s Multimode OTN

Application

Factory direct, FULL COMPATIBLE WITH FOLLOWING NETWORK DEVICES

Packaging & Shipping

Packing Details:
10pcs/ anti-static box.

Shipping Methods:
1. Samples and Small quantity order FedEx/DHL/UPS/TNT ,Door to Door.
2. Batch goods :By Air, by Sea or by Rail.
3. FCL: Airport/Seaport/Railway Station receiving.
4. Lead Time: 1-5 working days for samples; 5-10 working days for mass.

Precautions:
1. Storage in anti-static box.
2. When used, please ensure that the voltage is normal and stable.
