Quick Details
-
Brand Name:
-
JC
-
Body material:
-
Ductile Iron
-
Size:
-
DN40-1200
-
Standard or Nonstandard:
-
ANSI BS DIN
-
Name:
-

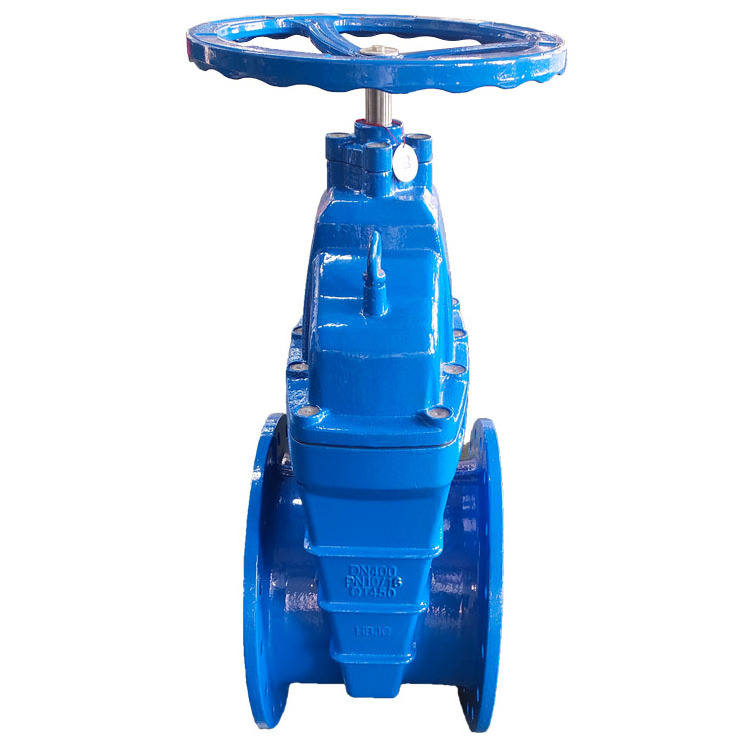

Wras Gate Valve
-
Connection:
-
flange
-
Working medium:
-
water
-
Stem:
-
ss304
-
Disc:
-
Ductile Iron+EPDM
-
Color:
-
Blue
-
MOQ:
-
1 Pcs
Quick Details
-
Port Size:
-
DN50-800
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
GGG50
-
Brand Name:
-
JC
-
Body material:
-
Ductile Iron
-
Size:
-
DN40-1200
-
Standard or Nonstandard:
-
ANSI BS DIN
-
Name:
-
Wras Gate Valve
-
Connection:
-
flange
-
Working medium:
-
water
-
Stem:
-
ss304
-
Disc:
-
Ductile Iron+EPDM
-
Color:
-
Blue
-
MOQ:
-
1 Pcs
Product Feature
1. Online replacement of top seal; Easy installation and maintenance.
2. Integral rubber-clad disc: the ductile iron framework is thermal-clad integraly with high -performance rubber.ensuring tight seal and rust prevention.
3. Integrated brass mut; By means of special casting process, the brass stem nut is integrated with the disc with secure connection, thus the product is safe and reliable.
4. Flat-bottom seat: The sealing suface of the body is flat without hollow, avoiding any dirt deposit.
5. Wholly-through flow channel: the whol flow channel is through, give "zero" pressure loss
6. Dependable top sealing: With multi-O ring structure adopted, the sealing is dependable.
7. Epoxy resin coating: the cast is sprayed with epoxy resin coat both inside and outside. And the disc is wholly clad with rubber in accordance with food hygiene requirement, So it is safe and resisitant to corrosion.
| MATERIAL | |
| Size Non-rising stem: | DN50-600 |
| Ring stem: | DN50~300 |
| End flange: | EN 1092 |
| Face to face: | EN 558-1 |
| Normal pressure: | PN1.0/1.6MPa |
| Body: | DI |
| Disc: | DI+EPDM/NBR |
| Stem: | 2Cr13 430 |
| Sealing face: | EPDM/NBR |
| Stem Copper: | Nut Brass |
| Bonnet: | DI |
| Working temperature: | -15~425 |
| Suitable mediums: | Fresh water, sewage, sea water, air, vapor,food, medicine, oils. alkalis, salt etc. |
