Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
7kw/9kw/12KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC220V/380V
-
Dimension(L*W*H):
-
3600*4000*3500mm
-
Weight (KG):
-
12000
-
Product name:
-
5 axis CNC router machine foam sculpture machine
-
Working area:
-
1300mm*2500mm*1000mm
-
Spindle:
-
China/Italy brand
-
Spindle power:
-
9kw
-
Control system:
-
Syntec, Siemens Control System
-
Motor:
-
Japan Yaskawa Servo Motor
-
Transmission:
-
Taiwan HIWINLinear guide & Taiwan TBI Ball screw
-
Software:
-
Ucancam / ArtCam/TYPE3/Power mill
-
Application:
-
foam, wood, metal, 3d sculpture
-
Certification:
-
CE ISO9001 TUV BV
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
100 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
7kw/9kw/12KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC220V/380V
-
Dimension(L*W*H):
-
3600*4000*3500mm
-
Weight (KG):
-
12000
-
Product name:
-
5 axis CNC router machine foam sculpture machine
-
Working area:
-
1300mm*2500mm*1000mm
-
Spindle:
-
China/Italy brand
-
Spindle power:
-
9kw
-
Control system:
-
Syntec, Siemens Control System
-
Motor:
-
Japan Yaskawa Servo Motor
-
Transmission:
-
Taiwan HIWINLinear guide & Taiwan TBI Ball screw
-
Software:
-
Ucancam / ArtCam/TYPE3/Power mill
-
Application:
-
foam, wood, metal, 3d sculpture
-
Certification:
-
CE ISO9001 TUV BV

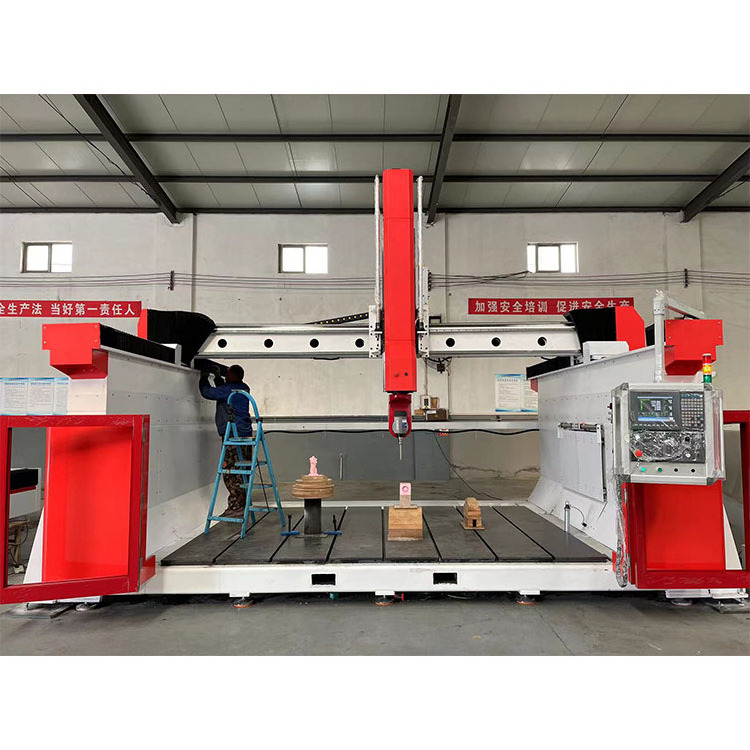

CNC router machine 5 axis wood carving machine foam sculpture machine
|
CNC router machine 5 axis wood carving machine foam sculpture machine |
||||
|
Model |
AN1325 |
AN1530 |
AN2030 |
AN-Customize |
|
Working area(X*Y*Z) |
1300*2500*200mm |
1500*3000*200mm |
2000*3000*200mm |
Customize |
| Movement type | Movable table | |||
| C travelling | ±213° | |||
| A travelling | ±120° | |||
| Beam spacing(mm) | 4260 | |||
| Beam Height(mm) | 2150 | |||
| Vacuum pump | Germany Becker pump | |||
| Spindle | 7KW/10KW/12kw Italian HSD | |||
| Range of speeds | 24000 RPM/min | |||
| Servo Motor brand | Japan YASKAWA | |||
| Tool magazine | 8 positions Carousel Tool Storage | |||
| Control system | Syntec | |||
| Machine size | 3600*4000*3500mm | |||
| Total weight | 12T | |||
| Total Power(kw) | 24KW | |||
| Voltage | AC380V 3phase | |||
| File exchange | G code | |||
| X,Y axis Maximum speed | 45m/min | |||
| Z,C axis Maximum speed | 20m/min | |||
| A axis Maximum speed | 20m/min | |||
| Guarantee time | Two years of guatantee in case of non-human damage | |||
Application of cnc router wood :
1.Mould: wood,wax, wood, gypsum,foams,wax 1325 cnc router wood working machine wood machine
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
1325 cnc router wood working machine wood machine
Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.
2. Outside package: Standard marine export plywood case.
We can package according to your requests.
Delivery Detail: Shipped within 10 working days after payment.
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. wood cnc machine wood cnc router
2. Free training course at our plant. Lifetime maintenance free of charge.
3. Our staff can be sent to your company to install or adjust if necessary.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery. wood cnc machine wood cnc route
