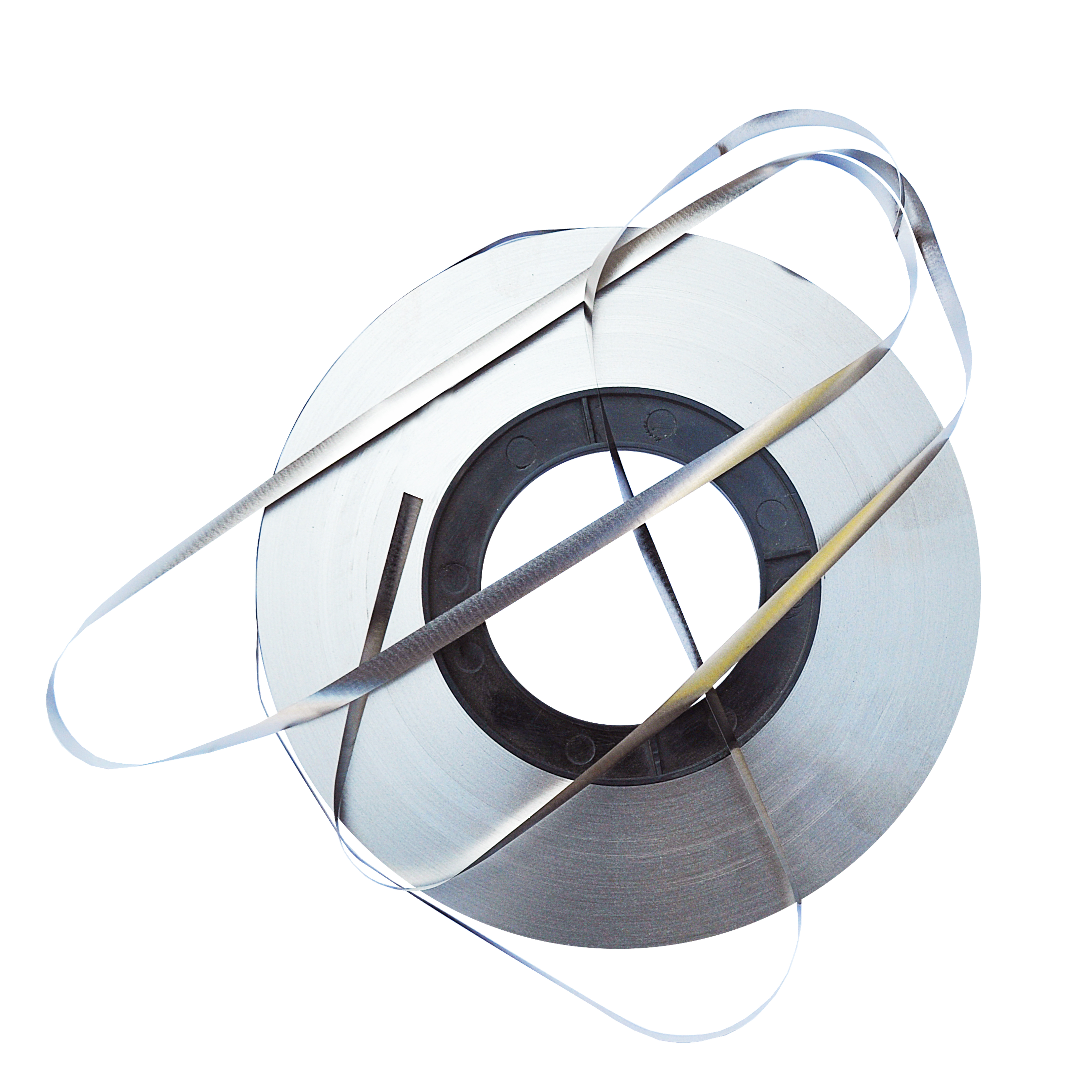

Anti Rusty Super Slim High Saturation Magnetization Best Material For Magnetic Core Nanocrystalline Alloy Ribbon
Anti Rusty Super Slim High Saturation Magnetization Best Material For Magnetic Core Nanocrystalline Alloy Ribbon
Anti Rusty Super Slim High Saturation Magnetization Best Material For Magnetic Core Nanocrystalline Alloy Ribbon
DESCRIPTION:
Amorphous Ribbon is an new soft magnetic material.
It is produced through the advanced technology of rapid solidification
of molten metal at a cooling rate of about a million ℃/sec.
During this process the metal is rapidly quenched as a form
of ribbon with 25-35 μm thickness,and the micro-structure of the alloy
is the amorphous due to the high quenching rate.
Fe-based Amorphous Ribbon has many advantages,
such as high permeability,high saturate induction,
high electrical resistivity, high density,
low core loss and good stability.
CHAEACTERISTICS:
High Saturate induction -- Reducing Core Volume
Rectangular Structure -- Easy for coil assembling
Core Cutting -- Good for anti-DC-bias-saturation
Low core loss -- anti-temperature-rising
APPLICATION
Inverter reactor, transformer core.
Wide constant permeable inductor core
Mid-frequency Transformer core
Distribution Transformer Core
Item
Performance
Saturate induction Bs(T)
1.56
Curie temperature Tc(℃)
400
Crystallization Tx(℃)
515
Hardness Hv
960
Magnetostriction
27x10-6
Density(g/cm3)
7.18
Resistivity μΩ.cm
130
Coercivity(A/m)
<4
Thickness(μm)
28~35
Stacking factor
≥0.75
Anti Rusty Super Slim High Saturation Magnetization Best Material For Magnetic Core Nanocrystalline Alloy Ribbon
Application
Fe-based
Amorphous Ribbon
Toroidal
Oval
Split
C
Bar
Amorphous Core
Amorphous Core
Amorphous Core
Amorphous Core
Amorphous Core
Material
Silicon
steel
Nickel Iron
Ferrite
Mn-Zn
Amorphous
Nona
Crystalline
50Ni
80Ni
Cobalt Iron
Fe Iron
Bs(T)
2.0
1.55
0.74
0.5
0.58
1.65
1.2
HC(Oe)
0.5
0.15
0.03
0.1
0.005
0.03
0.01
Initial permeability
1500
6000
>40000
3000
>60000
5000
>100000
Largest permeability
20000
60000
200000
6000
1000000
50000
1000000
Resistivity
50
30
60
106
120
130
80
Curie Temperature
750
500
500
140
225
400
570
Crystallization
-
-
-
-
530
510
510/570
Process
Design
Produce
Cutting
Winding
Annealing
Finish product
Testing
Packing
Factory
96
600
40,000
350
AUTOMATIC
EXPERINCED
SOUARE METERS
MILLION TURNOVER
MACHINE
WORKERS
FACTORY
YEARLY
10
YEARS
Amorphous Core & Nanocrystalline Core
Manufacturer Experience
Founded in July 2008, the company has a total building area of 45840 square
meters and a plant area of 28000 square meters.In 2010, the company was
approvrd as national high-tech enterprise. Top 2 Amorphous & Nanocrystalline
Core Factory in China. We are high-tech corporate enterprise integrating the
design, research and development, product and sale of novel noncrystalline and
nanocrystalline soft magnetic materials and components.Its products are widely
applied to power electronics,new energy, aerospace and aciation, information
communication, etc. its high - performance nanocrystalline ultrathin strip,
noncrystalline reactor for solar inverter and emc common mode filter inductance
especially have outstanding technical level and excellent quality
