Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WEIMING
-
Model Number:
-
WP2.3D
-
Speed:
-
1500rpm
-
Starting system:
-
DC12V
-
Weight:
-
887KG,887KG,925KG,931KG,991KG
-
Product Name:
-

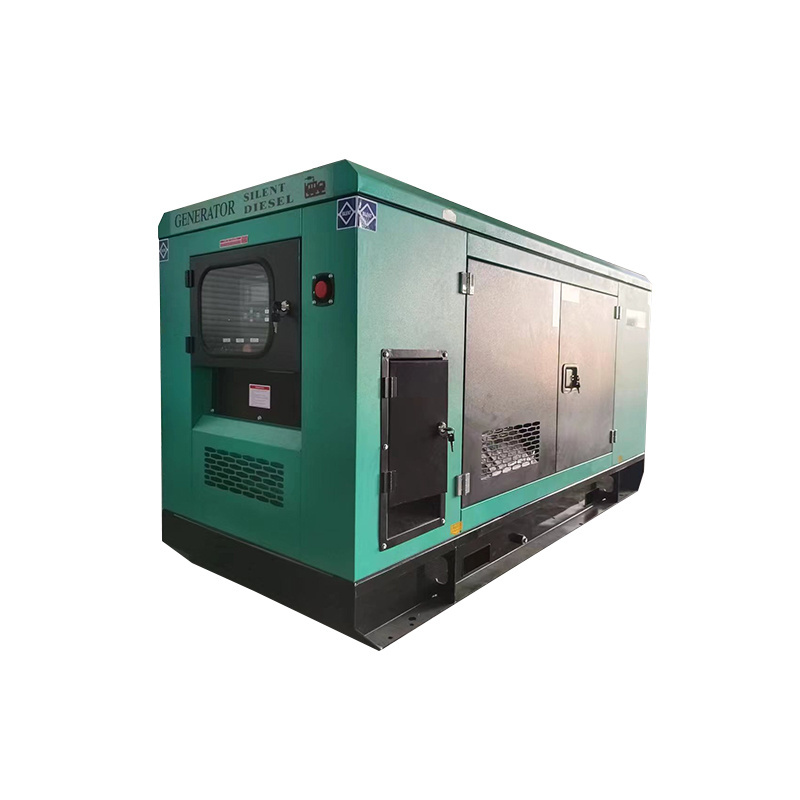

weichai Silent diesel generator sets
-
Start Methods:
-
DC12V Electric
-
Speed Adjustable:
-
Mechanical or Electronic
-
speed:
-
1500rpm
-
frequency:
-
50hz
-
Rated load fuel consumption:
-
4.2L/h,5.3L/h,6.3L/h
-
Number of cylinders:
-
4-cylinder inline
-
Air intake method:
-
naturally aspirated, supercharged
-
Excitation method:
-
Brushless excitation
Quick Details
-
Rated Voltage:
-
400V
-
Rated Current:
-
21.6A,28.8A,36A,43.2A,54A
-
Frequency:
-
50Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WEIMING
-
Model Number:
-
WP2.3D
-
Speed:
-
1500rpm
-
Starting system:
-
DC12V
-
Weight:
-
887KG,887KG,925KG,931KG,991KG
-
Product Name:
-
weichai Silent diesel generator sets
-
Start Methods:
-
DC12V Electric
-
Speed Adjustable:
-
Mechanical or Electronic
-
speed:
-
1500rpm
-
frequency:
-
50hz
-
Rated load fuel consumption:
-
4.2L/h,5.3L/h,6.3L/h
-
Number of cylinders:
-
4-cylinder inline
-
Air intake method:
-
naturally aspirated, supercharged
-
Excitation method:
-
Brushless excitation
|
Unit Model
|
WMGF-12
|
WMGF-16
|
WMGF-20
|
WMGF-24
|
WMGF-30
|
|
Unit Brand
|
Wiming
|
Wiming
|
Wiming
|
Wiming
|
Wiming
|
|
Emission standard
|
National II
|
National II
|
National II
|
National II
|
National II
|
|
Standby power kW
|
13.2
|
18
|
22
|
26
|
33
|
|
Common power kW
|
12
|
16
|
20
|
24
|
30
|
|
Rated voltage(V)
|
400
|
400
|
400
|
400
|
400
|
|
Rated current(A)
|
21.6
|
28.8
|
36
|
43.2
|
54
|
|
Rated speed r/min
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
Rated frequency(Hz)
|
50
|
50
|
50
|
50
|
50
|
|
Rated power factor
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
|
Number of phases
|
3
|
3
|
3
|
3
|
3
|
|
Rated load fuel consumption (L/h)
|
4.2
|
5.3
|
6.3
|
7.4
|
9.3
|
|
Mute box size（mm）
|
2300*1000*1460
|
2300*1000*1460
|
2300*1000*1460
|
2300*1000*1460
|
2300*1000*1460
|
|
Weight of mute unit（kg）
|
887
|
887
|
925
|
931
|
991
|
|
Engine Model
|
WP2.3D25E200
|
WP2.3D25E200
|
WP2.3D33E200
|
WP2.3D33E200
|
WP2.3D40E200
|
|
Engine brand
|
Weichai
|
Weichai
|
Weichai
|
Weichai
|
Weichai
|
|
Engine spare power kW
|
25
|
25
|
33
|
33
|
40
|
|
Rated speed r/min
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
Number of cylinders
|
4 Cylinders In-Line
|
4 Cylinders In-Line
|
4 Cylinders In-Line
|
4 Cylinders In-Line
|
4 Cylinders In-Line
|
|
Bore*stroke(mm)
|
89*92
|
89*92
|
89*92
|
89*92
|
89*92
|
|
Speed control mode
|
ESC
|
ESC
|
ESC
|
ESC
|
ESC
|
|
Cooling mode
|
Fan closed water-cooled
|
Fan closed water-cooled
|
Fan closed water-cooled
|
Fan closed water-cooled
|
Fan closed water-cooled
|
|
Intake mode
|
Naturally aspirated
|
Naturally aspirated
|
Booster
|
Booster
|
Booster
|
|
Starting mode
|
DC12V
|
DC12V
|
DC12V
|
DC12V
|
DC12V
|
|
Total displacement (L)
|
2.289
|
2.289
|
2.289
|
2.289
|
2.289
|
|
Radiator design temperature (℃)
|
45
|
45
|
45
|
45
|
45
|
|
Fuel type
|
Domestic No. 0 (at room temperature)
|
Domestic No. 0 (at room temperature)
|
Domestic No. 0 (at room temperature)
|
Domestic No. 0 (at room temperature)
|
Domestic No. 0 (at room temperature)
|
|
Generator model
|
WMH-12
|
WMH-16
|
WMH-20
|
WMH-24
|
WMH-30
|
|
Generator brand
|
Wiming
|
Wiming
|
Weiming
|
Wiming
|
Wiming
|
|
Generator power (KW)
|
12
|
16
|
20
|
24
|
30
|
|
Rated voltage (V)
|
400
|
400
|
400
|
400
|
400
|
|
Rated frequency(Hz)
|
50
|
50
|
50
|
50
|
50
|
|
Rated speed(RPM)
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
Power factor
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
|
Phase
|
Three-phase
|
Three-phase
|
Three-phase
|
Three-phase
|
Three-phase
|
|
Efficiency(%)
|
90% of the total
|
90% of the total
|
90% of the total
|
90% of the total
|
90% of the total
|
|
Excitation mode
|
Brushless excitation
|
Brushless excitation
|
Brushless excitation
|
Brushless excitation
|
Brushless excitation
|
Q1: Are you a factory or a trading company?
We are a manufacturer.
Q2: Where is your factory?
Our factory is in Yangzhou, Jiangsu Province, China. It's near Shanghai Port. It takes about an hour from Shanghai to our city by express train and about four hours by car.
Q3: How many days does it take to produce and deliver?
5~10 days for conventional products, 15~30 days for customized products
Q4: What are your terms of payment?
Regular product delivery; Custom products pay 30% deposit, pay the balance before delivery.
Q5: How about quality control in your factory?
We strictly implement the whole QC process, such as incoming inspection, process inspection and final inspection. Each generator set must be tested on the production line.
Q6: How to guarantee?
We provide a 1 year warranty on all products. This is the generator warranty statement
(1500-1800RPM), generator warranty statement.
