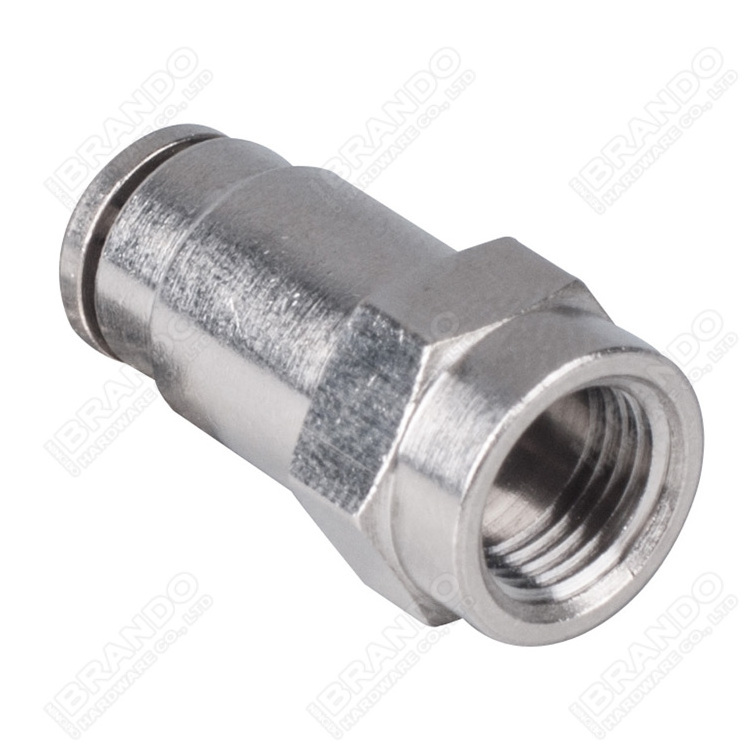

Quick Details
-
Fitting Type:
-
Female Straight
-
Tube OD:
-
4mm, 6mm, 8mm, 10mm, 12mm
-
Thread Size:
-
1/8", 1/4", 3/8", 1/2"
-
Working Pressure:
-
0 to 0.8 MPa
-
Pressure Resistance:
-
1.0 MPa
-
Working Temperature:
-
-10 to +60℃
-
Connection Type:
-
Push On
Quick Details
-
Weight (KG):
-
0.05
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
Brass
-
Fitting Type:
-
Female Straight
-
Tube OD:
-
4mm, 6mm, 8mm, 10mm, 12mm
-
Thread Size:
-
1/8", 1/4", 3/8", 1/2"
-
Working Pressure:
-
0 to 0.8 MPa
-
Pressure Resistance:
-
1.0 MPa
-
Working Temperature:
-
-10 to +60℃
-
Connection Type:
-
Push On
Products Description
BRANDO's
Pneumatic Fittings
provide easy connection and disconnection tube without causing damage to the tube. BRANDO's Pneumatic Fittings are available in a variety of types, moulds, sizes and thread types to satisfy various metric and inch tube demands. BRANDO's Pneumatic Fittings could accommodate both metric size tubing and inch size tubing that are made from plastic, brass, stainless steel.
BRANDO's Pneumatic Fittings Features:
1.
Accommodate kinds of connection thread type
:
R (PT, BSPT), G (BSPP), NPT, UNF, UNC, Metric.
2.
Accommodate metric size tubing OD:
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm.
3.
Accommodate inch size tubing OD:
1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8".
Technical Data
|
Material
|
Brass
|
|
Thread Type
|
BSP
|
|
|
BSPP
|
|
|
Metric Thread
|
|
|
NPT
|
|
Working Pressure
|
0 to 0.8 MPa
|
|
Connecting Tube Material
|
PA
|
|
|
PU
|
|
Connecting Tube Outer Diameter
|
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm
|
|
Medium
|
Compressed Air
|
|
Working Temperature
|
-10 to 60℃
|
Specifications
|
Model No
|
D
|
M
|
L1
|
L
|
S
|
|
BCKH-B-2.5
|
4
|
G1/8''
|
7
|
26
|
13
|
|
|
|
G1/4''
|
9
|
28
|
16
|
|
|
|
G3/8''
|
10
|
29
|
19
|
|
|
|
G1/2''
|
11
|
30
|
24
|
|
BCKH-B-4
|
6
|
G1/8''
|
7
|
28
|
13
|
|
|
|
G1/4''
|
9
|
30
|
16
|
|
|
|
G3/8''
|
10
|
31
|
19
|
|
|
|
G1/2''
|
11
|
32
|
24
|
|
BCKH-B-6
|
8
|
G1/8''
|
7
|
28
|
14
|
|
|
|
G1/4''
|
9
|
30
|
16
|
|
|
|
G3/8''
|
10
|
31
|
19
|
|
|
|
G1/2''
|
11
|
32
|
24
|
|
BCKH-B-8
|
10
|
G1/8''
|
7
|
30
|
16
|
|
|
|
G1/4''
|
9
|
32
|
16
|
|
|
|
G3/8''
|
10
|
33
|
19
|
|
|
|
G1/2''
|
11
|
34
|
24
|
|
BCKH-B-10
|
12
|
G1/8''
|
7
|
30
|
19
|
|
|
|
G1/4''
|
9
|
32
|
19
|
|
|
|
G3/8''
|
10
|
33
|
19
|
|
|
|
G1/2''
|
11
|
34
|
24
|
Push In Brass Fittings Types
Male Straight Female Straight Male Elbow Female Elbow
Male Tee Male Run Tee
Male Y
Male Banjo
Female Banjo Male Double Banjo Male Banjo Tee Bulkhead Union
Union Straight Union Elbow Union Tee Union Y
Union Cross Plug-In Straight Plug-In Tee Plug-In Y
