Quick Details
-
Spindle Taper:
-
7:24 ISO50
-
Range of Spindle Speed(r.p.m):
-
60 - 1800 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XILI
-
Model Number:
-
XL6336CL
-
Table Travel (mm):
-
1600*360
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
3.7V
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2520*2100*2500
-
Weight (KG):
-
2850
-
Marketing Type:
-
Hot Product 2023
-
Machine Type:
-
Universal Horizontal
Quick Details
-
Table Travel (X) (mm):
-
1300
-
Table Travel (Y) (mm):
-
320
-
Table Travel (Z) (mm):
-
450
-
Spindle Taper:
-
7:24 ISO50
-
Range of Spindle Speed(r.p.m):
-
60 - 1800 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XILI
-
Model Number:
-
XL6336CL
-
Table Travel (mm):
-
1600*360
-
Year:
-
2023
-
Spindle Motor Power(kW):
-
3.7V
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2520*2100*2500
-
Weight (KG):
-
2850
-
Marketing Type:
-
Hot Product 2023
-
Machine Type:
-
Universal Horizontal

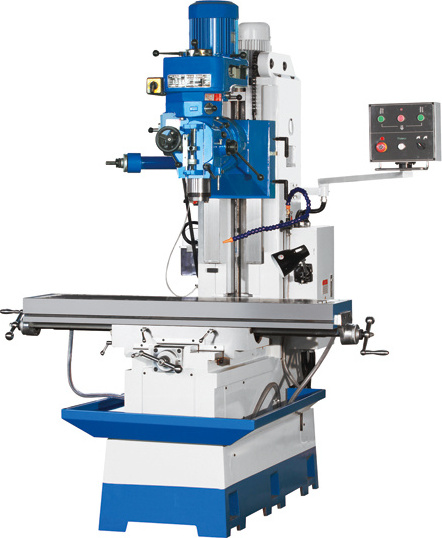

XL6336CL high speed turret head knee type metal working milling machine
Brief Introduction
1).
Taiwan brand,
high speed turret head (standard is 16 steps turret head, infinitely variable turret head is optional)
2). extra horizontal spindle, gear driven directly for powerful milling
3). work-table driven by servo motor
3). work-table driven by servo motor
4). ±45° titlting work table is hot selling optional
Specificaitons of This Series
|
ITEM
|
UNIT
|
XL6336
|
XL6336C
|
XL6336CL
|
||
|
table size
|
mm
|
1325*360
|
|
1600*360
|
||
|
table travel (X/Y/Z)
|
mm
|
750/320/460
|
1100/320/450
|
1300/320/450
|
||
|
table feed speed (X/Y/Z)
|
mm/min
|
30-750/20-500/15-375
|
|
|
||
|
table rapid speed (X/Y/Z)
|
mm/min
|
1200/800/600
|
|
|
||
|
T-slots (No./width/pitch)
|
|
3/18/80
|
|
|
||
|
spindle taper
|
|
ISO40 (V) ISO50(H)
|
|
|
||
|
vertical spindle stroke
|
mm
|
127
|
|
|
||
|
vertical spindle speed
|
rpm
|
vertical: 66-5440 (16 steps)
horizontal: 60-1800 (12 steps)
|
|
|
||
|
distance from vertical spindle nose to table
|
mm
|
200-660
|
200-650
|
|
||
|
distance from horizontal spindle axis to table
|
mm
|
20-480
|
20-470
|
|
||
|
distance from horizontal spindle center to ram
|
mm
|
245
|
|
|
||
|
ram travel
|
mm
|
550
|
|
|
||
|
main motor power (V & H)
|
|
vertical: 5HP
horizontal: 5.5kw
|
|
|
||
|
X/Y/Z servo motor torque
|
N.m
|
15
|
|
|
||
|
overall size
|
mm
|
1800*2100*2500
|
2245*2100*2500
|
2520*2100*2500
|
||
|
N.W.
|
kg
|
2710
|
2780
|
2850
|
||
continued:
|
ITEM
|
UNIT
|
XQ6332
|
XQ6332A
|
XQ6332B
|
XQ6332C
|
|||
|
table size
|
mm
|
1270*320
|
1370*320
|
1270*320
|
1370*320
|
|||
|
table travel (X/Y/Z)
|
mm
|
720/300/400
|
820/300/400
|
900*380*400
|
1000/380/400
|
|||
|
table feed speed (X/Y/Z)
|
mm/min
|
30-830/30-830/23-625
|
|
|
|
|||
|
table rapid speed (X/Y/Z)
|
mm/min
|
1335/1335/1000
|
|
|
|
|||
|
T-slots (No./width/pitch)
|
|
3/14/80
|
|
|
|
|||
|
spindle taper
|
|
ISO40 (V) ISO40(H)
|
|
|
|
|||
|
spindle speed
|
rpm
|
vertical: 66-5440 (16 steps)
horizontal: 35-1500 (12 steps)
|
|
|
|
|||
|
distance from horizontal spindle axis to table
|
mm
|
75-475
|
|
|
|
|||
|
distance from horizontal spindle center to ram
|
mm
|
200
|
|
|
|
|||
|
ram travel
|
mm
|
450
|
|
|
|
|||
|
main motor power (V & H)
|
kw
|
vertical: 5HP
horizontal: 3kw |
|
|
|
|||
|
X/Y/Z servo motor torque
|
N.m
|
10
|
|
|
|
|||
|
overall size
|
mm
|
1720*1680*2350
|
1820*1680*2350
|
1720*1680*2350
|
1820*1680*2350
|
|||
|
N.W.
|
kg
|
1700
|
1750
|
1750
|
1800
|
|||
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to inquire !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
