Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ican
-
Model Number:
-
57BLY-0730NBB-J
-
Torque:
-
0.2NM
-
Motor type:
-
57mm brushless dc motor
-
Application:
-
BOAT, Car, Home Appliance, Cosmetic instrument, SMART HOME
-
Weight:
-
1.2kg
-
Voltage:
-
24v
-
Color:
-
Black
-
Rated Speed:
-
3000rpm
-
Rated Power:
-
69w
-
Rated current:
-
2A
-
Brush Type:
-
brushless dc
Quick Details
-
Speed(RPM):
-
3000RPM
-
Continuous Current(A):
-
2A
-
Efficiency:
-
IE 1
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ican
-
Model Number:
-
57BLY-0730NBB-J
-
Torque:
-
0.2NM
-
Motor type:
-
57mm brushless dc motor
-
Application:
-
BOAT, Car, Home Appliance, Cosmetic instrument, SMART HOME
-
Weight:
-
1.2kg
-
Voltage:
-
24v
-
Color:
-
Black
-
Rated Speed:
-
3000rpm
-
Rated Power:
-
69w
-
Rated current:
-
2A
-
Brush Type:
-
brushless dc

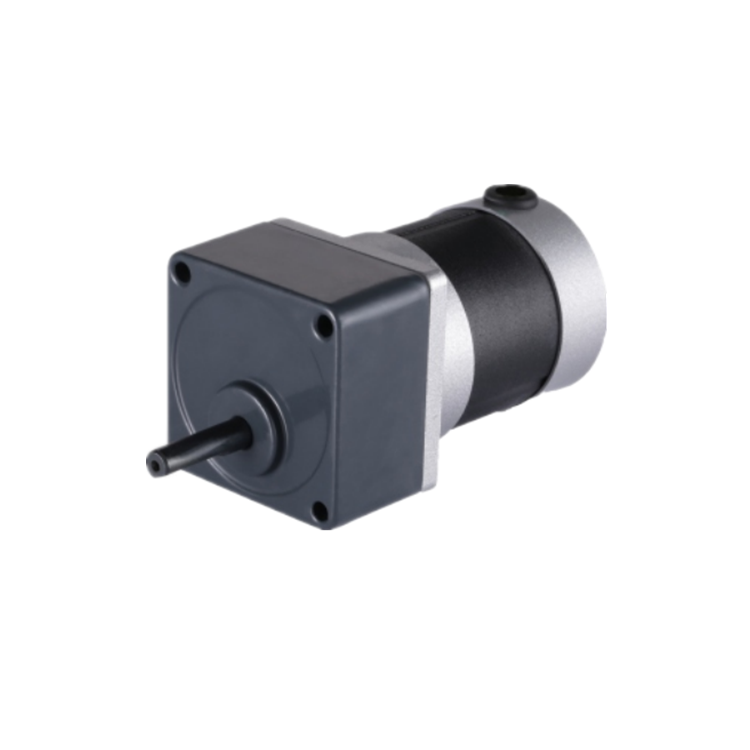

57mm bldc motor gearbox reducer ratio (5,7.5,10,15,20,30) low noise bldc motor planetary gearbox for ETC lifter and swing gate
Product Description
Parameters
Product images
Drawings
Gear motor parameters
| Model | Output Power(W) |
Motor
Voltage(VDC)
|
Rated rotational speed(RPM)
|
Rated
Torque(Nm)
|
Gear Ratio
|
N.W.(kg)
|
Matched Driver |
|
57BLY
-
0730NBB
-
J
|
69 | 24 | 3000 | 0.2 |
1:5/1:7.5
1:10/1:15
1:20/1:30
|
1.2 |
BLD
-
120A
BLD
-
300B
|
|
57BLY
-
1030NBB
-
J
|
103 | 24 | 3000 | 0.33 | 1.44 |
