- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RuiLian
-
Model Number:
-
Mortar paper polyurethane foam board
-
Product name:
-
PIR PUR Sandwich Panel
-
Core material:
-
Rigid core polyurethane foam
-
Surface material:
-
Fiber glass mortar
-
Length:
-
Less than 6m normally
-
Width:
-
Maximum 1.2m
-
Thickness:
-
10mm~130mm
-
Density:
-
≥38kg/m³
-
MOQ:
-
One 40 Feet High Container
-
Fire Rating:
-
B1,B2,B3
-
Thermal conductivity:
-
≤0.024w/mk
Quick Details
-
Project Solution Capability:
-
graphic design, Cross Categories Consolidation
-
Application:
-
exterior and interior wall and roof
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RuiLian
-
Model Number:
-
Mortar paper polyurethane foam board
-
Product name:
-
PIR PUR Sandwich Panel
-
Core material:
-
Rigid core polyurethane foam
-
Surface material:
-
Fiber glass mortar
-
Length:
-
Less than 6m normally
-
Width:
-
Maximum 1.2m
-
Thickness:
-
10mm~130mm
-
Density:
-
≥38kg/m³
-
MOQ:
-
One 40 Feet High Container
-
Fire Rating:
-
B1,B2,B3
-
Thermal conductivity:
-
≤0.024w/mk

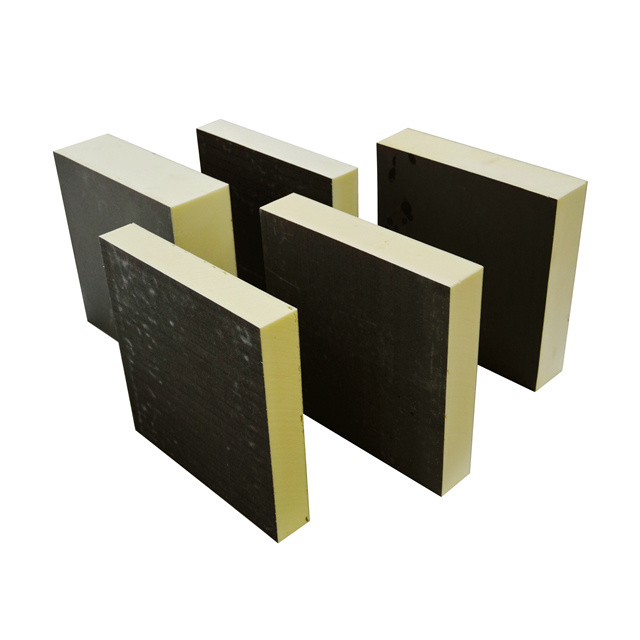

Products Description
Polyurethane foam insulation board is an economical, energy-efficient, and environmentally friendly insulation product that offers the following benefits:
1. Highest R-value per inch, which measures the thermal resistance of the insulation,
2. Significant installation cost savings,
3. Excellent fire performance,
4. Low environment impact and energy savings,
5. Superior insurance ratings,
6. High strength,
7. Moisture resistance,
8. Compliance with building codes,
Product Application
Scope of use of the product
1. Building wall and roof insulation board
2. Pipeline and ventilation pipeline insulation board
3. Solar insulation system
4. Building insulation insulation system
Product Structure Diagram
Product Paramenters
|
Product Name
|
Rigid core polyurethane foam board
|
|
|
|
|||
|
Skin Surface Material
|
Aluminum Foil/Fiber Glass Paper (Mortar Paper)
|
|
|
|
|||
|
Brand
|
RuiLian/Can be customized/OEM/ODM
|
|
|
|
|||
|
Skin Thickness
|
Aluminum Foil
|
|
0.06mm or 0.08mm
|
|
|||
|
|
Fiber Glass Paper (Mortar Paper)
|
|
0.4mm or 0.8mm
|
|
|||
|
Tensile Bond Strength
|
≥1.0 MPa
|
|
|
|
|||
|
Density
|
≥35 kg/m³
|
|
|
|
|||
|
Thermal Conductivity
|
≤0.024 W/m•K
|
|
|
|
|||
|
Dimensional Stability
|
≤1.0 %
(70℃±2℃, 48h, Length/width/Thickness)
|
|
|
|
|||
|
Water Absorption Rate
|
≤3.0 %
(volume fraction)
|
|
|
|
|||
|
Compression Strength
|
≥150 KPa
(10% compression deformation)
|
|
|
|
|||
|
Tensile Strength Perpendicular to
Panel Direction |
≥0.10 MPa
|
|
|
|
|||
|
Bending Deformation
|
≥6.5 mm
|
|
|
|
|||
|
Moisture Permeability Coefficient
|
≤6.5 ng/Pa•m•s
|
|
|
|
|||
|
Combustion Performance Level
|
B1
|
|
|
|
|||
