Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
DA
-
Model Number:
-
PVS1440
-
Weight:
-
310g(with battery)
-
Effective Visual Distance:
-
>200m
-
FOV:
-
40degree
-
Diopter adjustment range:
-
-5~+5 diopter
-
Exit pupil distance::
-
25mm
-
Operating Temperature::
-
-40~+50℃
-
Color:
-
Black Color
-
Environmental Rating::
-
IP65(IP67 as optional)
-
Working time:
-
30 hours
-
SNR:
-
>23
-
FOM:
-
>1350
-
Focusing range:
-
250mm to infinity
-
Operating Voltage:
-
1.5 - 4.2 V
Quick Details
-
Size:
-
114*70*60mm
-
Type:
-
Monocular
-
Magnification:
-
1X
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
DA
-
Model Number:
-
PVS1440
-
Weight:
-
310g(with battery)
-
Effective Visual Distance:
-
>200m
-
FOV:
-
40degree
-
Diopter adjustment range:
-
-5~+5 diopter
-
Exit pupil distance::
-
25mm
-
Operating Temperature::
-
-40~+50℃
-
Color:
-
Black Color
-
Environmental Rating::
-
IP65(IP67 as optional)
-
Working time:
-
30 hours
-
SNR:
-
>23
-
FOM:
-
>1350
-
Focusing range:
-
250mm to infinity
-
Operating Voltage:
-
1.5 - 4.2 V
Products Description

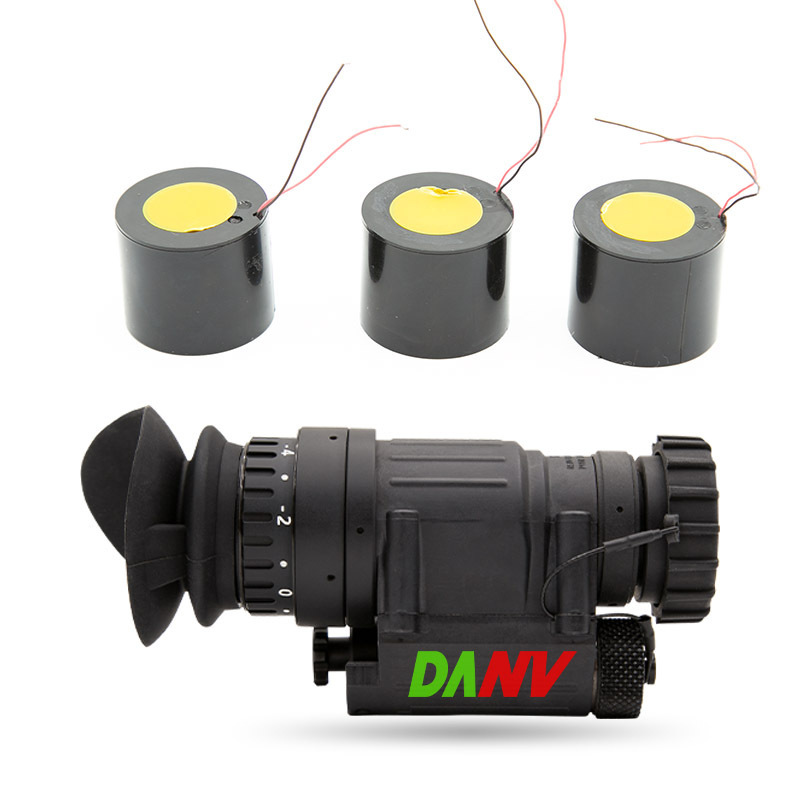

DA PVS14 is
portable and multi-functional night vision monocular
MAIN FEATURES：
Small in size, compact rugged goggle system.
Waterproof and fog resistant. High resolution.
Two different color imaging effects of white and green.
Multipurpose: handheld, helmet support, head support.
Recommend Products
Specification
|
Model
|
DA-PVS14
|
|
Name
|
Night vision monocular
|
|
Magnification
|
1x
|
|
FOV
|
40°
|
|
Exit pupil distance
|
25mm
|
|
Exit pupil diameter
|
14mm
|
|
Range of visibility
|
-5~+5
|
|
F number
|
1.2
|
|
Lens system
|
25mm
|
|
Focus range
|
250mm to infinity
|
|
Size
|
114*70*60mm
|
|
Weight
|
310g(with battery)
|
|
Power supply
|
AA batery or CR123
|
|
Working time
|
30hours
|
|
IIT
|
Euro Gen3
|
|
Cathode type
|
18mm S-25
|
|
Resolution
|
More than 60 Lp/mm
|
|
FOM
|
＞1350
|
|
Operating temperature
|
-20℃〜50℃（Can customize -40℃〜55℃）
|
|
Storage temperature
|
-40℃〜60℃
|
|
Waterproof
|
IP65（IP67 Optional）
|
