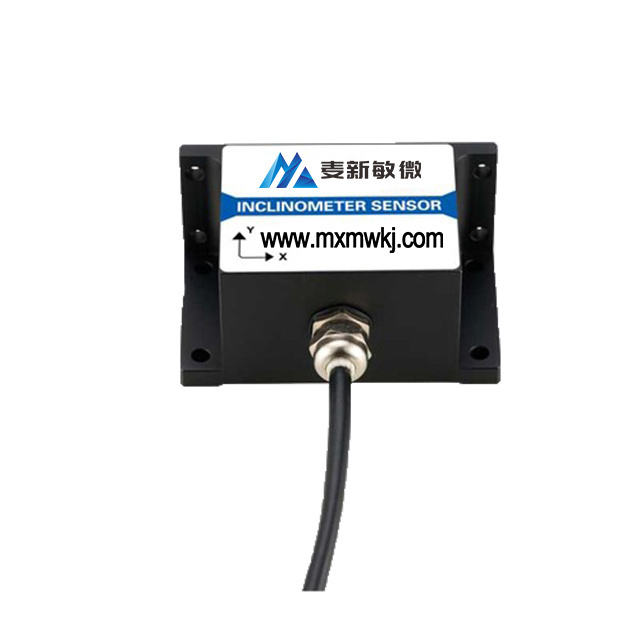

Quick Details
-
Mounting Type:
-
None
-
Description:
-
inclinometer
-
Model Number:
-
T70-B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Maixinminwei
-
Brand:
-
Double-axis inclination monitoring
-
Operating Temperature:
-
-40~+85℃
-
Frequency:
-
100
-
Output Configuration:
-
CAN2.0, CAN
-
Voltage Rating:
-
DC 9~36V (DC5V can be customized)
-
Humidity Range:
-
IP67
-
Size / Dimension:
-
68*16*8mm
-
Measuring Range:
-
biaxial 0~±90°(optional), single axis 0-±180°
-
Resolution:
-
0.3°, 0.1°, 0.01° optional
-
Application:
-
Angle control of various engineering machinery etc
-
Product name:
-
Dual-axis inclination monitoring (single-axis optional)
-
Double-axis:
-
0~±90° optional
-
Single axis:
-
0-±180° (0-360°) optional
-
Output mode:
-
CAN2.0, CAN
-
Voltage input:
-
DC 9~36V (DC5V can be customized)
-
Accuracy:
-
0.3°, 0.1°, 0.01° optional
-
Setting:
-
Relative/absolute zero setting
-
Wide temperature working:
-
-40~+85℃
-
Protection level:
-
IP67 (IP68 can be customized)
-
Small size:
-
(81.5*48*40mm) (can be customized)
Quick Details
-
Usage:
-
tilt monitoring
-
Series:
-
inclinometer
-
Features:
-
Shock and vibration resistance
-
Mounting Type:
-
None
-
Description:
-
inclinometer
-
Model Number:
-
T70-B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Maixinminwei
-
Brand:
-
Double-axis inclination monitoring
-
Operating Temperature:
-
-40~+85℃
-
Frequency:
-
100
-
Output Configuration:
-
CAN2.0, CAN
-
Voltage Rating:
-
DC 9~36V (DC5V can be customized)
-
Humidity Range:
-
IP67
-
Size / Dimension:
-
68*16*8mm
-
Measuring Range:
-
biaxial 0~±90°(optional), single axis 0-±180°
-
Resolution:
-
0.3°, 0.1°, 0.01° optional
-
Application:
-
Angle control of various engineering machinery etc
-
Product name:
-
Dual-axis inclination monitoring (single-axis optional)
-
Double-axis:
-
0~±90° optional
-
Single axis:
-
0-±180° (0-360°) optional
-
Output mode:
-
CAN2.0, CAN
-
Voltage input:
-
DC 9~36V (DC5V can be customized)
-
Accuracy:
-
0.3°, 0.1°, 0.01° optional
-
Setting:
-
Relative/absolute zero setting
-
Wide temperature working:
-
-40~+85℃
-
Protection level:
-
IP67 (IP68 can be customized)
-
Small size:
-
(81.5*48*40mm) (can be customized)
Specification
|
Parameter
|
Conditions
|
T70-B
|
|
|
Unit
|
||||
|
Accuracy
|
-40～85℃
|
0.3
|
0.1
|
0.01
|
°
|
||||
|
Resolution
|
-40～85℃
|
0.05
|
0.01
|
0.002
|
°
|
||||
|
Measuring axis
|
|
X, Y axis
|
X, Y axis
|
X, Y axis
|
|
||||
|
Frequency response
|
DC response
|
100
|
100
|
100
|
Hz
|
||||
|
Long term stability
|
-40～85℃
|
<0.032
|
<0.15
|
<0.02
|
°
|
||||
|
Zero temperature drift
|
85°
sensor<-40° |
±0.05
|
±0.01
|
±0.002
|
°/℃
|
||||
|
Measuring range
|
|
Biaxial ±90
Single axis ±180 |
|
|
°
|
||||
|
Power-on start time
|
|
0.2
|
|
|
s
|
||||
|
Response time
|
|
0.01
|
|
|
s
|
||||
|
Zero Bias
(0 ° output) |
4-20mA output -12mA
0-20mA output -10mA 0-24mA output -12mA |
|
|
|
|
||||
|
Output signal
|
0-20mA, 4-20mA, 0-24mA optional
|
|
|
|
|
||||
|
Average working hours
|
≥55000 hours/time
|
|
|
|
|
||||
|
Impact resistance
|
20000g, 0.5ms, 3 times/axis
|
|
|
|
|
||||
|
Anti-vibration
|
10grms、10～1000Hz
|
|
|
|
|
||||
|
Insulation resistance
|
≥100MΩ
|
|
|
|
|
||||
|
Waterproof level
|
IP67
|
|
|
|
|
||||
|
Cable wire
|
Standard 1.5 meter-length, wear-resistant, oil-proof, wide temperature, shielded cable 6*0.2mm2
|
|
|
|
|
||||
|
Weight
|
185g (excluding packaging box)
|
|
|
|
|
||||
2. Electrical indicators
Glossary:
Resolution: It refers to the minimum change value of the measured value that the sensor can detect and distinguish within the measurement range.
Accuracy: Absolute accuracy refers to the comprehensive error of absolute linearity, repeatability, hysteresis, zero point
deviation, and horizontal axis error of the sensor under normal temperature conditions.
Long-term stability: Long-term stability refers to the deviation between the maximum value and the minimum value of the sensor after one year of long-term work under normal temperature conditions.
Response time: Response time is the time required for the sensor output to reach the standard value when the sensor angle changes once.
Resolution: It refers to the minimum change value of the measured value that the sensor can detect and distinguish within the measurement range.
Accuracy: Absolute accuracy refers to the comprehensive error of absolute linearity, repeatability, hysteresis, zero point
deviation, and horizontal axis error of the sensor under normal temperature conditions.
Long-term stability: Long-term stability refers to the deviation between the maximum value and the minimum value of the sensor after one year of long-term work under normal temperature conditions.
Response time: Response time is the time required for the sensor output to reach the standard value when the sensor angle changes once.
|
Parameter
|
Condition
|
Minimum value
|
Typical value
|
Maximum value
|
Unit
|
|
Supply
voltage |
|
9
|
12
|
36
|
V
|
|
Working current
|
no load
|
|
10
|
|
mA
|
|
Output load
|
resistive
|
0
|
|
500
|
kΩ
|
|
Operating temperature
|
|
-40
|
|
+85
|
℃
|
|
Storage temperature
|
|
-55
|
|
+125
|
℃
|
