- Product Details
- {{item.text}}
Quick Details
-
Color Temperature(CCT):
-
4000K-5000K
-
CRI (Ra>):
-
80
-
Place of Origin:
-
GUA
-
Model Number:
-
RDS-TCS45-4FT277-CCT-XXX
-
Input Voltage(V):
-
120-277v/347V
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
3900-5850lm
-
Product Name:
-

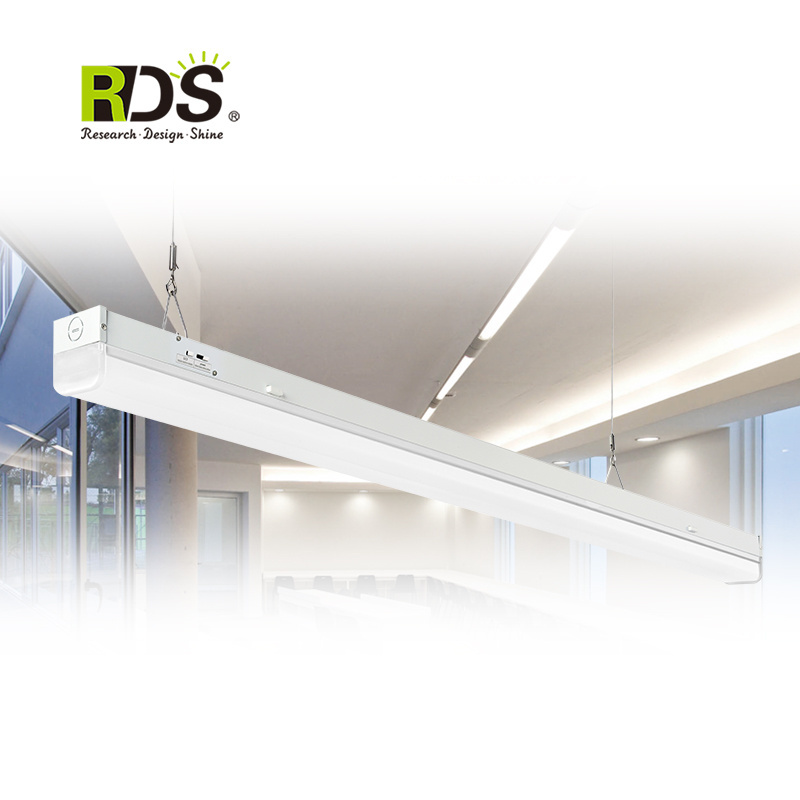

Sensor Ceiling Suspended 0-10V Dimming LED Batten Light
-
Power:
-
Selectable Power 30W/35W/40W/45W
-
Length:
-
4FT
-
Size:
-
48*2.68*2.91"
-
CCT:
-
Selectable 3000K-4000K-5000K
-
Voltage:
-
120-277v
-
Beam Angle:
-
120°
-
Material:
-
Iron
-
LED Chip:
-
High lumens SMD2835
-
Options:
-
Motion Sensor and Emergency power supply
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
IP Rating:
-
IP44
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
4000K-5000K
-
CRI (Ra>):
-
80
-
Place of Origin:
-
GUA
-
Model Number:
-
RDS-TCS45-4FT277-CCT-XXX
-
Input Voltage(V):
-
120-277v/347V
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
3900-5850lm
-
Product Name:
-
Sensor Ceiling Suspended 0-10V Dimming LED Batten Light
-
Power:
-
Selectable Power 30W/35W/40W/45W
-
Length:
-
4FT
-
Size:
-
48*2.68*2.91"
-
CCT:
-
Selectable 3000K-4000K-5000K
-
Voltage:
-
120-277v
-
Beam Angle:
-
120°
-
Material:
-
Iron
-
LED Chip:
-
High lumens SMD2835
-
Options:
-
Motion Sensor and Emergency power supply
Product Description
Detailed Images
commercial led batten ceiling lamp
easy open built-in Emergency and motion sensor
industrial led batten light
linkable and easy installation surface &
suspending mounted
0-10v dimming led batten light
130lm/w high lumens 2835 LED chip
Product Presentation
|
Item No
|
RDS-TCS45-4FT
|
RDS-TCS90-8FT
|
RDS-TCS35-4FT
|
RDS-TCS64-8FT
|
RDS-TCS90-8FT
|
||||
|
Power
|
Selectable 30W/35W/40W/45W
|
Selectable 60W/70W/80W/90W
|
35W
|
64W
|
90W
|
||||
|
Color
|
Selectable
3000K-4000K-5000K
|
Selectable
3000K-4000K-5000K
|
Single 4000K/5000K
|
Single 4000K/5000K
|
Single 4000K/5000K
|
||||
|
Luminous Flux
|
3900-5850lm
|
7800-11700lm
|
4550lm
|
8320lm
|
11700lm
|
||||
|
Efficiency
|
130lm/w
|
130lm/w
|
130lm/w
|
130lm/w
|
130lm/w
|
||||
|
Dimensions
|
48*2.68*2.91"
|
96*2.68*2.91"
|
48*2.68*2.91"
|
96*2.68*2.91"
|
96*2.68*2.91"
|
||||
|
Input Voltage
|
AC120-277V and AC120-347V
|
|
|
|
|
||||
|
Dimming
|
0-10V dimming
|
|
|
|
|
||||
|
Optional
|
Microwave Sensor and emergency power
|
|
|
|
|
||||
Related Products
Company Introduction
Shenzhen Ruidisi Lighting Co., Ltd, founded in 2012.We have been focusing on LED lighting for more than eight years. With an excellent team in R&D, production and sales,we are always providing OEM/ODM service and developing various customized products to our customers. We own the leading technology and application system of LED lighting.
Our main products are led linear high bay light,UFO led high bay light,led strip fixtures,led wraparound light,led troffer light
and led vapor light.Those products are certified as: ETL,CETL,DLC PREMIUM,FCC SAA,CE,ROHS,ISO 9001. All products are 5 years warranty.Our products are widely used in hotel, shopping mall,office building, railway station, museum,school, showroom and so on. Numerous successful cases settle the leading position of Ruidisi Lighting in LED lighting field.
We have always maintain high standards for ourselves: light design, high quality, good service for customer,those are our pursuit of the basic.We’ll always produce the high quality products on the market to thanks to our customers and the market.We believe that our efforts and focusing will make our cooperation better and longer.We would like to thank all my customers for their support and trust.We believe that our efforts and focusing will make our cooperation better and longer.Every year we are building on our existing capabilities to provide our customer with flexible solutions to meet their exact needs. Allow us the opportunity to be part of your business and let’s grow together.
Our main products are led linear high bay light,UFO led high bay light,led strip fixtures,led wraparound light,led troffer light
and led vapor light.Those products are certified as: ETL,CETL,DLC PREMIUM,FCC SAA,CE,ROHS,ISO 9001. All products are 5 years warranty.Our products are widely used in hotel, shopping mall,office building, railway station, museum,school, showroom and so on. Numerous successful cases settle the leading position of Ruidisi Lighting in LED lighting field.
We have always maintain high standards for ourselves: light design, high quality, good service for customer,those are our pursuit of the basic.We’ll always produce the high quality products on the market to thanks to our customers and the market.We believe that our efforts and focusing will make our cooperation better and longer.We would like to thank all my customers for their support and trust.We believe that our efforts and focusing will make our cooperation better and longer.Every year we are building on our existing capabilities to provide our customer with flexible solutions to meet their exact needs. Allow us the opportunity to be part of your business and let’s grow together.
Certificate
FAQ
A1: We are manufacturer with more than 10 years working experience.
Q2: What is your quality control process?
A2: We are certified with ISO-9001, and strictly follow the ISO procedures.
Q3: Do you have any certification?
A3: Our products have CE, RoHS, ETL ,CETL and DLC certificates.
Q4: Can I get samples from your factory?
A4: Yes, we can provide you samples for evaluate.
Q5: What is you delivery time?
A5: Our usual delivery time is 25 days. If your order is urgent, we can deliver it in less time.
Q6:
What is the standard of package?
A6:
Our standard packaging is neutral without brand, we can do OEM service, customization and design packaging for you.
