Quick Details
-
WIFI:
-
NO
-
Network:
-
N/A
-
Customized support:
-
N/A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ELEGRP
-
Model Number:
-
L0630C
-
Key words:
-
twist lock connector
-
NEMA:
-
L6-30R
-
Rating:
-
30Amps 250V
-
Terminal Accom.:
-
#16AWG to #10AWG
-
Flammability:
-
Rated V-2 per UL94
-
Operating Temperature:
-
-40℃ to 60℃
-
Housing Material:
-
Nylon
-
Color:
-
Black/White
-
Warranty:
-
2 Years
-
Certification:
-
CUL&US E355464
Quick Details
-
Rated Voltage:
-
250V
-
Rated Current:
-
30A
-
Application:
-
Residential/Commercial/Industrial
-
WIFI:
-
NO
-
Network:
-
N/A
-
Customized support:
-
N/A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ELEGRP
-
Model Number:
-
L0630C
-
Key words:
-
twist lock connector
-
NEMA:
-
L6-30R
-
Rating:
-
30Amps 250V
-
Terminal Accom.:
-
#16AWG to #10AWG
-
Flammability:
-
Rated V-2 per UL94
-
Operating Temperature:
-
-40℃ to 60℃
-
Housing Material:
-
Nylon
-
Color:
-
Black/White
-
Warranty:
-
2 Years
-
Certification:
-
CUL&US E355464
Product Description
|
Features
|
|
|
【Toughened nylon construction】
|
Insulated and solid nylon housing will keep non-current carrying parts from becoming energized and won’t crack in high abuse applications
|
|
【Tight lock】
|
Secure locking design that plug is locking tightly on electrical equipment to keep it from vibrating loose and falling out. Internal cord clamp assures secure wire connection
|
|
【Safety enough】
|
Each wire slide into a separate tube and to be tightened to prevent shorting or stray strands and flexible rubber dust seal prevents moisture and contaminants from entering the wiring chamber
|
|
【Good to use】
|
Ergonomic fluted body design with radial grip ridge is ideal for gripping, turning and pulling
|
|
【Easy installation】
|
Face and body feature alignment make it easy to assemble, and grip screws are installed from the same side to make tightening easy
|
|
【Copper brass blades】
|
Formed from a single piece of solid brass to reduce friction and overheating, providing excellent conductivity
|
|
【Wide application】
|
perfect for many electrical equipment, such as generators, cleaning machine, power tools (saws, drills, air compressors), lawn equipment, cutting machine, vacuum cleaner, pumps, household electrical appliances, chargers, etc
|
Specification
|
Item
|
Parameter
|
|
Brand Name
|
ELEGRP
|
|
Model Number
|
L0630C
|
|
Max. Current
|
30A
|
|
Max. Voltage
|
250V
|
|
NEMA
|
L6-30R
|
|
Product name
|

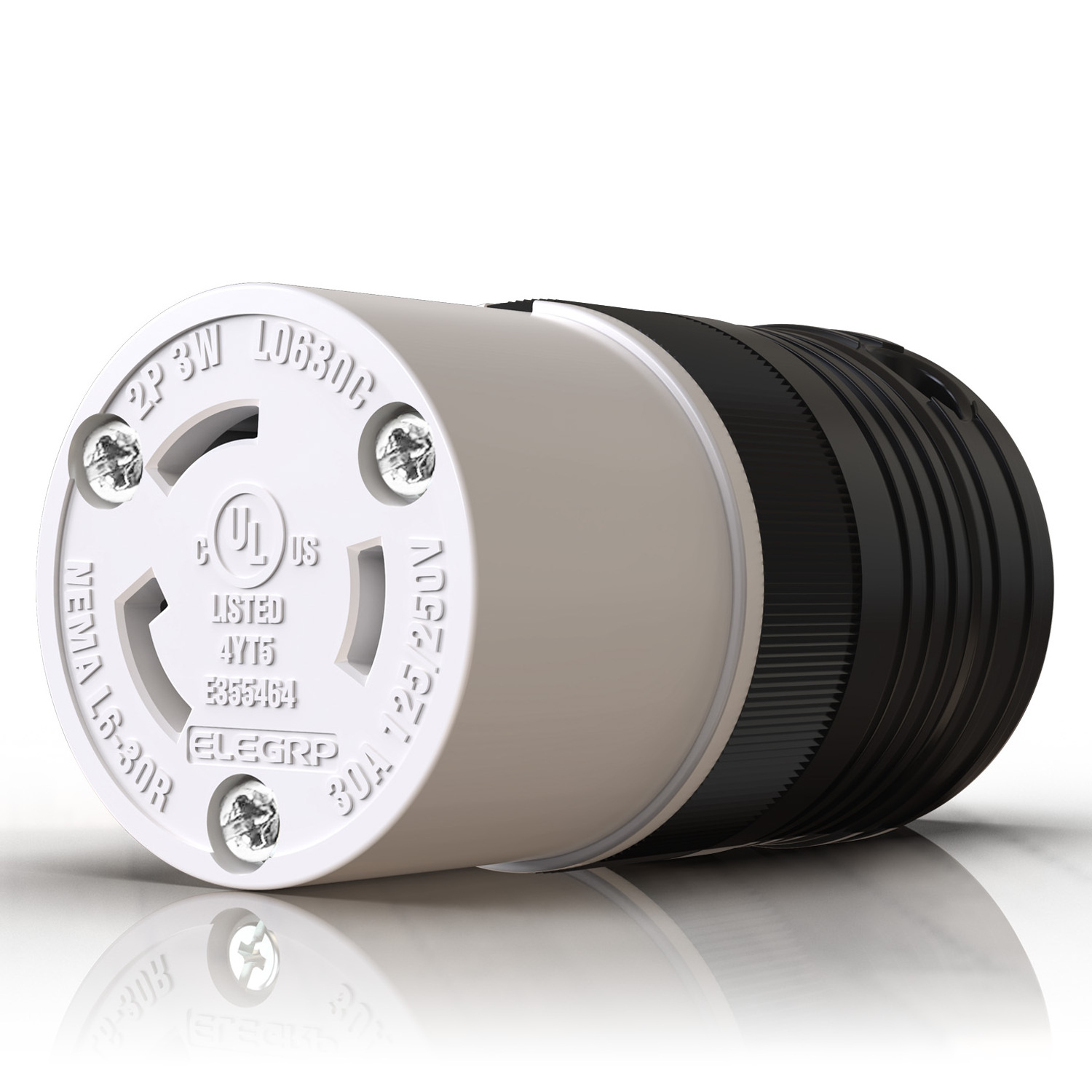

L6-30R Locking Connector 30 Amp 250V 3-Wire Twist Lock Connector
|
|
Terminal Accept
|
#16 to #10 AWG
|
|
Flammability
|
Rated V-2 per UL94
|
|
Operating Temperature
|
-40℃ to 60℃
|
|
Color
|
Black/White
|
|
Certificate
|
UL&CUL
|
|
Type
|
Twist Lock plug
|
|
Payment Term
|
T/T
|
|
Place of Origin
|
Ningbo port or Shanghai Port
|
|
Warranty
|
2 years
|
|
Standards and Certifications
|
WD-6；ANSI; UL& CSA
|
Packing & Delivery
100pcs in a master carton box.
