- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Stavix
-
Model Number:
-
MW11104K7-04
-
Product name:
-
4CH wireless nvr kit
-
Feature:
-
Night Vision
-
Lens:
-
4mm,6mm,8mm(optional)
-
Camera:
-
4 Pcs Cameras
-
IR Distance:
-
20m IR Distance
-
Image Sensor:
-
1/2.9" CMOS
-
Power Supply:
-
DC 12V 2A
Quick Details
-
Network:
-
wifi, TCP, Ip
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Special Features:
-
NIGHT VISION, Two-way Audio, Human Motion Tracking, Motion Detection, Waterproof / Weatherproof
-
Place of Origin:
-
China
-
Brand Name:
-
Stavix
-
Model Number:
-
MW11104K7-04
-
Product name:
-
4CH wireless nvr kit
-
Feature:
-
Night Vision
-
Lens:
-
4mm,6mm,8mm(optional)
-
Camera:
-
4 Pcs Cameras
-
IR Distance:
-
20m IR Distance
-
Image Sensor:
-
1/2.9" CMOS
-
Power Supply:
-
DC 12V 2A

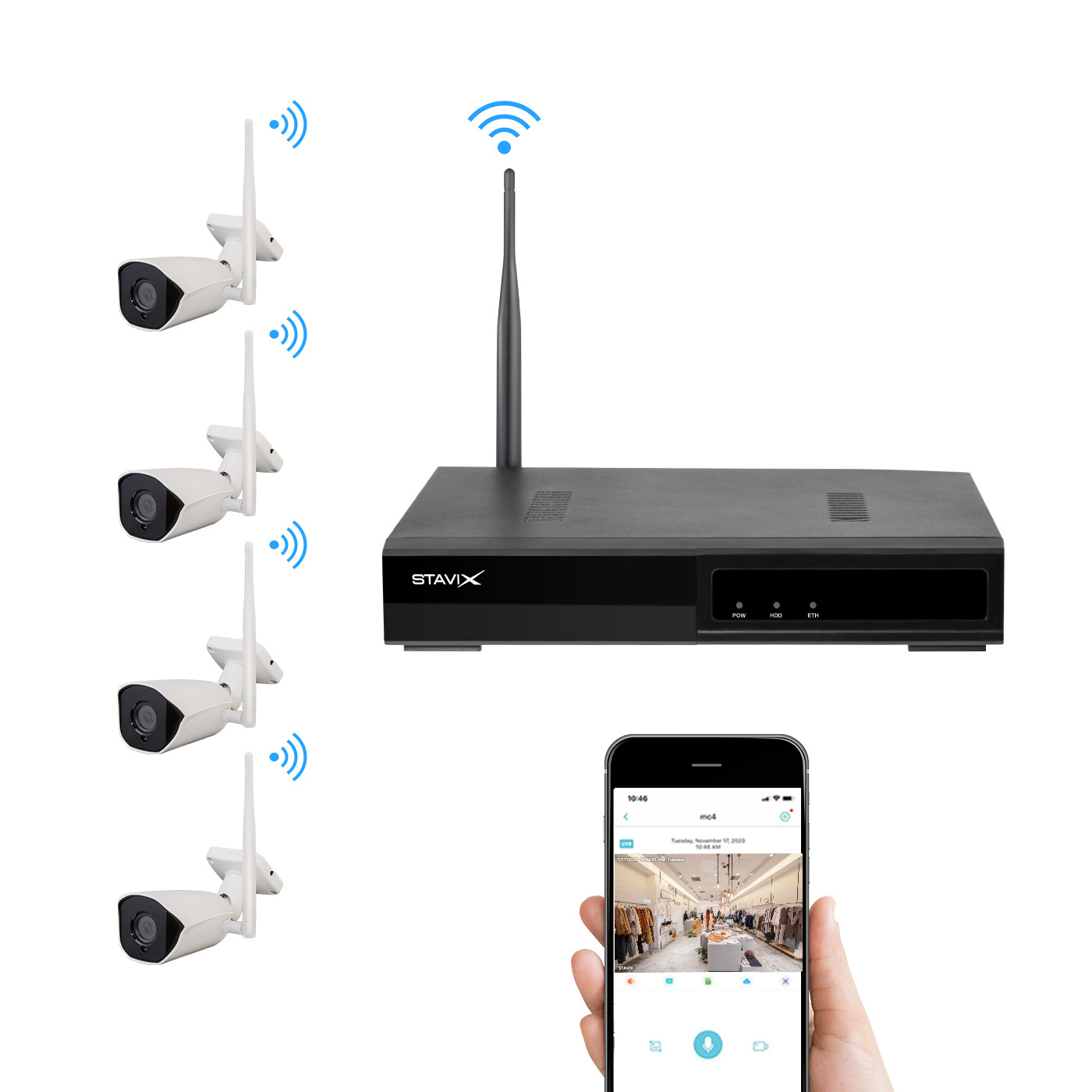

4 channels wireless network video recorder kits ( Model : MW11104K7-04 )
|
Network Video Recorder |
||
|
RECORDING |
Compression |
H.265/ H.264 |
|
Resolution |
720P/960P/1080P |
|
|
Recording Mode |
Exact Search, Time/Date, Motion Detection, Alarm |
|
|
Search Mode |
All, Channel, Time/Date, Motion Detection |
|
|
Playback Function |
Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screenm, Backup |
|
|
Backup Mode Compatibility |
USB Device; Network |
|
|
EXTENSION |
Port Type |
*1 SATA port |
|
Internal Storage Extension
|
up to 8TB HDD (3.5 inch) |
|
|
OTHERS |
Operating Temperature |
-10 ℃~+ 50 ℃ |
|
Working Humidity |
10% ~ 90% |
|
|
Power |
DC 12V 2A external adaptor |
|
|
Consumption (excl. HDD) |
Max 24W |
|
|
Dimensions |
260*224*48mm |
|
|
Weight |
720g (without HDD) |
|
|
IP Camera |
||
|
CAMERA CONFIG |
Image Sensor Config |
2MP 1/2.9” CMOS |
|
Shutter |
Auto |
|
|
Lens |
4mm @F2.4 |
|
|
Lens Mount |
M12 |
|
|
Day & Night |
Automatic IR cut filter |
|
|
Noise Reduction (DNR) |
3D Noise Reduction |
|
|
Dynamic Range |
Digital Wide Dynamic |
|
|
IMAGE |
Resolution |
1920 × 1080 pixel |
|
Frame |
30 FPS, Support 5~30 FPS adjustable |
|
|
COMPRESSION |
Video Compression |
H.265 |
|
H.265 Encoding |
H.265 Main Profile |
|
|
Video Compression Rate |
Main stream : 1920 × 1080, 1280×960, 1280×720; |
|
|
Sub_stream:720×576,640×480, 640×360, 352×288; |
||
|
OTHERS |
Operating Condition |
Temperature: -10 °C to +50 °C
|
|
Power Supply |
DC 12V±5% 1A |
|
|
Power Consumption |
Max 12W |
|
|
Size |
65.54*80.81*178.17mm |
|
|
Weight |
340g (excluding package) |
|
Main Features
- Motion Detection, Remove Alarm
- Multiple using scenarios as you wish
- 1080P extreme image quality; 15 Meters IR Night Vision
- Strong compatibility, Support APP/NVR/CMS/Web for monitoring
- Support split screen preview ,simultaneous playback of multiple monitoring screens
- Signal transmission remains stable even at long distances and can easily penetrate walls
