- Product Details
- {{item.text}}
Quick Details
-
detectig method:
-
PIR
-
detect diameter:
-
6~8m
-
working voltage:
-
12V
-
detecting angle:
-
360°
-
alarm output:
-
NC
-
installation:
-
2.4 ~ 3.6m height
-
working current:
-
8mA~25mA
-
warranty:
-
12 months
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
neutral
-
Model Number:
-
YH-360
-
detectig method:
-
PIR
-
detect diameter:
-
6~8m
-
working voltage:
-
12V
-
detecting angle:
-
360°
-
alarm output:
-
NC
-
installation:
-
2.4 ~ 3.6m height
-
working current:
-
8mA~25mA
-
warranty:
-
12 months

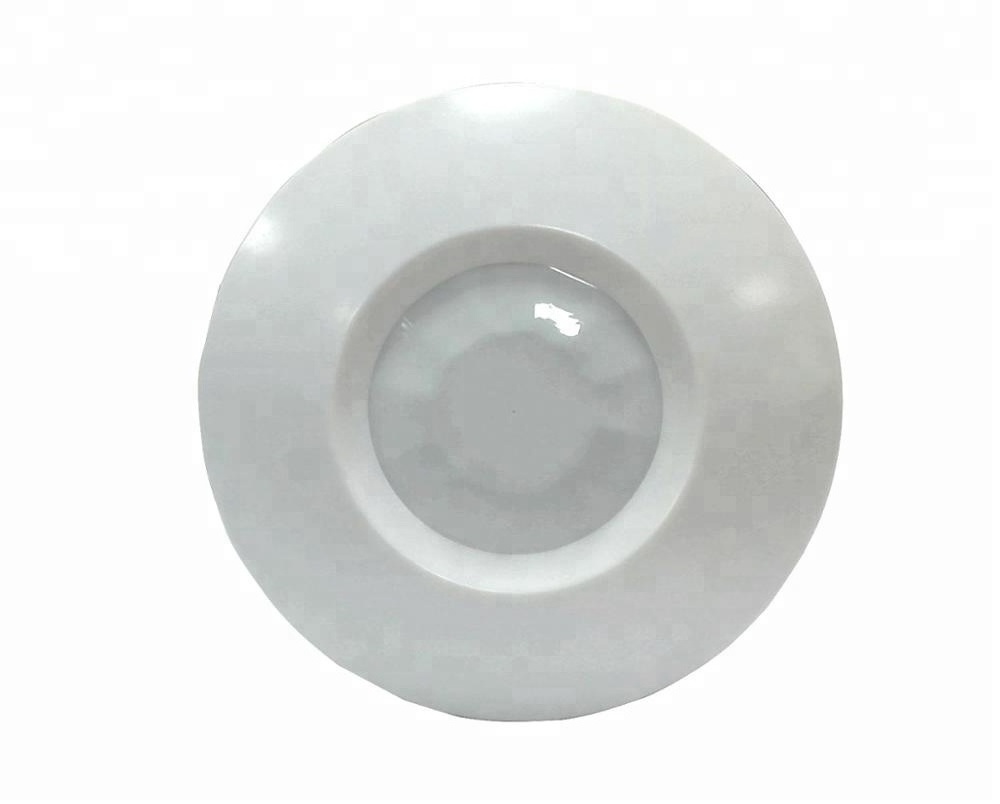

YH-360 Passive Infrared Sensor Ceiling mounted PIR Detector 360 Degree Full Angle infrared Motion Alarm Wired 12V PIR Detector
Technical Parameter:
| model | YH-360 ceiling mounted PIR detector |
| detectig method | dual PIR |
| detecting diameter | 6~8m |
| detecting angle | 360° |
| alarm output | NC |
| installation | 1.8m~2.4m(on wall or conner) |
| working voltage | 12V |
| working current | 8mA~25mA |
| working environment | -10°C-50°C |
| anti-EMI | >20V/M(20MHz-1000MHz) |
| tamper-proof | NC |
| anti-light interference | >9000LUX |
| dimension | 86*86*25mm |
| sensor | low noise ,high sensitivity dual beams infrared |
| alarm output | NC |
| guarantee | One year |
Q: 1. How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don't worry for it, as we wanna long-term business cooperation with customers.
Q: 2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 3. What is the lead time?
A: Small qty orders need 3~7 working days, big qty order usually needs 7~25 working days depends on order qty.
Q: 4. How to proceed the order if I have logo to print?
A: You need to send us the clear picture of your logo, we will check if ok we will make sampling and take picture for your confirmation before mass production.
Q: 5. How do you ship the goods?
A: We usually ship by courier express (DHL,UPS,FedEx,TNT,etc.) , by Air, by Sea at your request.
Q: 6. Do you offer guarantee for the products?
A: Yes sure, we offer one year warranty for the products.
