Quick Details
-
Name:
-
manual aluminium telescopic crank mast tower
-
Extended length:
-
2-30m
-
Closed length:
-
1-4m
-
Top payload:
-
5kg-80kg
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
Surface treatment:
-
Power painting
-
Color:
-
green or other
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
Quick Details
-
Brand Name:
-
talents
-
Model Number:
-
TAL-M001
-
Place of Origin:
-
Tianjin, China
-
Name:
-
manual aluminium telescopic crank mast tower
-
Extended length:
-
2-30m
-
Closed length:
-
1-4m
-
Top payload:
-
5kg-80kg
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
Surface treatment:
-
Power painting
-
Color:
-
green or other
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C

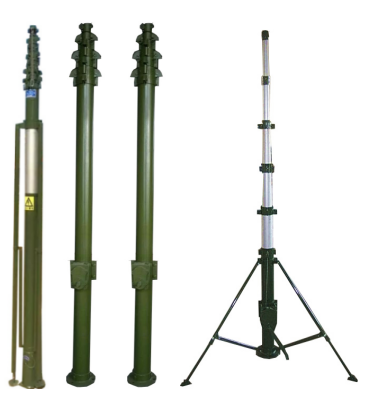

18m manual aluminium telescopic crank mast tower
Specifications of aluminium telescopic crank mast :
Closed length:
1-4.0m (Bottom base included)
Extended length:
2-45 m(Bottom base included)
Max.payload:
300kgs
Lifting method:
Hand lifting
Material; Main Pole: aluminum alloy , stainless steel, fiberglass
Bottom base,rotation platform and tripod: iron steelThe whole unit will be in green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in green color.
|
Extended height
(m) |
Closed height
(m) |
Section number
|
Top diameter
(mm) |
Bottom diameter
(mm) |
Loading weight
(kg) |
|
4
|
1.47
|
3
|
30
|
50
|
1-15
|
|
5
|
1.20
|
5
|
30
|
80
|
1-15
|
|
6
|
1.50
|
5
|
30
|
70
|
1-15
|
|
6
|
1.30
|
6
|
50
|
160
|
1-60
|
|
6
|
1.70
|
5
|
60
|
130
|
1-50
|
|
8
|
1.65
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
40
|
105
|
1-30
|
|
10
|
2.10
|
6
|
30
|
80
|
1-10
|
|
10
|
1.95
|
7
|
30
|
90
|
1-15
|
|
10
|
1.95
|
7
|
40
|
105
|
1-30
|
|
10
|
1.95
|
7
|
50
|
130
|
1-60
|
|
12
|
2.10
|
8
|
30
|
105
|
1-15
|
|
12
|
2.10
|
8
|
40
|
130
|
1-30
|
|
15
|
2.40
|
8
|
30
|
105
|
1-15
|
|
15
|
2.40
|
8
|
40
|
130
|
1-30
|
|
18
|
2.45
|
9
|
30
|
130
|
1-10
|
|
18
|
3.00
|
8
|
50
|
150
|
1-30
|
|
20
|
2.90
|
9
|
30
|
130
|
1-10
|
The aluminium telescopic crank mast with energy saving and environmental protection, large play load, low noise, fast lifting, might be of your interest.Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect. It can help lamplight, camera, Antenna, mobile and other equipment rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field.
|
Accessories of
aluminium telescopic crank mast
|
|
|
Main pole
|
1 unit
|
|
Pulling cord box with handle bars
|
3units
|
|
Handle lifting bar
|
2pieces
|
|
Tripod
|
1unit
|
|
Stainless steel sticks
|
6pieces
|
|
Ground anchor
|
3 pieces
|
|
Hand- operated valve (pneumatic mast)
|
1 piece
|
|
Air compressor(pneumatic mast)
|
1 piece
|
|
PU tube(pneumatic mast)
|
2 piece
|
|
Top platform
|
1 piece
|
|
Motor(electric mast)
|
1 piece
|
|
Electrical equipment control box(electric mast)
|
1 unit
|
|
Remote-controller(electric mast)
|
2 piece
|
|
Car clamps (when mouted on the car)
|
1 piece
|
|
Top plate( can be customized)
|
|
Warranty period
Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.
Notes:
(1).With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. When the mast is mounted on the ground, a tripod and pulling cord are useful to firm it.
(2).We will supply you with a top plate for free if you want to connect our mast with antenna or a transmitter. And you could give us the size and specifications of the hole to match it.
(3). With different materials and ways of manufacture, the prices are quite different. The hand lifting mast will be the cheapest one , and the motorized lifting mast wants a few more expensive. In addition to product type, we also need your requirements for the top bearing, height and other particulars. Our quotation depending on all your requirements of this mast.
(4)we will fix a small steel rope with rings between the tops of bottom section and the top section as a lock when the pole is retracted if you needed.
