Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
30000 kg
-

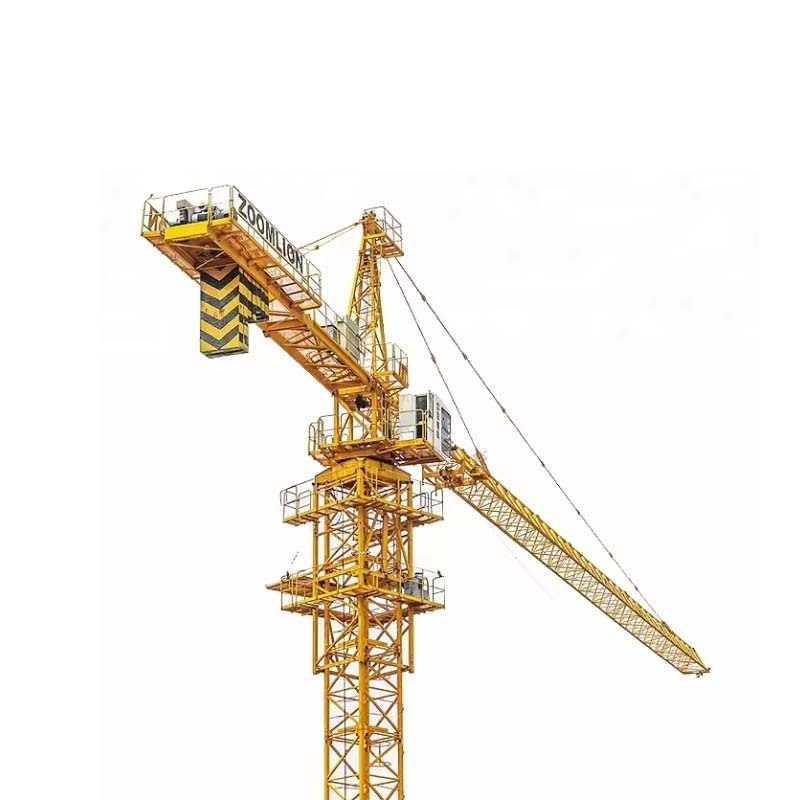

Product name:
-
Tower Crane
-
Max working radius (m):
-
55
-
Free height (m):
-
45
-
Max. height (m):
-
201
Quick Details
-
Rated Loading Capacity:
-
1.5 Ton
-
Max. Lifting Height:
-
15M
-
Marketing Type:
-
New Product
-
Place of Origin:
-
China
-
Weight (KG):
-
30000 kg
-
Product name:
-
Tower Crane
-
Max working radius (m):
-
55
-
Free height (m):
-
45
-
Max. height (m):
-
201
Products Description
This series of tower cranes, ranging has a horizontal jib frame, a jib trolley radius chang mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with necessary safety devices, these cranes show good speed-control capacity, satisfactory operat stability and high work efficiency .It can be widely used for construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
Product Show
Feature&advantage
1.It has ultra long arm and large coverage area.
2.The standard segment section is wide. Rigidity is good. Complete machine is stable and swings slightly
when craning.
3.The standard segment principal branch is big.
4.The electrical system uses domestic high quality or importing parts. Its performance is stable and reliable.
5.The standard segment, draw bar, top-bottom turntable and other major components is welded by CO2 which penetrates deeply.
6.The slewing mechanism adopts winding motor which starts smoothly and reliably and places conveniently and efficiently.
7. Hoisting mechanism with good performance in speeding, lifting and declining smoothly.
Details Images
Product Paramenters
|
Jib length
|
60m
|
|
Boom end lifting weight
|
6.0t
|
|
Lifting capacity
|
50t
|
|
Independent fixed height
|
52m
|
|
Attachment height
|
196m
|
|
The tower body is integral section
|
2.72mx2.72mx4.0m
|
|
Lifting mechanism
|
160LVF260B
|
|
Power
|
160KW
|
|
Rope capacity
|
380m
|
|
Speed
|
3.2min
|
|
Slewing mechanism
|
22RVF
|
|
Power
|
2x11KW
|
|
Rotary speed
|
0-0.6r/min
|
