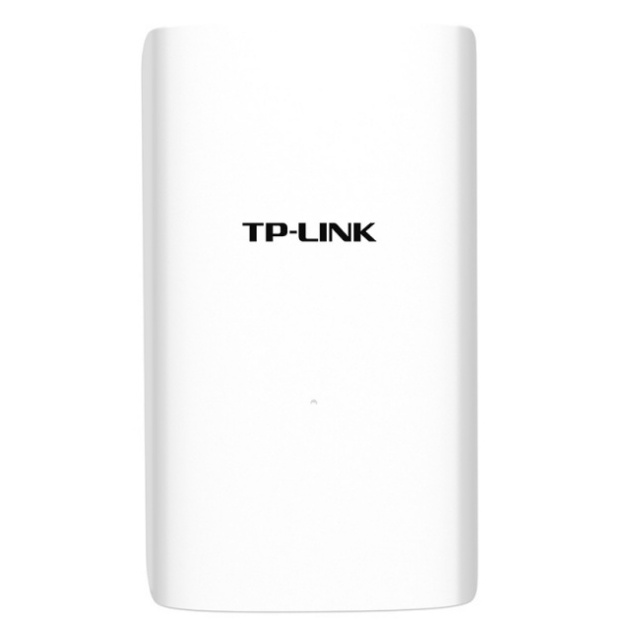

TP-LINK hot sale Outdoor gigabit PoE switch dustproof and waterproof switch poe TL-SF1005P-S30

TP-LINK hot sale Outdoor gigabit PoE switch dustproof and waterproof switch poe TL-SF1005P-S30

FOB Reference Price: Get Latest Price

≥10 Pieces

US $17.8

≥50 Pieces

US $15.9

≥300 Pieces

US $13.5

≥1000 Pieces

US $11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TP-LINK

Model Number:: TL-SF1005P-S30

Place of Origin:: China

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 1000M

Brand Name:: TP-LINK

Model Number:: TL-SF1005P-S30

Place of Origin:: China

Product Description

Expand poe power supply ports

Extend data transmission distance

It realizes multi-port long-distance PoE power supply

while extending the data transmission distance

4 PoE OUT port + 1 PoE IN port

The TL-SF1005P-S30 integrates PoE power supply and PoE receiving,

supports IEEE 802.3af/at PoE standard,

and the maximum PoE output power of the whole unit is 30W

Ports 1 to 4 support POE power supply and transfer data through network cables.

Port 5 supports PoE power supply and can bepowered on with a network cable.

No external power supply is required.

IP55 dustproof and waterproof

Various installation methods:

Support derrick and Wall-mounted installation

Suitable for more scenarios

Technical Standards	IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Ports	5 10/100Mbps RJ45 ports, of which ports 1-4 support standard PoE power supply
Indicator Lights	* 1 Power indicator (white light) per device * 1 Link/Act indicator (yellow-green light) per port
Network Media	* 10BASE-T: Category 3, 4, 5 unshielded twisted pair (≤100 meters) * 100BASE-TX: Category 5 and above unshielded twisted pair (≤100 meters)
Performance	* Store-and-forward * Supports 2K MAC address table depth
Use of the environment	* Operating temperature: -30℃～65 * Storage temperature: -40℃～70 * Operating humidity: 10%～90%RH non-condensing * Storage humidity: 5%～90%RH non-condensing * IP55 rated dustproof and waterproof (positive vertical installation required)
Dimensions	170mm * 100mm * 38.5mm
Power Supply	5 ports support standard PoE power supply, no need for external power supply
Installation	Wall-mounted or pole-mounted
