Hot Sale Three Screens Display Triple 5 Inch 800x 480 Broadcast SDI Monitor with Metal Frame

FOB Reference Price: Get Latest Price

≥1 Pieces

US $530

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Resolution:: 800x480

Panel Type:: TFT

Place of Origin:: Fujian, China

Backlight Type:: LED

Aspect Ratio:: 16:9

Viewing Angle:: 70°/70°(L/,R) 50°/70°(U/D)

Inputs:: HDMI,3G/HD/SD-SDI,Audio(L/R),Video

Outputs:: HDMI,3G/HD/SD-SDI,Video,3.5mm Audio Jack

Input Voltage:: DC 9V~24V

Quick Details

Screen Size:: 5" x3

Brightness:: 500cd/m

Contrast Ratio:: 500:1

Resolution:: 800x480

Panel Type:: TFT

Place of Origin:: Fujian, China

Backlight Type:: LED

Aspect Ratio:: 16:9

Viewing Angle:: 70°/70°(L/,R) 50°/70°(U/D)

Inputs:: HDMI,3G/HD/SD-SDI,Audio(L/R),Video

Outputs:: HDMI,3G/HD/SD-SDI,Video,3.5mm Audio Jack

Input Voltage:: DC 9V~24V

Hot Sale Three Screens Display Triple 5 Inch 800x 480

Broadcast SDI Monitor with Metal Frame

Product Description

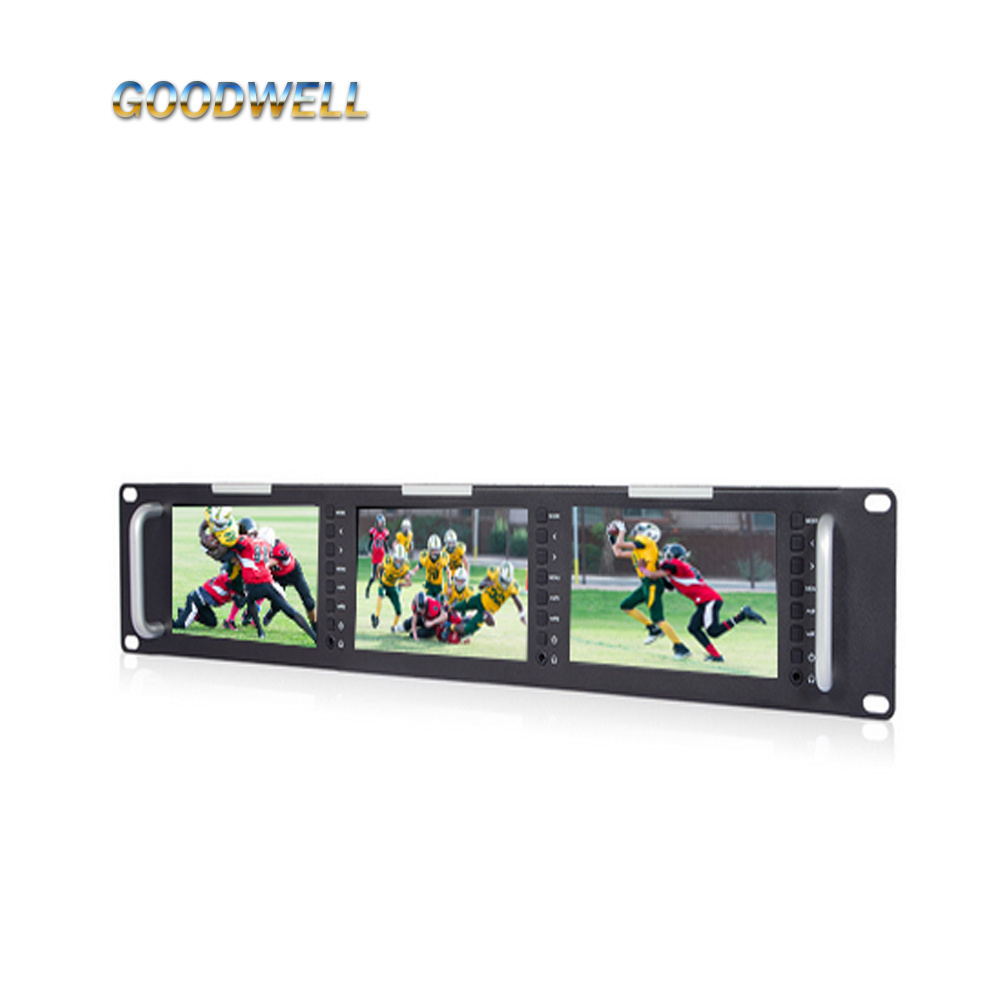

T51 are extremely thin and lightweight.5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD and 3G-SDI video on 2RU rack monitor.GOODWELL Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.

The T51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The viewing angle is Horizontal: 140° / Vertical: 120°.

Easy to operate, time-saving:

Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.

Multi-format Input/ Output: SDI / HDMI / CVBS / Audio

Each LCD of T51 monitor supports:

3G/HD/SD-SDI input × 1

3G/HD/SD-SDI loop output × 1

HDMI input × 1

HDMI loop output × 1

CVBS input × 1

CVBS output × 1

Audio(L/R) input× 1

Stereo Headphone output× 1

USB for Upgrade

3-color Tally Light :

There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.

Stablity and Reliability:

As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.

Main Features:

1. Wide view angle, High resolution 800 x 400, bright, colorful display

2. Slim design and 2RU size

3. HDMI,3G/HD/SD-SDI input and loop-through

4. Special Features:

Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)

Check Field (Red, Green, Blue, Mono)

Pixel to Pixel

Center Marker and Safe Marker (80%, 85%, 90%, 93%, 96%,2.35:1)

Image Flip (Horizontal, Vertical, Hor&Ver)

Image Freeze

5. Monitoring via front panel 3.5mm stereo headphone jacks

6. Built-in LED tally indicators (Red, Green, Yellow)

7. Power using included 12-volt supply or use standard 4-pin XLR

Peaking Focus Assist :

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture.

When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It’s shows Red highlight over parts of the monochrome image in focus.

Center Marker:

Dimension :

Specifications :

Model	T51
Screen size	5"x3
Resolution	800×480 pixels
Dot pitch	0.045(W)×0.135(H) mm
Aspect Ratio	16:9
Brightness	500cd/m ²
Contrast	500:1
Backlight	LED
Response time	10 ms
Viewing Angle	70°/70°(L/R), 50°/70°(U/D)
Inputs	HDMI,3G/HD/SD-SDI,Audio(L/R),Video
Outputs	HDMI,3G/HD/SD-SDI,Video,3.5mm Audio Jack
SDI Support Format	480i/576i
	720p(60/59.94/50/30/29/25/24/23.98)
	1080i(60/59.94/50)
	1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
HDMI Support Format	480i/576i/480p/576p
	1080i (60/59.94/50)
	720p (60/59.94/50/30/29/25/24/23.98)
	1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
Power Consumption	≤25W
Input Voltage	DC 9V~24V
storage Temperature	-20 ℃ ~ 55 ℃
workinging Temperature	-30 ℃ ~ 65 ℃
Install Way	Rack Mount
Unit Size	482.6Lx88Hx34D mm
Unit Weight	1570g
