Generador Electrico 500kVA 400 kVA Gas Generator Parallel Operation 1000 kW Natural Gas Generator

Generador Electrico 500kVA 400 kVA Gas Generator Parallel Operation 1000 kW Natural Gas Generator

FOB Reference Price: Get Latest Price

≥1 Sets

US $81319

≥5 Sets

US $81309

≥10 Sets

US $81299

≥200 Sets

US $81289

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rated Voltage:: 220/380V,230/400V,240/415V,120/208V,346/600V

Rated Current:: 900A

Speed:: 1500RPM/1800RPM

Frequency:: 50HZ/60HZ

Excitation mode:: Brushless self-excitation gas generator

Engine brand:: KTAA38-T gas generator silent box

Engine origin:: China gas generator silent box

Engine power:: 572KW gas generator silent box

Power efficiency:: 0.8(Lag) gas generator silent box

heating value of natural gas:: 3.5MJ/Nm3±5 % gas generator silent box

Intake pressure:: 2.2-3Kpa gas generator silent box

Dimensions L*W*H:: 6000*2400*2800 gas generator silent box

Weight:: 12560kg gas generator silent box

cooling method:: Water tank cooling gas generator

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Haut

Model Number:: KTAA38-T

Rated Voltage:: 220/380V,230/400V,240/415V,120/208V,346/600V

Rated Current:: 900A

Speed:: 1500RPM/1800RPM

Frequency:: 50HZ/60HZ

Excitation mode:: Brushless self-excitation gas generator

Engine brand:: KTAA38-T gas generator silent box

Engine origin:: China gas generator silent box

Engine power:: 572KW gas generator silent box

Power efficiency:: 0.8(Lag) gas generator silent box

heating value of natural gas:: 3.5MJ/Nm3±5 % gas generator silent box

Intake pressure:: 2.2-3Kpa gas generator silent box

Dimensions L*W*H:: 6000*2400*2800 gas generator silent box

Weight:: 12560kg gas generator silent box

cooling method:: Water tank cooling gas generator

Technical Parameters

General Specifications		Accessories List
Diesel Engine	KTAA38-T	Engine Brand	Gas Engine KTAA38-T
Rated power	500KW/625KVA	Gas Engine KTAA38-T	1 set
Diesel engine power	572KW	Haut generator	1 set
Voltage	230 / 400 Volts AC	Self starting control panel	1 set
Current	900A	Starting battery	2pieces
Frequency	50HZ/60HZ	Connecting line	3 roots
Speed	1500RPM/1800RPM	Elbow	1 set
Power efficiency	0.8(Lag)	muffler	1 set
heating value of natural gas	3.5MJ/Nm3±5 %	Charger	1 set
Intake pressure	2.2-3Kpa	Cushioning pad	1 set
Gas consumption	160m³/hr	Spare parts toolbox	1 set
Dimensions LWH	4525×1900×2410	Random appendage	1 set
Weight	8760kg
Approvals	ISO9001, ISO14001, CE
Warranty	12 months or working in 1500 hours, whichever

Product details

Optional

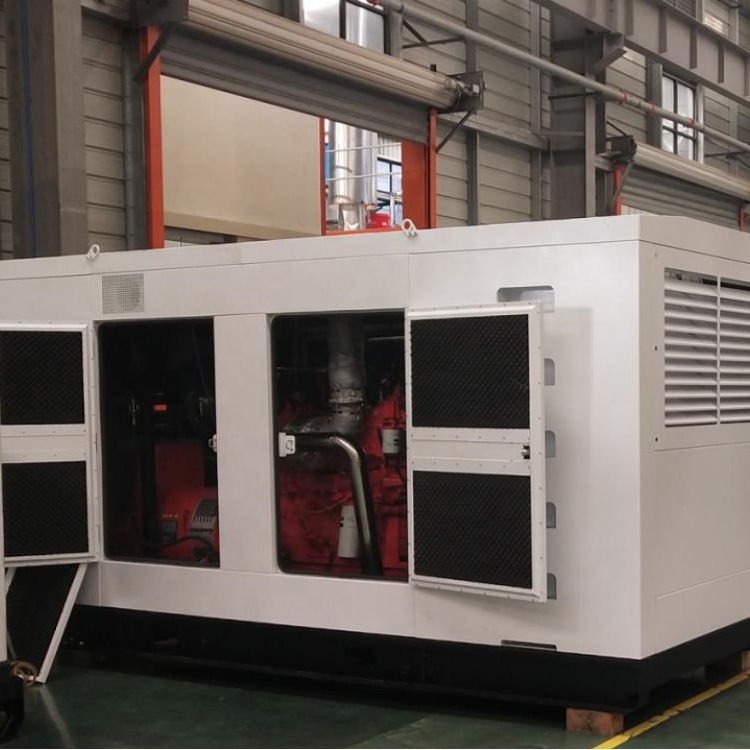

Soundproof/Silent/Mobile trailer Box:

1. Silent box: Acid pickling and phosphating treatment, anti-rust, anti-corrosion

2. Noise Level@7m: 72dB(A)

3. Color optional

4. Oil tank mounted on base frame for 8-12 Hours working

5. Excellent ventilation

6. Security and Safety

Our Advantages:

1. Solve technical problems and provide international warranty service for the engine within 24 hours

2. Design customized products according to customer requirements

3. Polyester varnish, anti-corrosion, protect the appearance and prevent rain

4. Test for two hours before delivery

5. ISO9001 and CE certification, strictly guarantee the quality

Delivery standard configuration:

1. Generator Set Distributor Random Technical Documents

2. Diesel engine, radiator / Muffler / Unit manual

3. Alternator / connection elbow / unit product quality certificate

4. Steel structure chassis / Battery and cable / Control screen

5. MCCB air protection switch / Damping pad / Engine original quality file

6. Generator original quality documents

Warehouse

Detailed/optional

Production process

Production equipment

FAQ

1.What's your power range of natural gas generators?

Answer: We can offer the range from 10kva~3000kva.
