Quick Details
-
Brand Name:
-
GTD
-
Model Number:
-
15D-BK-MODBUS
-
Mechanical Life:
-
100,000 times
-
Material:
-
100% tempered glass
-
color:
-
white black gray
-
icons and words:
-
customized as need, support different languages
-
backlight:
-
different colors LED backlight
-
operate:
-
touch
-
sensitivity:
-
high touch sensitivity
-
technology:
-
RS485 MODBUS
-
voltage:
-
wide 12-24V DC
-
rcu matched:
-
support different RCU modify
Quick Details
-
Max. Current:
-
1A
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTD
-
Model Number:
-
15D-BK-MODBUS
-
Mechanical Life:
-
100,000 times
-
Material:
-
100% tempered glass
-
color:
-
white black gray
-
icons and words:
-
customized as need, support different languages
-
backlight:
-
different colors LED backlight
-
operate:
-
touch
-
sensitivity:
-
high touch sensitivity
-
technology:
-
RS485 MODBUS
-
voltage:
-
wide 12-24V DC
-
rcu matched:
-
support different RCU modify
Product Description

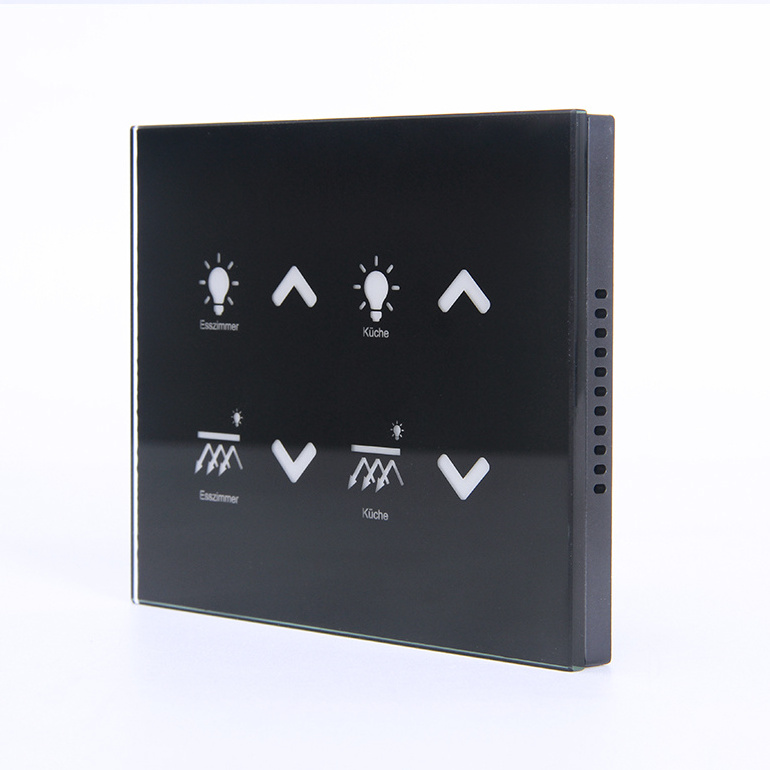

Modern Modbus Smart Hotel Room Touch Glass Switches Solution
Touch switch with MODBUS protocol, the series of product is specially designed for high-end hotel. Coordinated with RCU, and the adoption of high sensitivity capacitive touch screen technology with LED backlight display, it has become the first choice for modern starred hotel.
4mm Thickness Completely Black Tempered Glass Crystal Panel, Anti-scratch, Waterproof, Leak-proof, Easy to Clean.
4mm thickness exclusive design completely tempered glass panel, good crystal effect, it will give you good visual effect, well enhance the hotel level and attraction, will bring more guests and all guests satisfied with distinguished enjoy.
The glass surrounded chamfering processing and tempered processing ensure using safety, even broken, the fragment edges is round, not like ordinary glass broken with edges and corners fragments angular to hurt scratch your hand.
Meanwhile, the glass is anti-scratch, waterproof, leak-proof, easy to clean.
The glass surrounded chamfering processing and tempered processing ensure using safety, even broken, the fragment edges is round, not like ordinary glass broken with edges and corners fragments angular to hurt scratch your hand.
Meanwhile, the glass is anti-scratch, waterproof, leak-proof, easy to clean.
Function Keys, Words, Font, Size, Symbol are Image and Vivid, Customize Available
Function keys text, font, size, symbols icons on the panel are easy for identification, very image and vivid.
Customize design is available with different styles, including different languages according to different countries clients
requirements.
High Sensitivity Easy Touch Operating
This product uses capacitive touch-sensitive control, the reaction rate is very sensitive, large sensitive area, induction speed comparable to the iPhone.
This product uses capacitive touch-sensitive control, the reaction rate is very sensitive, large sensitive area, induction speed comparable to the iPhone.
Different Colors LED Back-light
All panels are with nice LED back-light indicator, different colors for choice, such as red, green, blue, white, yellow, orange,
etc. These LED light is soft, not hurt the eyes or disturb the guest sleeping. Meanwhile, it is easy and convenient for indicator in night.
All panels are with nice LED back-light indicator, different colors for choice, such as red, green, blue, white, yellow, orange,
etc. These LED light is soft, not hurt the eyes or disturb the guest sleeping. Meanwhile, it is easy and convenient for indicator in night.
Good Quality Materials and Integrated Product Structure
Whole integrated product structure, and all function components and back box is using V0 level ABS fire retardant material, moisture, meet international fire safety standards.
RS485 MODBUS Protocol Technology by International Standards, Support RCU Central Program Integrate and Control, Easy Wiring
All panels are based on RS485 Standard Modbus communication protocol, 9600/19200 baud rate, international popular, stable and flexible. It is compatible with most RCU. With it, the stars luxury intelligent hotels will achieve smart centralized mangement control easily and efficiently.
All panels are based on RS485 Standard Modbus communication protocol, 9600/19200 baud rate, international popular, stable and flexible. It is compatible with most RCU. With it, the stars luxury intelligent hotels will achieve smart centralized mangement control easily and efficiently.
Different Colors Choice
Except black, we can also special do white, silver, gold, champagne, etc. at request, you can choose as need.
Variety of Products
We have variety of products, all modular design, easy installation and collocation.
Install mounting box you can choose 86*86*45mm, for single or for connected version
Two install screws distance is 60mm.
Product Datesheet:
Input voltage: 12V
Communication protocol: RS485 Modbus
Baud rate: 9600/19200, 8 data bits, no parity, 1 stop bit
Product size: 86*86*45mm
Fixed screw center distance: 60mm (86mm button box)
Operating temperature: -10℃--60℃
Working humidity: 0 - 95%
