Quick Details
-
Production Capacity:
-
300-400 pairs per hour
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YONGHUI
-
Voltage:
-
220V
-
Power:
-
50W
-
Dimension(L*W*H):
-
810x850x1260mm
-
Weight:
-
265
-
Features:
-
pneumatic & cover type double head
-
Type:
-
pneumatic double barrel sole pressing machine
-
Style:
-
we have manual press one as well
Quick Details
-
Machinery Test Report:
-
good
-
Marketing Type:
-
High Quality Product
-
Application:
-
shoes making machine sole pressing machine
-
Production Capacity:
-
300-400 pairs per hour
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YONGHUI
-
Voltage:
-
220V
-
Power:
-
50W
-
Dimension(L*W*H):
-
810x850x1260mm
-
Weight:
-
265
-
Features:
-
pneumatic & cover type double head
-
Type:
-
pneumatic double barrel sole pressing machine
-
Style:
-
we have manual press one as well
|

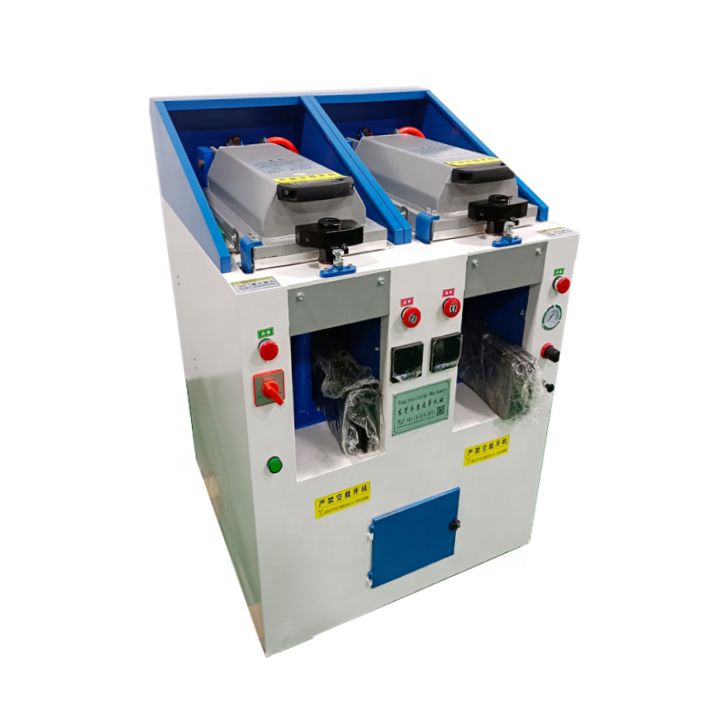

Item
|
shoe sole attaching press machine
|
|
Voltage
|
220v/50Hz
|
|
Power
|
50w
|
|
Pressing Time
|
6-10 seconds
|
|
Pneumatic
|
0.3-0.6MPa
|
|
Work Efficiency
|
300-400 pairs per hour
|
|
Size
|
810x850x1260 mm
|
|
Weight
|
265kg
|
This series of machine are suitable for strengthening the adhesion of the sole during it being glued, going into operation, first regulate the required pressure with a relief valve and set the press holding time with a time delay relay then put the shoe with its bottom upwards in the air bucket. As soon as the bucket is locket the compressed air automatically fills it performing all-directional pressing to strengthen adhesion of the sole and once the operation is finished, automatically exhausts. Being simple to operate and economical, they are the ideal and necessary equipment for the shoe making manufacturing.
Our Service
1. We keep providing high quality products with good prices and good services to all our customers.
2. A trial order or sample order is welcomed.
3. We will reply you in 24 hours.
4. We will track the logistics of your goods to make sure they reach you. Your feedbacks are welcomed. If there is any question, please feel free to contact us.
2. A trial order or sample order is welcomed.
3. We will reply you in 24 hours.
4. We will track the logistics of your goods to make sure they reach you. Your feedbacks are welcomed. If there is any question, please feel free to contact us.
Features
1. This machine is suitable for reinforcing and pressing all kinds of shoes when the sole is bonded.
2. This machine through electrical components control pneumatic components for automatic work, work with the air source pressure regulating valve to adjust the required working air source pressure and time relay to set the pressure holding time.
3. Put the shoes that have been coated with glue into the lower air box, and press two start buttons simultaneously to open it.
4. The pressure air source automatically enters the upper and lower rubber bag to inflate and exhaust, the workpiece is strengthened and pressed, the bonding is uniform and tight, the adhesive layer has good bonding performance, and the operation is simple and quick.
2. This machine through electrical components control pneumatic components for automatic work, work with the air source pressure regulating valve to adjust the required working air source pressure and time relay to set the pressure holding time.
3. Put the shoes that have been coated with glue into the lower air box, and press two start buttons simultaneously to open it.
4. The pressure air source automatically enters the upper and lower rubber bag to inflate and exhaust, the workpiece is strengthened and pressed, the bonding is uniform and tight, the adhesive layer has good bonding performance, and the operation is simple and quick.
