Quick Details
-
Place of Origin:
-
China
-
Year:
-
2023
-
Power (kW):
-
15.5
-
Weight (KG):
-
2200
-
Marketing Type:
-
New Product 2023
-
Material:
-
Stainess Steel, Copper, Aluminum, Brass, ets
-
Model:
-
DW-50CNC-3A
Quick Details
-
Machine Type:
-

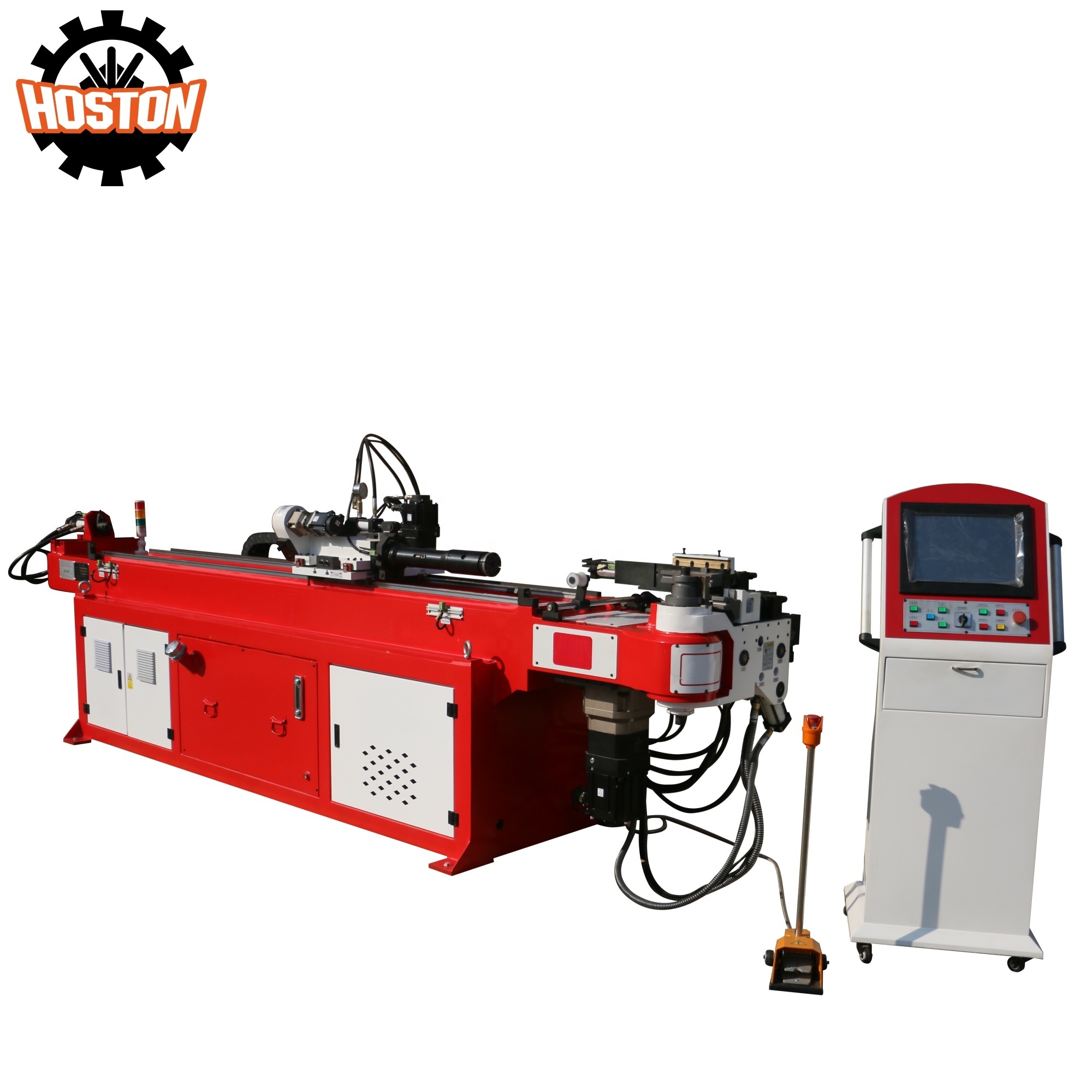

pipe bending machine, Hybrid CNC Pipe Bending Machine
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
China
-
Year:
-
2023
-
Power (kW):
-
15.5
-
Weight (KG):
-
2200
-
Marketing Type:
-
New Product 2023
-
Material:
-
Stainess Steel, Copper, Aluminum, Brass, ets
-
Model:
-
DW-50CNC-3A
Product Paramenters
|
Model
|
|
DW-50CNC-3A
Servo Bend
|
DW-65CNC-3A
Servo Bend
|
DW-65CNC-4A/5A
Servo Bend
|
|
|
Max. Tube o.d. Bneding Capacity
|
|
50.8mm
|
60mm
|
65mm
|
|
|
Max. Tube Wall Thickness
|
|
2.0mm
|
2.5mm
|
2.5mm
|
|
|
CLR Centerline Radius Range
|
|
35-200mm
|
45-280mm
|
150mm
|
|
|
Max. Bending Angle
|
|
190°
|
190°
|
190°
|
|
|
Max. Mandrel working Distance
|
|
2600mm
|
3000mm
|
2500mm
|
|
|
Processing Speed
|
Tube Feeding Speed
|
750mm/sec
|
600mm/sec
|
710mm/sec
|
|
|
|
Tube Roration Speed
|
320°/sec
|
240°/sec
|
260°/sec
|
|
|
|
Tube Bending Speed
|
75°/sec
|
600°/sec
|
90°/sec
|
|
|
Repeatability
|
Tube Feeding Precision
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
|
|
|
Tube Roration Precision
|
±0.01°
|
±0.01°
|
±0.01°
|
|
|
|
Tube Bending Precision
|
±0.01°
|
±0.01°
|
±0.01°
|
|
|
Total Motor Power
|
|
15.5kw
|
21kw
|
27.6kw
|
|
|
Overall Weight
|
|
2200kg
|
3000kg
|
4200kg
|
|
|
Machine Length
|
|
4800x1200x1600
|
5200x1250x1600
|
5300x1380x1700
|
|
Products Description
Mold&Product
Applications
Certifications
Product packaging
Factory Display
Customer Photos
