Quick Details
-
Warranty:
-
3 months-1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Thcoo
-
Model Number:
-
SKT-02
-
Torque:
-
6KG
-
Load capacity:
-
6~60N
-
Noise:
-
<55DB
-
Function:
-
Overload Protection
-
Service:
-
OEM ODM
-
Color:
-
Sliver
-
Stroke:
-
Customized Stroke Available)
-
IP Grade:
-
IP54
-
Working Temperature:
-
-10℃ ~ +50℃
-
Limit Switch:
-
Limit switch
-
Inner Pipe:
-
Aluminium Alloy
Quick Details
-
Speed(RPM):
-
1~5000rpm
-
Continuous Current(A):
-
1.5 A~2.7A
-
Efficiency:
-
IE 2
-
Warranty:
-
3 months-1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Thcoo
-
Model Number:
-
SKT-02
-
Torque:
-
6KG
-
Load capacity:
-
6~60N
-
Noise:
-
<55DB
-
Function:
-
Overload Protection
-
Service:
-
OEM ODM
-
Color:
-
Sliver
-
Stroke:
-
Customized Stroke Available)
-
IP Grade:
-
IP54
-
Working Temperature:
-
-10℃ ~ +50℃
-
Limit Switch:
-
Limit switch
-
Inner Pipe:
-
Aluminium Alloy
|
Item No.
|
SKT-02-8
|
SKT-02-24
|
SKT-02-40
|
SKT-02-80
|
SKT-02-120
|
SKT-02-160
|
SKT-02-235
|
|
Input Voltage
|
12V DC
|
12V DC
|
12V DC
|
12V DC
|
12V DC
|
12V DC
|
12V DC
|
|
Max Load
|
6N
|
18N
|
30N
|
60N
|
60N
|
60N
|
60N
|
|
Rated Load
|
4.8N
|
14.4N
|
24N
|
48N
|
48N
|
48N
|
48N
|
|
Self-lock Load
|
>8N
|
>24N
|
>33N
|
>60N
|
>120N
|
>160N
|
>235N
|
|
No Load Speed
|
150MM/S
|
50MM/S
|
30MM/S
|
15MM/S
|
9.5MM/S
|
7MM/S
|
5MM/S
|
|
Full Load Speed
|
125MM/S
|
45MM/S
|
25MM/S
|
14MM/S
|
7.5MM/S
|
6.5MM/S
|
4.5MM/S
|
|

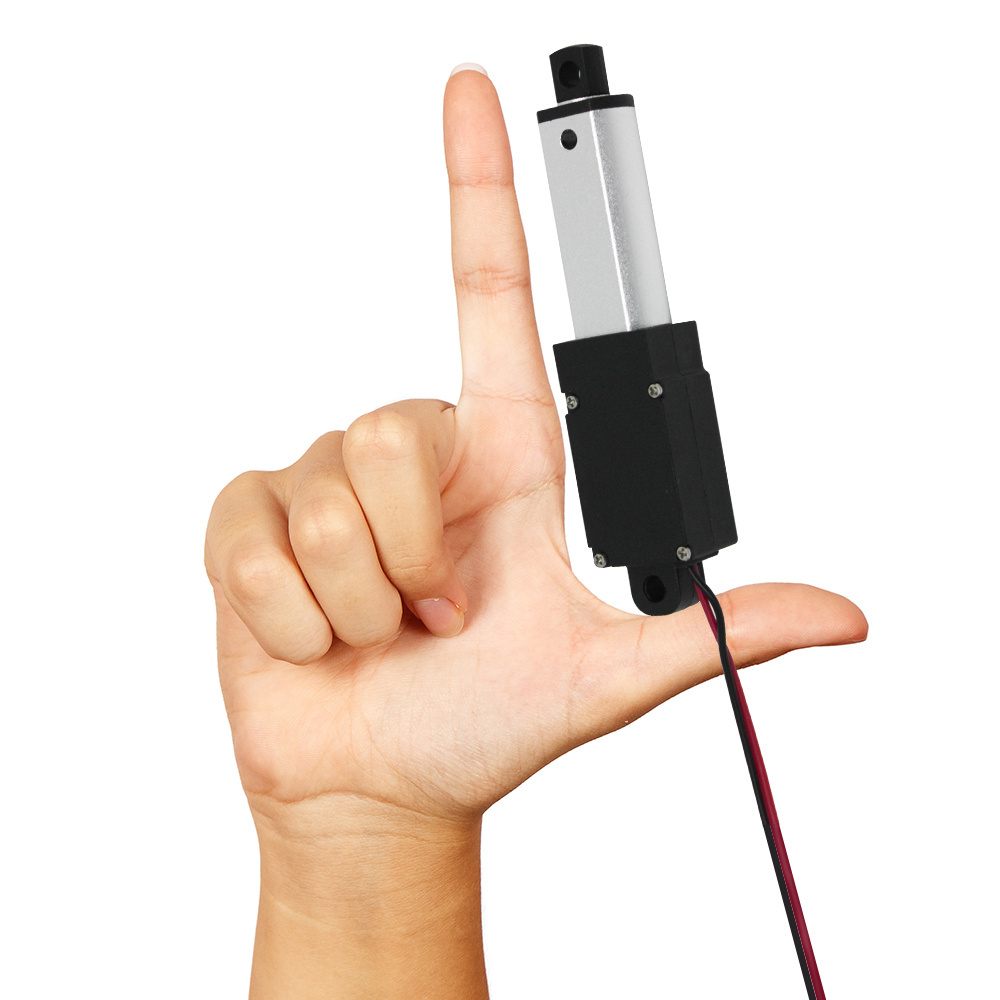

Actuator Linear 12v 30mm 50mm 100mm Stroke 60N Waterproof High Speed Linear Actuator Mini Resonance Precision Linear Actuator
|
|
|
|
|||
|
Model
|
SKT-02
|
Power
|
10-12W
|
|||
|
Brand
|
Thcoo
|
Color
|
Sliver
|
|||
|
IP Grade
|
IP54
|
Limit Switch
|
Built in
|
|||
|
Duty cycle
|
10%,2 min.on/18 min.off
|
Stroke
|
Customized stroke available
|
|||
|
Noise level
|
<=55dB
|
Operation temperature
|
-10℃~+50℃
|
|||
1. Q : Can I get a sample and how long will it take?
A: Yes , we would like to do one sample for checking .Normal type(5 days),OEM type（15 days）
2. Q : What's the MOQ ?
A: NO MOQ, one Piece is welcome！
3. Q : Can I have my own customized product?
A :Yes, your customized requirements for color, logo, design, package, carton mark, etc. are very welcome.
A: NO MOQ, one Piece is welcome！
3. Q : Can I have my own customized product?
A :Yes, your customized requirements for color, logo, design, package, carton mark, etc. are very welcome.
4. Q : Do you have quality control ?
A : Yes, We have professional quality control personnel.we attach great importance to quality control,all of our products are 100% inspection
5. Q : Do you have CE TUV UL certification
A: Yes, Third party inspection is welcomed. All our adjustable desks are CE Fcc TUV & UL approved.
6. Q : How about the warranty?
A: 5 years
A : Yes, We have professional quality control personnel.we attach great importance to quality control,all of our products are 100% inspection
5. Q : Do you have CE TUV UL certification
A: Yes, Third party inspection is welcomed. All our adjustable desks are CE Fcc TUV & UL approved.
6. Q : How about the warranty?
A: 5 years
