- Product Details
- {{item.text}}
Quick Details
-
Worktable Length:
-
5800mm/19'
-
Worktable Width:
-
2200mm/7'2.6''
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINNER
-
Model Number:
-
M-30
-
Warranty:
-
18 Months
-
Color:
-
Blue, white, red, grey or yellow, etc
-
Name:
-
M30 WINNER Auto Body Dent Puller Machine Car Body Repair Equipment
-
Using range:
-
Chassis Collision Work
-
Deck Structure:
-
Box structure with complete steel plate
-
Standard tower quantity:
-
2
-
Tower working range:
-
360°
-
Pneumatic pressure:
-
0.8Mpa
-
Optional deck length:
-
6100mm or 6700mm
-
Optional lifting capacity:
-
4500Kg, 5500Kg or 6000kg
-
Optional tower configurations:
-
2,3 or 4 towers
Quick Details
-
Weight:
-
2800Kg
-
Bench Height:
-
300mm-1050mm
-
Max. Lifting Capacity:
-
3500 Kg
-
Worktable Length:
-
5800mm/19'
-
Worktable Width:
-
2200mm/7'2.6''
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINNER
-
Model Number:
-
M-30
-
Warranty:
-
18 Months
-
Color:
-
Blue, white, red, grey or yellow, etc
-
Name:
-
M30 WINNER Auto Body Dent Puller Machine Car Body Repair Equipment
-
Using range:
-
Chassis Collision Work
-
Deck Structure:
-
Box structure with complete steel plate
-
Standard tower quantity:
-
2
-
Tower working range:
-
360°
-
Pneumatic pressure:
-
0.8Mpa
-
Optional deck length:
-
6100mm or 6700mm
-
Optional lifting capacity:
-
4500Kg, 5500Kg or 6000kg
-
Optional tower configurations:
-
2,3 or 4 towers
Yantai Winner Electronic&Mechanical Technology, Co., Ltd, focus on providing complete equipment solution for car maintenance and repairing workshop.
Now our main products are car body collision bench, truck/cab repair bench, car lift, spray/paint booth, wheel alignment, welding machine, hose reels, etc.
Our products are used in many 4S workshop all over the world such as Toyota, BMW, Ford and Suzuki, etc.

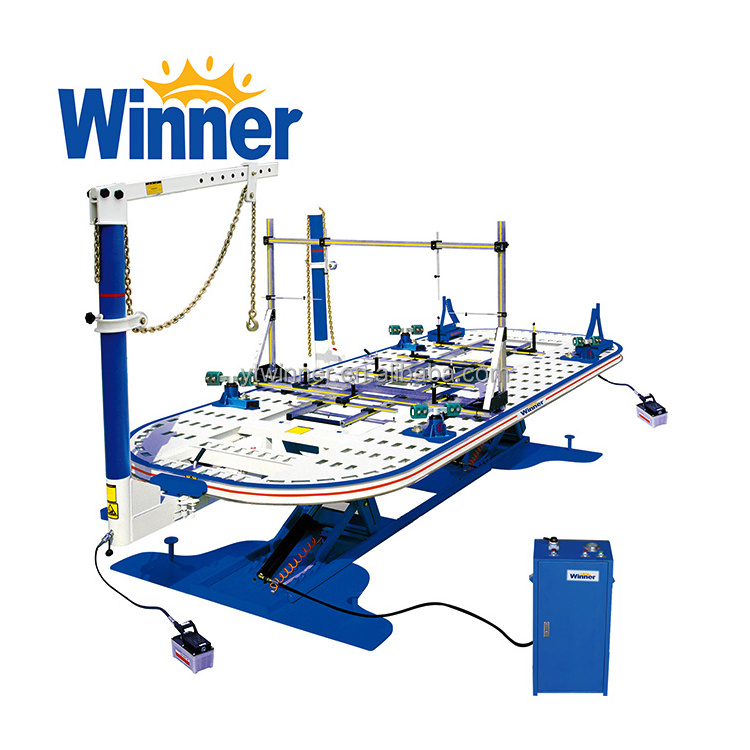

M30 WINNER Auto Body Dent Puller Machine Car Body Repair Equipment Frame Machine Chassis Liner
|
Model |
M-30 |
|
Type |
Double Tilt |
| Deck Structure | Box structure with complete steel plate 10mm+10mm |
| A: Deck Length | 5800mm/19 |
| B: Deck Width | 2200mm/7'2.6'' |
| Deck Working Height | 30mm/11.8''-1050mm/3'5.3' |
| C:Maximum Length | 8075mm/26'5.9'' |
| D:Maximum Width | 2675mm/8'9.3'' |
| E:Width of Tradeway | 625mm/2'0.6'' |
| F:Width between Tradeways | 950mm/3'0.4'' |
| Standard Tower Quantity | 2 |
| Weight | 2800kg/3307lbs |
| Life Capacity | 3500kg/6614 lbs |
| Hydraulic Tower per Tower | 10ton |
| Tower Working Range | 360° |
| Hydraulic Pressure | 70Mpa(10000psi) |
| Pneumatic Pressure | 0.8Mpa |
| Optional Towers Configurations | 2,3 or 4 towers |
| Optional Deck Length | 6100mm/20' or 6700mm/22' |
| Optional Lifting Capacity | 4500kg/10000 lbs, 5500kg/12000 lbs or 6000kg/13500 lbs |
Description:
1. 86’’ /2200mm wide deck is perfect for light trucks, SUV or Pickups, etc full-frame vehicles.
2. Over 200 tie-down opening for virtually unlimited anchoring.
3. True 3600 pulling capability.
4. 4500kg/10000 lbs, 5500kg/12000 lbs/ or 6000kg/13500 lbs lift capacity for more options
5. Heavy duty to wers for strong pulling capacity.
