Quick Details
-
Output Speed:
-
2.5-360Rpm
-
Weight (KG):
-
18 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YND
-
Color:
-
Customer Requirement
-
Product name:
-
Gear Motor
-
Mounting Position:
-
Horizontal Or Flange-mounted
-
Bearing:
-
NSK
-
Heat treatment:
-
Carburizing
-
Input Form:
-
IEC Flange/input shaft
-
Gear material:
-
20 CrMnTi
-
Name:
-
transmission gearbox.
-
Certificate:
-
ISO9001
-
Place of origin:
-
China
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
50~28000Nm
-
Input Speed:
-
0-2000
-
Output Speed:
-
2.5-360Rpm
-
Weight (KG):
-
18 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YND
-
Color:
-
Customer Requirement
-
Product name:
-
Gear Motor
-
Mounting Position:
-
Horizontal Or Flange-mounted
-
Bearing:
-
NSK
-
Heat treatment:
-
Carburizing
-
Input Form:
-
IEC Flange/input shaft
-
Gear material:
-
20 CrMnTi
-
Name:
-
transmission gearbox.
-
Certificate:
-
ISO9001
-
Place of origin:
-
China

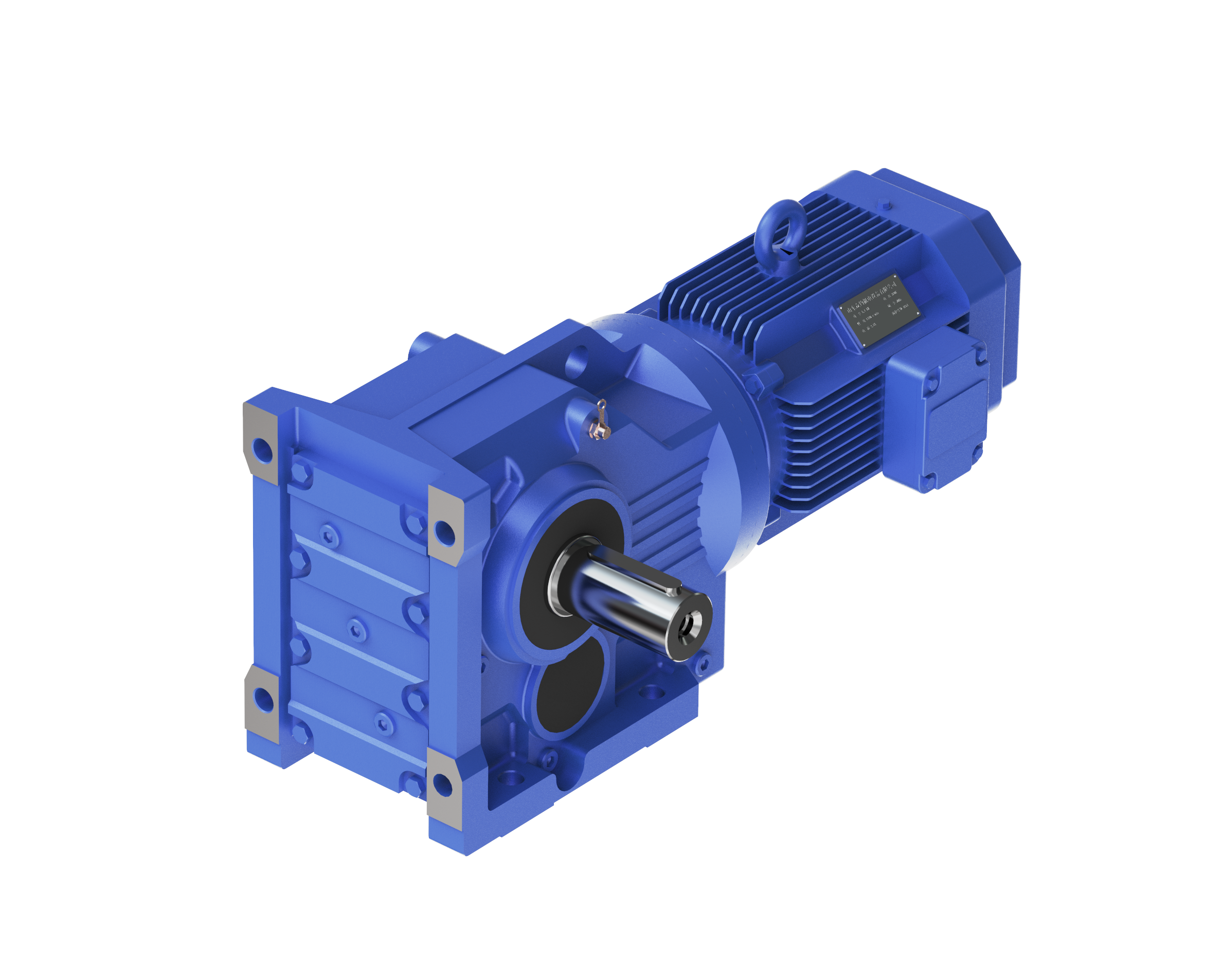

Overview
Components:
Gear Motor
1. Housing: Cast Iron
2. Gears: Helical-bevel Gears
3. Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
4. Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
5. Output Configurations:
Solid Shaft Output
Hollow Shaft Output
K Series - Foot-mounted, solid shaft output
KAB Series - Foot-mounted, hollow shaft output
KA Series – Keyed hollow shaft output
KF Series – B5 Flange-mounted, solid shaft output
KAF Series – B5 Flange-mounted, hollow shaft output
KAZ Series – B14 Flange-mounted, hollow shaft output
KAT Series – Hollow shaft output, torque arm
KH, KHB, KHF, KHZ Series – Hollow shaft output, shrink disk
KV, KVB, KVF, KVZ Series – Hollow shaft output, splined hollow shaft
K(KA, KF, KAF, KAB, KAZ)S Series – Solid shaft input
Main Features
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)
