Quick Details
-
Brand Name:
-
Wadjay
-
Voltage:
-
220V/380V
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
1500 kw
-
Nominal Force (kN):
-
1600
-
Application:
-
Metal process
-
Color:
-
Customizable
-
Material:
-
Aluminum, SS, MS, etc
-
Function:
-
Metal Processing
-
Worktable:
-
Inclinable
-
Type:
-
vertical
-
working table size:
-
580*1000mm
-
slide stroke:
-
150 mm
-
column distance:
-
640mm
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
China
-
Brand Name:
-
Wadjay
-
Voltage:
-
220V/380V
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
1500 kw
-
Nominal Force (kN):
-
1600
-
Application:
-
Metal process
-
Color:
-
Customizable
-
Material:
-
Aluminum, SS, MS, etc
-
Function:
-
Metal Processing
-
Worktable:
-
Inclinable
-
Type:
-
vertical
-
working table size:
-
580*1000mm
-
slide stroke:
-
150 mm
-
column distance:
-
640mm

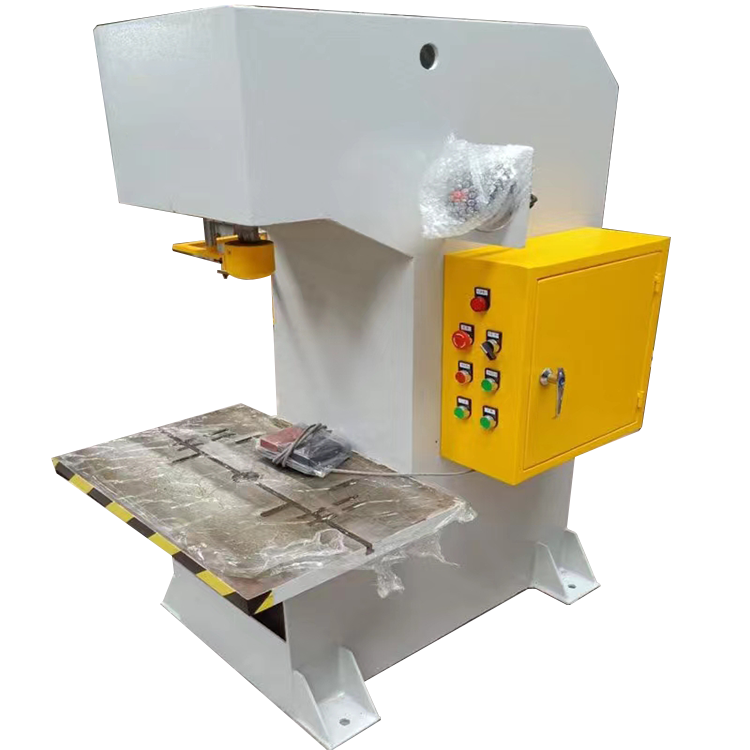

Small 5 Ton 10 Ton 20 Ton 30 Ton Bearing Press-Fit Straightening Punching Machine Single-Arm Hydraulic Press Machine
Product Description
Features for punching machine
1. With an inclinable cast structure, the machine body can incline to allow a punched work-piece or waste material to slide down from the die.
2. With a rigid turn-key clutch, the press has single or continuous operation standards
3. The punch press uses a single type brake. The sliding block is equipped with a press- down type safety device that can be pressed down to protect the entire machine.
4. Avoid being damaged in case of overpressure
5. The machine has the advantages of high universality, high precision, reliable performance and convenient operatiom
Specification
|
Item
|
Unit
|
WJ-25
|
WJ-100
|
WJ-250
|
WJ-400
|
|
Nominal pressure
|
KN
|
250
|
1000
|
2500
|
4000
|
|
Maximum pressure
|
Mpa
|
25
|
26
|
25
|
25
|
|
Nominal working stroke
|
mm
|
400
|
500
|
600
|
700
|
|
Throat deepth
|
mm
|
260
|
320
|
360
|
400
|
|
Working table size
|
mm
|
1250*420
|
2000*550
|
2000*650
|
2500*650
|
|
Power
|
kw
|
3
|
7.5
|
15
|
30
|
|
Weight
|
kg
|
2000
|
3500
|
9500
|
20000
|
- Sealed hydraulic cylinder
The cylinder body is made of high quality 45# steel, the surface of the piston rod is refined by quenching, and the service life is long. The cylinder parts adopt the imported sealing ring, and the upper chamber safety valve is the safety protection mechanism
- Centralized operation box
Centralized control, simple operation, clear function; Ergonomic button design, improve production efficiency
- Delicate table
Strengthen worktable, surface quenching and polishing treatment. Make hydraulic press more durable
- Split console
Human-computer interaction system, easier to operate, speed up production efficiency
