Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000K,4000K,6500K
-
Application:
-
Home Office,Living room,Bedroom,Kitchen,Shop store
-
Product Weight（kg）:
-
0.3
-
Input Voltage(V):
-
220-240V
-
Lamp Luminous Flux(lm):
-
480-1920
-
Model Number:
-
2023 New Downlight
-
Place of Origin:
-
China
-
Brand Name:
-
WOOJONG
-
Product Name:
-

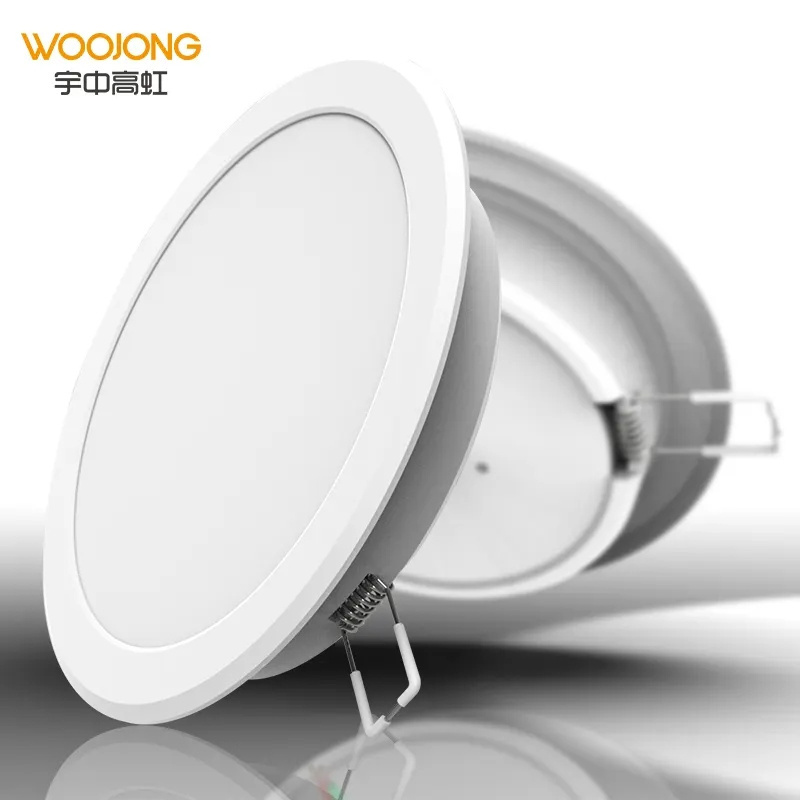

LED Slim Panel Downlight
-
Warranty:
-
3-Year
-
Keyword:
-
High quality down light
-
Material:
-
plastic
-
Power:
-
6W 9W 12W 15W 18W 24W
-
Usage:
-
Indoor LED Lighting
-
Wattage:
-
6W 9W 12W 15W 18W 24W
-
Voltage:
-
220-240
-
MOQ:
-
1000pcs
-
Driver:
-
Inner DOB Linear IC
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Lamp Body Material:
-
Plastic
-
Install Style:
-
Embeded
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000K,4000K,6500K
-
Application:
-
Home Office,Living room,Bedroom,Kitchen,Shop store
-
Product Weight（kg）:
-
0.3
-
Input Voltage(V):
-
220-240V
-
Lamp Luminous Flux(lm):
-
480-1920
-
Model Number:
-
2023 New Downlight
-
Place of Origin:
-
China
-
Brand Name:
-
WOOJONG
-
Product Name:
-
LED Slim Panel Downlight
-
Warranty:
-
3-Year
-
Keyword:
-
High quality down light
-
Material:
-
plastic
-
Power:
-
6W 9W 12W 15W 18W 24W
-
Usage:
-
Indoor LED Lighting
-
Wattage:
-
6W 9W 12W 15W 18W 24W
-
Voltage:
-
220-240
-
MOQ:
-
1000pcs
-
Driver:
-
Inner DOB Linear IC
Recommend Products
WOOJONG High Quality 6 Sets Slim Panel Downlight Recessed 3/4/5/6/7inch 6W-24W Down Light 720lm 230V LED Fixtures
PRODUCT PARAMETER
|
Product Model
|
3”6W
|
4”9W
|
4”12W
|
5”12W
|
5”15W
|
6”15W
|
6”18W
|
7”18W
|
7”24W
|
|
Operating Voltage
|
230V
|
230V
|
230V
|
230V
|
230V
|
230V
|
230V
|
230V
|
230V
|
|
Operating Frequency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Input Power
|
6W
|
9W
|
12W
|
12W
|
15W
|
15W
|
18W
|
18W
|
24W
|
|
LM ±10%
|
480
|
720
|
960
|
960
|
1200
|
1200
|
1440
|
1440
|
1920
|
|
CCT (K)
|
3000K/6500K
|
3000K/6500K
|
3000K/6500K
|
3000K/6500K
|
3000K/6500K
|
3000K/6500K
|
3000K/6500K
|
3000K/6500K
|
3000K/6500K
|
|
CRI (Ra)
|
≥80
|
≥80
|
≥80
|
≥80
|
≥80
|
≥80
|
≥80
|
≥80
|
≥80
|
|
DF
|
≥0.5
|
≥0.5
|
≥0.7
|
≥0.7
|
≥0.7
|
≥0.7
|
≥0.7
|
≥0.7
|
≥0.7
|
|
Operating Temp.
|
-20/+40 °C
|
-20/+40 °C
|
-20/+40 °C
|
-20/+40 °C
|
-20/+40 °C
|
-20/+40 °C
|
-20/+40 °C
|
-20/+40 °C
|
-20/+40
|
|
Environmental Rating
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
|
Dimensions
|
Φ101*32
|
Φ132*32
|
Φ132*32
|
Φ151*32
|
Φ151*32
|
Φ176*32
|
Φ176*32
|
Φ201*32
|
Φ201*32
|
|
Cut Out
|
75-3
|
110-3
|
110-3
|
125-3
|
125-3
|
150-3
|
150-3
|
175-3
|
175-3
|
|
Driver
|
Linear IC
|
Linear IC
|
Linear IC
|
Linear IC
|
Linear IC
|
Linear IC
|
Linear IC
|
Linear IC
|
Linear IC
|
|
EMC
|
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
|
Dimmable
|
NO
|
NO
|
NO
|
NO
|
NO
|
NO
|
NO
|
NO
|
NO
|
|
Rated Lifetime
|
25000hrs
|
25000hrs
|
25000hrs
|
25000hrs
|
25000hrs
|
25000hrs
|
25000hrs
|
25000hrs
|
25000hrs
|
|
Cert.
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
CE/ERP/ROHS
|
Product Details
PRODUCT ADVANTAGE
1.Light body Plastic,high cost-effective,Flame retardant grade：V0.
2. The height of the whole lamp is only 32mm,saving your sea freight.
3.Luminous uniform,high brightness,High color rendering index,scrub the surface astigmatism design to effcetively change the light refraction angle light diffusion angle greater.
4.Energy saving: High transmittance mask,with the latest technology LED source, energy saving up to 95% compared to old bulbs, these recessed lights can replace average life over 30,000 hours 50W incandescent bulbs or halogen lamps.
5.Inner DOB linear power solution, small size, high luminous efficiency.
6.Fully comply with CE, ERP, ROHS, and the warranty is 3 year.
7.The waterproof grade is IP40. Through special structural design, mosquitoes can be prevented from entering.
7.The waterproof grade is IP40. Through special structural design, mosquitoes can be prevented from entering.
8.Wide application:the recessed lights are suitable for the living room, kitchen, bedroom, stairs, hallway, hotel, office, meeting room, library, KTV, basement, department store and many other places.
