Quick Details
-
Use:
-
for Vertex VX-261 VX-264
-
Brand Name:
-
Usangreen
-
Model Number:
-
000336
-
Place of Origin:
-
Guangdong, China
Quick Details
-
USB Type:
-
Standard
-
Material:
-
PVC
-
Connector:
-
3.5MM Audio Jack
-
Use:
-
for Vertex VX-261 VX-264
-
Brand Name:
-
Usangreen
-
Model Number:
-
000336
-
Place of Origin:
-
Guangdong, China
Product Description

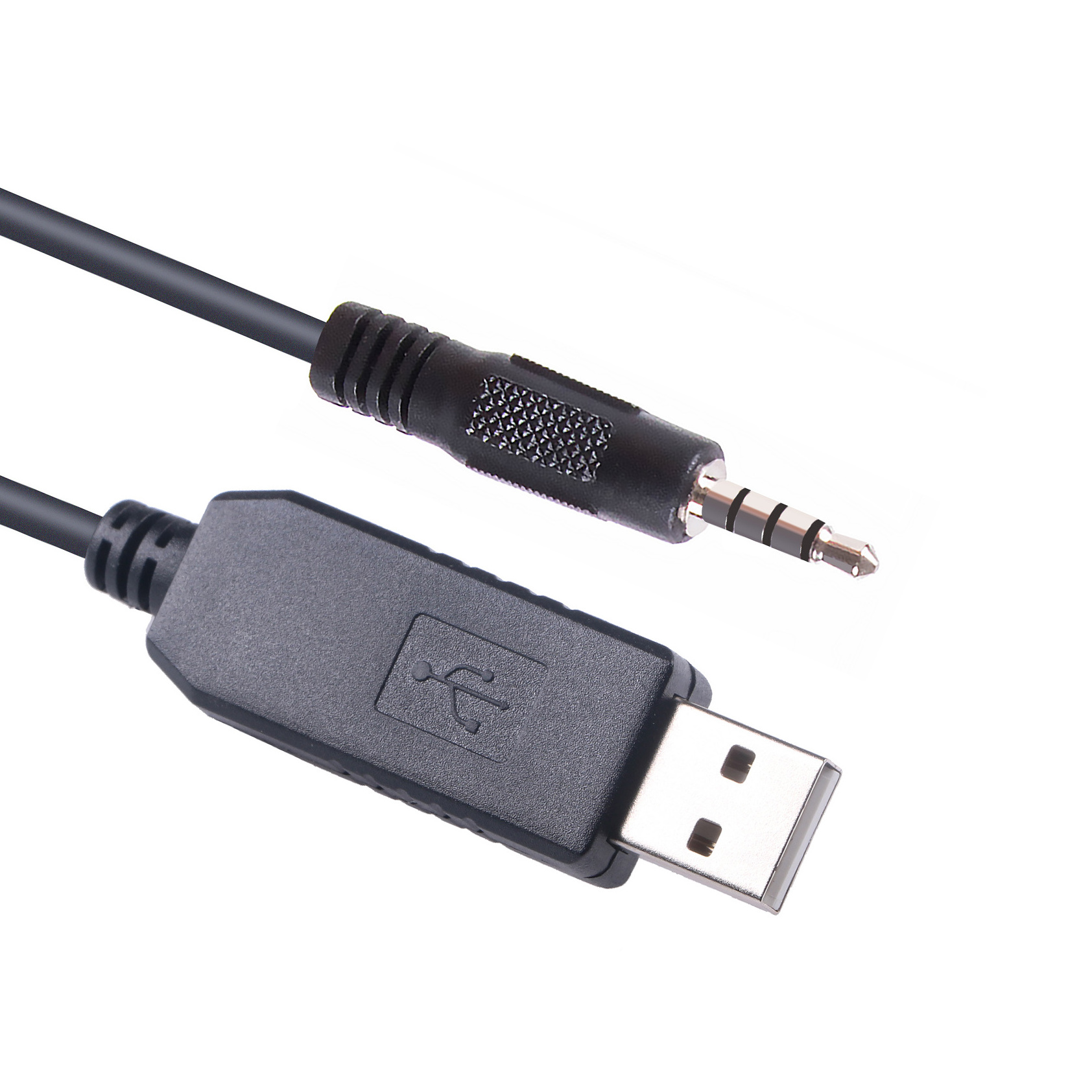

USB Programming Cable, USB Uart TTL to 3.5mm 4-Pole TRRS Audio Jack AJ Plug Cable
Material: PVC outer jacket
Cable: 28AWG*3C, OD4.0 Bare Copper
Cable length: 1.8M/6FT
Chipset: ilabs CP2102
Compatible with Models: Vertex VX-261 VX-264 VX-350 VX-351 VX-354 VX-420 CT-106 Vertex EVX-261 EVX-530 EVX-531 EVX-534 EVX-539
Material: PVC outer jacket
Cable: 28AWG*3C, OD4.0 Bare Copper
Cable length: 1.8M/6FT
Chipset: ilabs CP2102
Compatible with Models: Vertex VX-261 VX-264 VX-350 VX-351 VX-354 VX-420 CT-106 Vertex EVX-261 EVX-530 EVX-531 EVX-534 EVX-539
The CP2102 Chip Features:
- Integrated USB transceiver; no external resistors required
- Integrated clock; no external crystal required
- Internal 1024-byte programmable ROM for vendor ID,product ID, serial number, power descriptor, release number, and product
description strings
- EEPROM (CP2102)
- On-chip power-on reset circuit
- On-chip voltage regulator
- 3.3 V output (CP2102)
- 100% pin and software compatible with CP2101 USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins Asynchronous Serial Data BUS (UART)
- All handshaking and modem interface signals
- Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
- Baud rates: 300 bps to 1 Mbps
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character support
- Line break transmission
Virtual COM Port Device Drivers
- Works with existing COM port PC Applications
- Royalty-free distribution license
- Windows 8/7/Vista/Server 2003/XP/2000
- Mac OS-X/OS-9
- Linux
USBXpress™ Direct Driver Support
- Royalty-Free Distribution License
- Windows 7/Vista/XP/Server 2003/2000
- Windows CE
Example Applications
- Upgrade of RS-232 legacy devices to USB
- Cellular phone USB interface cable
- USB interface cable
- USB to RS-232 serial adapter
Supply Voltage
- Self-powered: 3.0 to 3.6 V
- USB bus powered: 4.0 to 5.25 V
Package
- RoHS-compliant 28-pin QFN (5x5 mm)
Temperature Range: –40 to +85 °C
- Integrated USB transceiver; no external resistors required
- Integrated clock; no external crystal required
- Internal 1024-byte programmable ROM for vendor ID,product ID, serial number, power descriptor, release number, and product
description strings
- EEPROM (CP2102)
- On-chip power-on reset circuit
- On-chip voltage regulator
- 3.3 V output (CP2102)
- 100% pin and software compatible with CP2101 USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins Asynchronous Serial Data BUS (UART)
- All handshaking and modem interface signals
- Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
- Baud rates: 300 bps to 1 Mbps
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character support
- Line break transmission
Virtual COM Port Device Drivers
- Works with existing COM port PC Applications
- Royalty-free distribution license
- Windows 8/7/Vista/Server 2003/XP/2000
- Mac OS-X/OS-9
- Linux
USBXpress™ Direct Driver Support
- Royalty-Free Distribution License
- Windows 7/Vista/XP/Server 2003/2000
- Windows CE
Example Applications
- Upgrade of RS-232 legacy devices to USB
- Cellular phone USB interface cable
- USB interface cable
- USB to RS-232 serial adapter
Supply Voltage
- Self-powered: 3.0 to 3.6 V
- USB bus powered: 4.0 to 5.25 V
Package
- RoHS-compliant 28-pin QFN (5x5 mm)
Temperature Range: –40 to +85 °C
Specification
|
item
|
value
|
|
Type
|
USB Cable
|
|
Use
|
for Vertex VX-261 VX-264
|
|
Private Mold
|
NO
|
|
Brand Name
|
Usangreen
|
|
Model Number
|
000336
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
USB Type
|
Standard
|
|
Material
|
PVC
|
|
Connector
|
3.5MM Audio Jack
|
|
Jacket
|
PVC
|
|
Shielding
|
Non-Shielded
|
|
Conductor
|
Pure cupper
|
|
|
|
Packing & Delivery
PE bag
