Ordering options
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
ISO9001
-
Package:
-
1pcs/bag,500pcs/carton
-
Jacket:
-
PVC/LSZH
-
Inset Loss:
-
<=0.20dB
-
Connector:
-
FC,SC,LC,ST,MPO,MTRJ,MU,E2000
-
Color:
-
Yellow/Orange/Grey
-
Model:
-
SC-SC/FC-SV/FC-FC/FC-LC/LC-LC
-
Length:
-
1.2-2-3-5-10-20-30-80 meters
-
Product quality:
-
Telecom level national standard
-
Product Features:
-
Low insertion loss, high return loss, and good repeatability
Quick Details
-
Brand Name:
-
UKCC/OEM
-
Model Number:
-
Patch cord
-
Type:
-
Fiber Optical Patch Cord
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
ISO9001
-
Package:
-
1pcs/bag,500pcs/carton
-
Jacket:
-
PVC/LSZH
-
Inset Loss:
-
<=0.20dB
-
Connector:
-
FC,SC,LC,ST,MPO,MTRJ,MU,E2000
-
Color:
-
Yellow/Orange/Grey
-
Model:
-
SC-SC/FC-SV/FC-FC/FC-LC/LC-LC
-
Length:
-
1.2-2-3-5-10-20-30-80 meters
-
Product quality:
-
Telecom level national standard
-
Product Features:
-
Low insertion loss, high return loss, and good repeatability

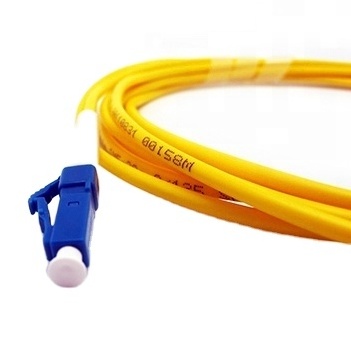

FC/SC/LC/ST UPC Polish Singlemode Fiber Optical Jumper 3m Yellow Fiber Optical Patch Cord
Fiber Optic Patch Cable
is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center.
TTI fiber
provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special
patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Description
Cable Color: Yellow
Fiber counts: 1 Fiber (Simplex)
Fiber type: Singlemode (9/125um)
Connector type: ST-SC
Connector counts: 2 connectors
Application
¨ Telecommunication
¨ CATV, FTTH, LAN
¨ Fiber oiptic sensors
¨ Optical transmission system
¨ Test equipment
Features
¨ Screw-thread coupling mechanism
¨ Ceramic ferrules connectors
¨ Low insertion loss, high return loss
¨ Excellent mechanical endurance
¨ High credibility and stability
¨ Good in repeatability and exchangeability
¨ 100% Insertion, Return Loss, End Face and Interference inspection
patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Description
Cable Color: Yellow
Fiber counts: 1 Fiber (Simplex)
Fiber type: Singlemode (9/125um)
Connector type: ST-SC
Connector counts: 2 connectors
Application
¨ Telecommunication
¨ CATV, FTTH, LAN
¨ Fiber oiptic sensors
¨ Optical transmission system
¨ Test equipment
Features
¨ Screw-thread coupling mechanism
¨ Ceramic ferrules connectors
¨ Low insertion loss, high return loss
¨ Excellent mechanical endurance
¨ High credibility and stability
¨ Good in repeatability and exchangeability
¨ 100% Insertion, Return Loss, End Face and Interference inspection
Specification
|
Mode
|
SM
|
|
MM
|
||
|
Polish
|
UPC
|
APC
|
APC
|
||
|
Insertion Loss
|
Typical ≤0.2dB Maximum ≤0.3dB
|
|
≤0.25dB
|
||
|
Return Loss
|
≥50dB
|
≥65dB
|
≥35dB
|
||
|
Interchangeability
|
≤0.2dB
|
|
|
||
|
Repeatability
|
≤0.1dB
|
|
|
||
|
Durability
|
≤0.2dB (1000 times mating)
|
|
|
||
|
Tensile Strengh
|
> 10kg
|
|
|
||
|
Temperature
|
≤0.2dB (-40+85 sustain 100 hours)
|
|
|
||
|
Humidity
|
≤0.2dB (+25+65 93 R.H.100 hours)
|
|
|
||
