Quick Details
-
Product name:
-
Large Capacity High Speed Medical Laboratory Centrifuge T21-L
-
Max speed:
-
21000rpm
-
Max RCF:
-
31554xg
-
Max capacity:
-
6*100ml fixed angle rotor, 4*750ml swing out rotor
-
Application:
-
Laboratory Usage, Hospital, Veterinary clinics, Food lab, Beauty Salon
-
Certificate:
-
CE/ISO9001/ISO13485
-
Speed Accuracy:
-
±10rpm
-
Power supply:
-
AC 220V 50Hz 10A
-
Warranty:
-
1 year warranty for the whole machine
-
Display:
-
LCD
Quick Details
-
Brand Name:
-
MKE
-
Model Number:
-
VL-200B
-
Place of Origin:
-
China
-
Product name:
-
Large Capacity High Speed Medical Laboratory Centrifuge T21-L
-
Max speed:
-
21000rpm
-
Max RCF:
-
31554xg
-
Max capacity:
-
6*100ml fixed angle rotor, 4*750ml swing out rotor
-
Application:
-
Laboratory Usage, Hospital, Veterinary clinics, Food lab, Beauty Salon
-
Certificate:
-
CE/ISO9001/ISO13485
-
Speed Accuracy:
-
±10rpm
-
Power supply:
-
AC 220V 50Hz 10A
-
Warranty:
-
1 year warranty for the whole machine
-
Display:
-
LCD
Benchtop Centrifuge Machine Large Capacity Multipurpose High Speed Medical Laboratory Centrifuge
Guarantee & Service
✔ 1 year for the entire machine, 3 years for the compressor, and 5 years for the motor.
✔ Factory maintenance includes freight and customs.
✔ Lifelong technical support. Remote technical support and on-site training.
✔ Distributor assistance for installation and maintenance.
Product Description

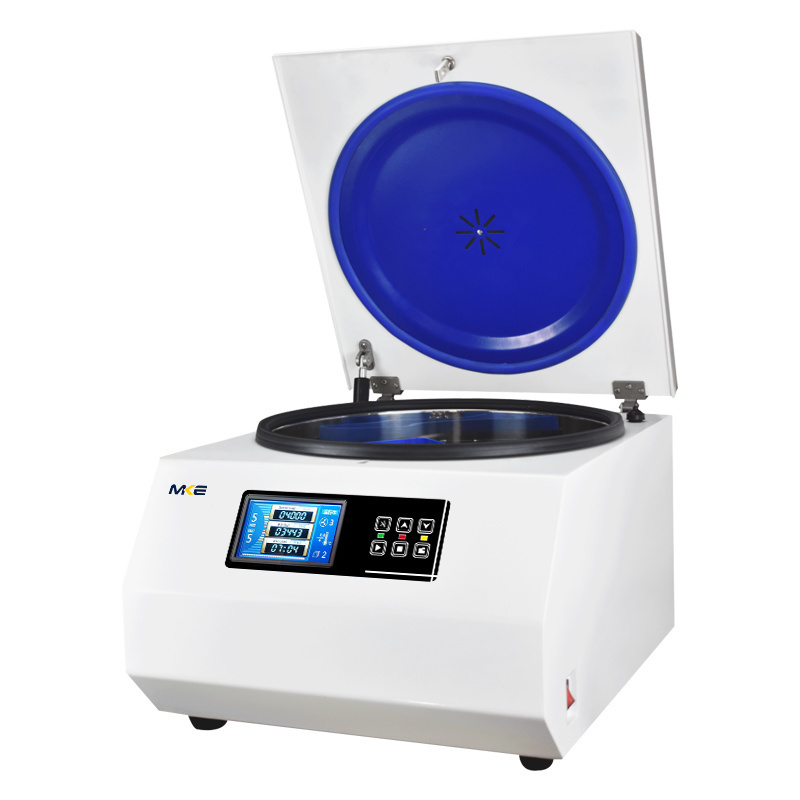

Medical High Speed Centrifuge Machine VL-200B is versatile in use and fits in every lab thanks to its compact design. With an extensive range of rotors and accessories and high RCF values up to 31,554 x g, it is suitable for a wide variety of applications. The tube capacities extend from 0.2 ml to 100 ml in fixed-angle rotors and 1.5ml to 750 ml in swing-out rotors. Microtiter,well plates and vacuum blood collection tube can also be centrifuged.
lf you need a discount distribution price, please contact us.
Features
· Compact and space-saving High-Speed centrifuge
· Speed range up to 21000 r/min
· Max.RCF:
31554xg
· Max.capacity:
6*100ml fixed angle rotor, 4*750ml swing out rotor
·
Observations window on lid for speed calibration
and noise measurement.
·

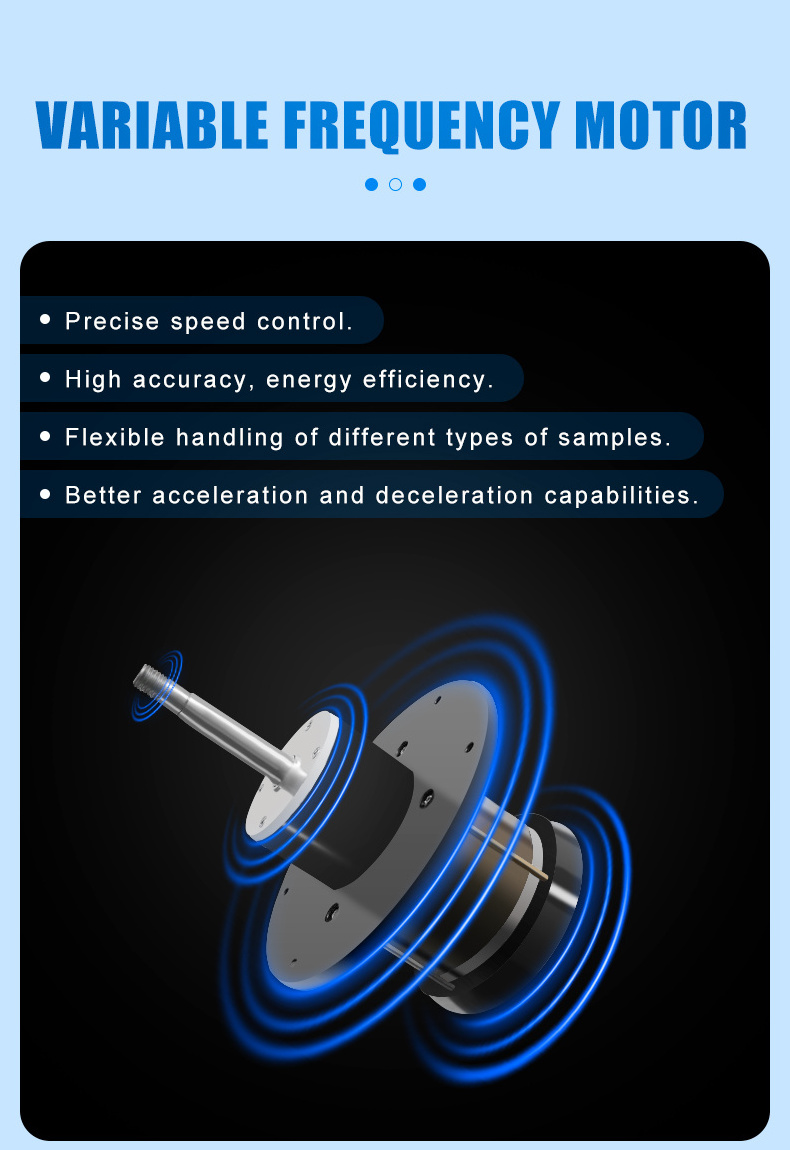

Microprocessor control with
frequency conversion A.C. motor drive
·
Noise level lower than 58 decibel at the highest rotational speed.
·
Three levels of damping system
, Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
·
Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
· With
over-speed, over-temperature, electronic safety door lock
and other multi-level protection functions to ensure the safety of man and machine.
·
Provides the
10 acceleration rates and 10 braking ramp
, to effectively avoid secondary sedimentation, with better centrifugation effect.
·
Automatic lid-locking
and holding during rotor run
·
Easily exchangeable rotors
·
Automatic troubleshooting with indication of error code and alarm on the screen.
·
LCD touch screen
with simple&clear interface for viewing and setting parameters.
Specification
|
Speed range(rpm)
|
0-21000rpm adjustable
|
Speed accuracy
|
±10rpm
|
|
Max Capacity(ml)
|
4*750ml
|
RCF range (xg)
|
0-31554xg adjustable
|
|
Display
|
LCD
|
Time range
|
0-99minutes 59 s adjustable
|
|
Noise(dBA)
|
≦58dB(A)
|
Acceleration /Deceleration rates
|
1-- 10
|
|
Dimension(mm)
|
560x440x360mm
|
Motor
|
Frequency Converter motor
|
|
Net weight(without rotor)
|
50KGS
|
Power supply
|
AC220V,50HZ,10A,750W
|
ACCESSORIES
All rotors are autoclavable and customized.
|
No.
|
Rotor
|
Capacity
|
Max. speed
|
Max.RCF
|
Note
|
|
NO.1
|
Angle rotor
|
12×1.5/2.2ml
|
21000r/min |
31061xg |
PP/PC tube
|
|
|
Adapter
|
12×0.5/0.2ml
|
|
|
PP/PC tube
|
|
NO.2
|
Angle rotor
|
12×5ml
|
21000r/min
|
31554xg
|
PP/PC tube
|
|
|
Adapter
|
12×1.5ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
12×0.5/0.2ml
|
|
|
PP/PC tube
|
|
NO.3
|
Angle rotor
|
24×1.5/2.2ml
|
16000r/min
|
23800xg
|
PP/PC tube
|
|
|
Adapter
|
24×0.5/0.2ml
|
|
|
PP/PC tube
|
|
NO.4
|
Angle rotor
|
10×15ml
|
16000r/min
|
31197xg
|
PP/PC tube
|
|
|
Adapter
|
10×10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
10×5ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
10×1.5/0.5/0.2ml
|
|
|
PP/PC tube
|
|
NO.5
|
Angle rotor
|
48×1.5/2.2ml
|
15000r/min
|
23394xg
|
PP/PC tube
|
|
|
Adapter
|
48×0.5/0.2ml
|
|
|
PP/PC tube
|
|
NO.6
|
Angle rotor
|
12×10ml
|
15000r/min
|
24130xg
|
PP/PC tube
|
|
|
Adapter
|
12×5ml
|
|
|
PP/PC tube
|
|
NO.7
|
Angle rotor
|
6×50ml
|
15000r/min
|
22640xg
|
PP/PC tube
|
|
|
Adapter
|
6×15ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
6×10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
6×1.5ml
|
|
|
PP/PC tube
|
|
NO.8 |
Angle rotor
|
6×100ml
|
13000r/min |
20406xg |
PP/PC tube
|
|
|
Adapter
|
6×50ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
6×15ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
6×10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
6×5/1.5ml
|
|
|
PP/PC tube
|
|
NO.9
|
Angle rotor
|
8×50ml
|
13000r/min
|
20122xg
|
PP/PC tube
|
|
|
Adapter
|
8×15ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
8×10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
8×1.5ml
|
|
|
PP/PC tube
|
|
NO.10
|
Swing bucket
|
4×250ml
|
4000r/min
|
3130xg
|
Round cup
|
|
|
Adapter
|
4×9×5/2ml
|
|
|
Vacuum blood collection tube
|
|
|
Adapter
|
4×5×15/10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×1×50ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×1×100ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×9×1.5ml
|
|
|
PP/PC tube
|
|
NO.11
|
Swing bucket
|
4×400ml
|
4000r/min
|
3130xg
|
Square cup
|
|
|
Adapter
|
4×16×5/2ml
|
|
|
Vacuum blood collection tube
|
|
|
Adapter
|
4×9×15/10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×4×50ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×1×100ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×15×1.5ml
|
|
|
PP/PC tube
|
|
NO.12
|
Swing bucket
|
4×500ml
|
4000r/min
|
3309xg
|
Round cup
|
|
|
Adapter
|
4×17×5/2ml
|
|
|
Vacuum blood collection tube
|
|
|
Adapter
|
4×8×15/10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×3×50ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×1×100ml
|
|
|
PP/PC tube
|
|
NO.13
|
Swing bucket
|
4×600ml
|
4000r/min |
3309xg |
Square cup
|
|
|
Adapter
|
4×25×5/2ml
|
|
|
Vacuum blood collection tube
|
|
|
Adapter
|
4×12×15/10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×5×50ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×4×100ml
|
|
|
PP/PC tube
|
|
NO.14
|
Swing bucket
|
4×750ml
|
4000r/min
|
3578xg
|
Round cup
|
|
|
Adapter
|
4×26×5/2ml
|
|
|
Vacuum blood collection tube
|
|
|
Adapter
|
4×13×15/10ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×5×50ml
|
|
|
PP/PC tube
|
|
|
Adapter
|
4×3×100ml
|
|
|
PP/PC tube
|
|
NO.15 |
MTP swing-out rotor
|
2×2×96 well
|
4200r/min |
3057xg |
Square cup
|
|
|
Adapter
|
2×32×1.5ml
|
|
|
PP/PC tube
|
Application
Laboratory centrifuges are widely used in medical, beauty, dental hospital, chemical, food, pharmaceutical,environmental protection, scientific research and other fields.
